CHAPTER 5: SETTINGS FLEXLOGIC
M60 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL 5-187
5

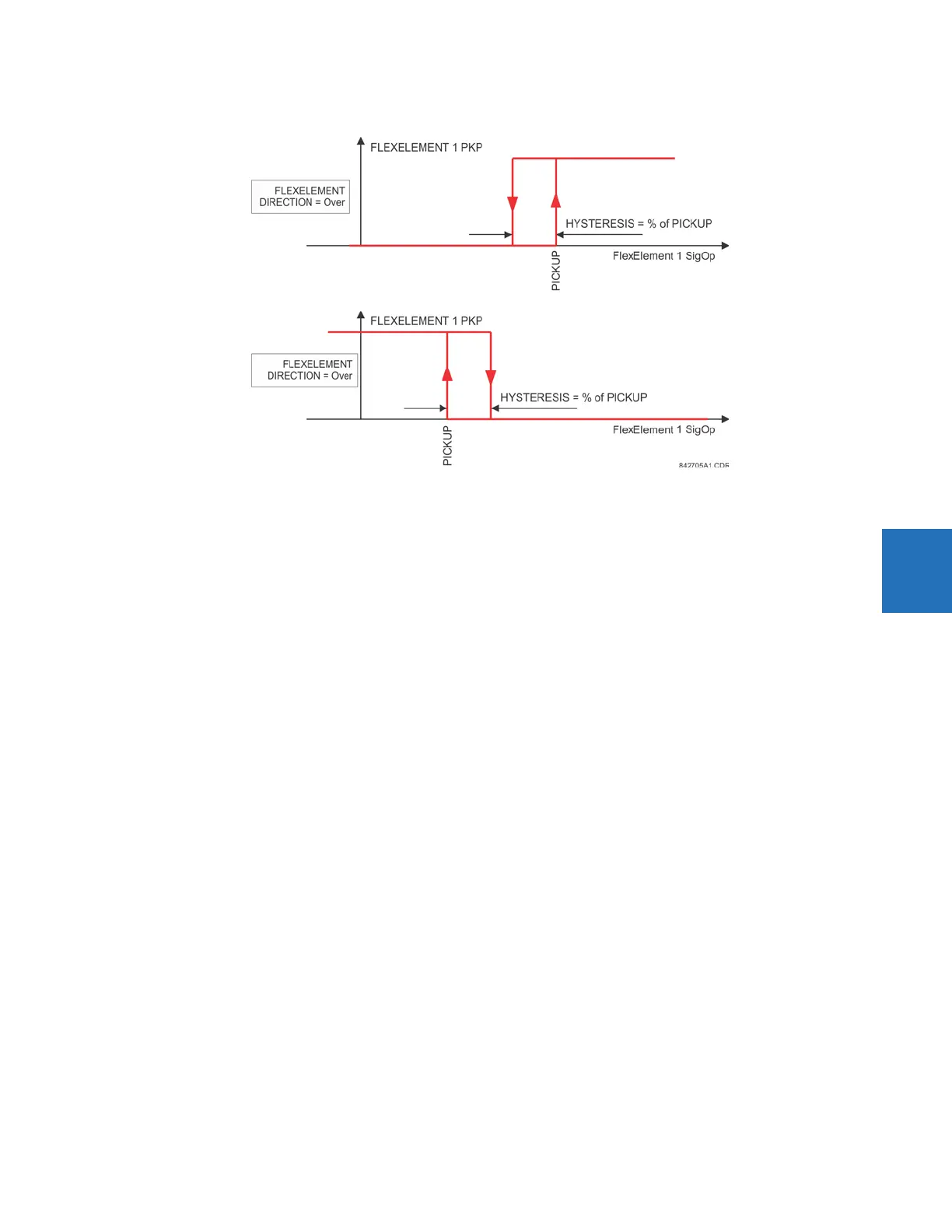

Figure 5-95: FlexElement direction, pickup, and hysteresis
In conjunction with the
FLEXELEMENT 1 INPUT MODE setting, the element can be programmed to provide two extra
characteristics, as shown in the following figure.
