10-18 M60 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL
REPLACE FRONT PANEL CHAPTER 10: MAINTENANCE
10

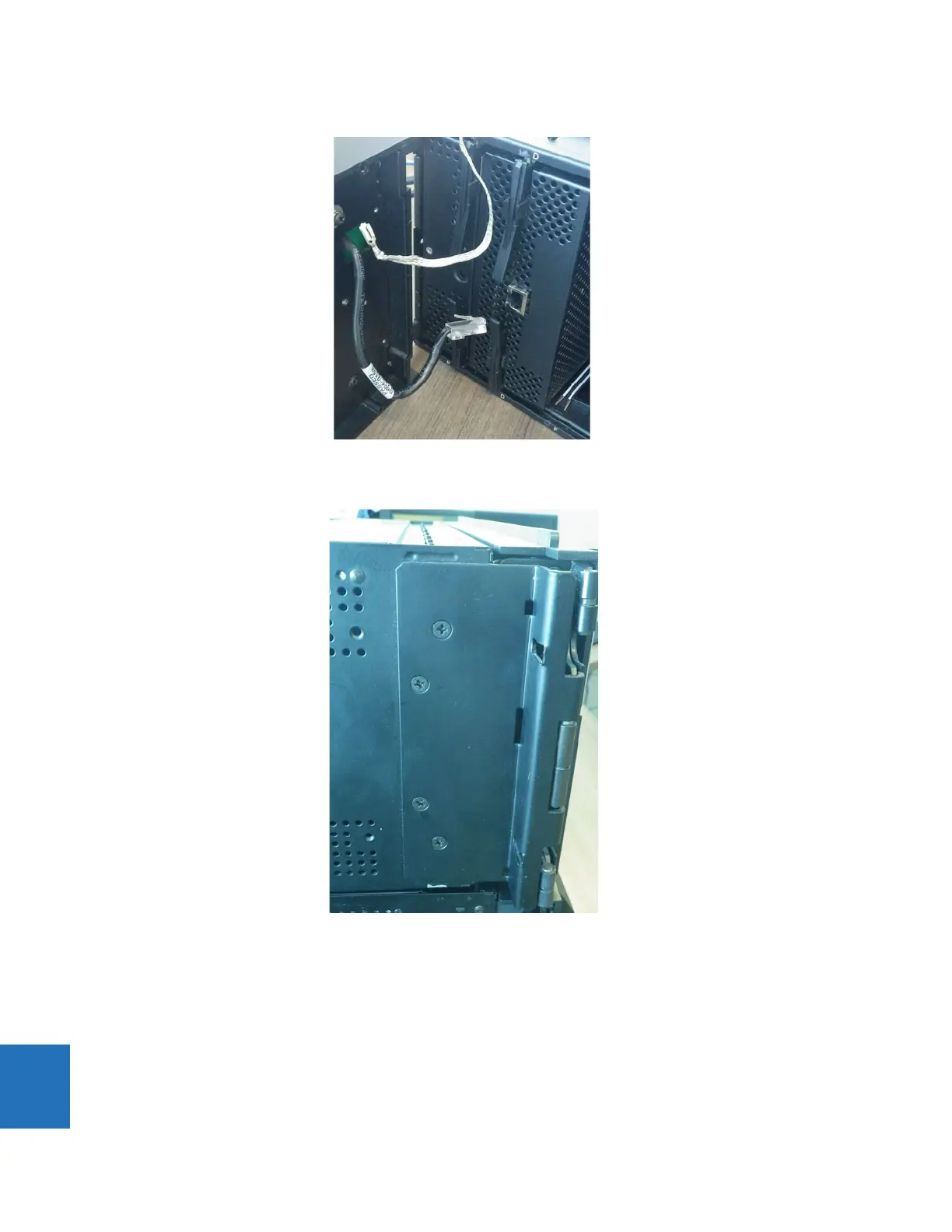

Figure 10-16: Disconnected ground cable and CPU connector
6. Unscrew and remove the mounting bracket with the front panel from the left side.
Figure 10-17: Unscrew enhanced front panel mounting bracket on left side
Figure 10-18: Unscrew standard front panel mounting bracket on left side
