CHAPTER 3: INSTALLATION WIRING
M60 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL 3-21
3

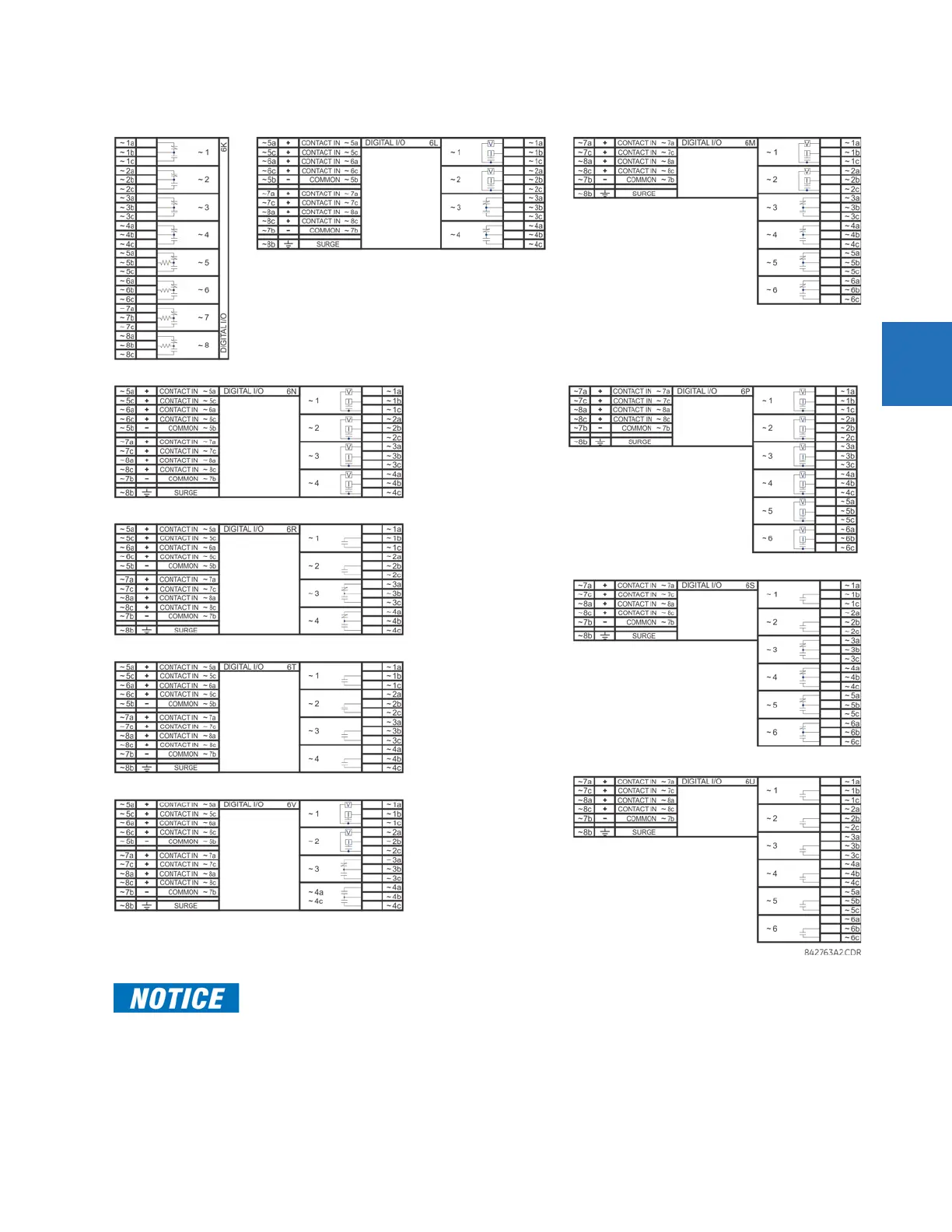

Figure 3-18: Contact input and output module wiring (Sheet 2 of 2)
For proper functionality, observe the polarity shown in the figures for all contact input and output
connections.
