Chapter 5. Diagnostics

114 PACSystems* RX3i & RSTi-EP PROFINET IO-Controller User Manual GFK-2571N

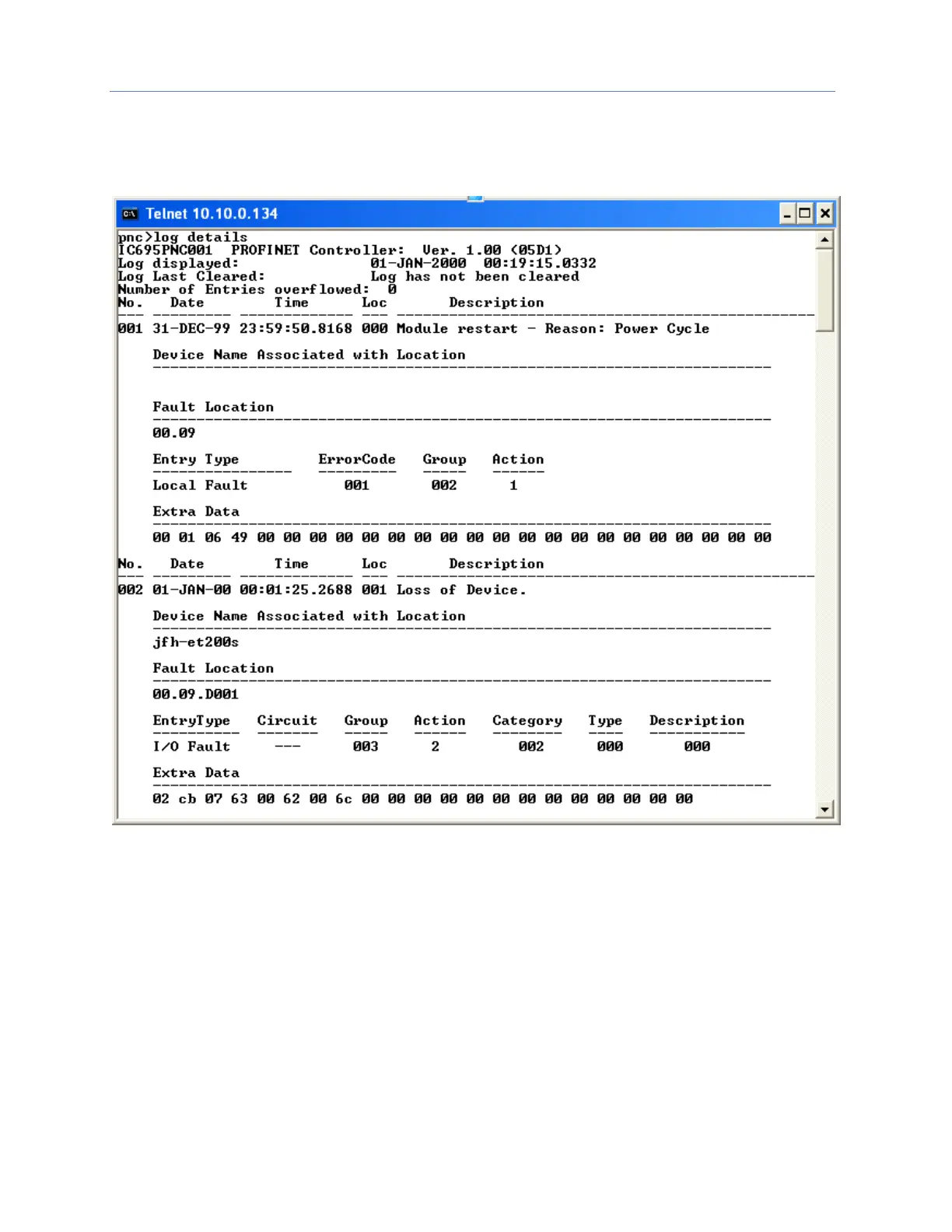

The command log details provides more information (Figure 96) about all the entries in the Local Log, including

the Device Names of remote devices that have log entries. For each PACSystems RX3i CPU, there is a one-to-

one correspondence between Device Names and Device Numbers.

Figure 96: Log Details Display
