Chapter 1. Introduction

16 PACSystems* RX3i & RSTi-EP PROFINET IO-Controller User Manual GFK-2571N

1.6.2 Basic System: One RX3i CPU and One PROFINET Controller using

a single port

Figure 6 shows a basic system with one PACSystems RX3i CPU node having one PROFINET Controller, and one

PROFINET network with three VersaMax Scanners and one third-party IO-Device. Up to 128 IO-Devices can be

installed on an RX3i PROFINET network. The VersaMax PNS and many types of third-party IO-Devices interface

multiple devices such as I/O modules to the PROFINET network.

IO-Device 1

IO-Device 2

IO-Device 64

Party

IO-Device 3

RX3i CPU Node with

PROFINET Controller

PROFINET IO LAN

. . .

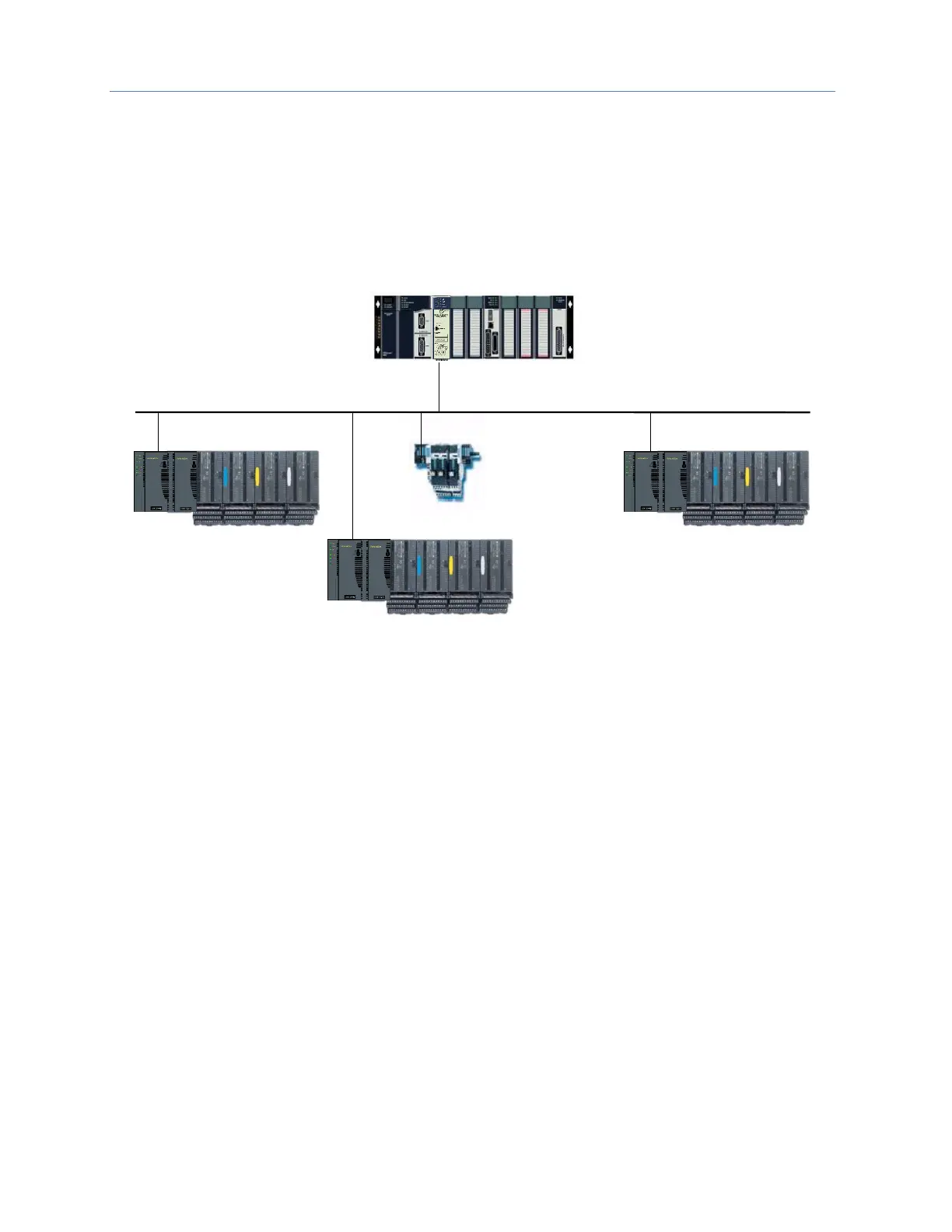

Figure 6: RX3i System with one PROFINET Controller and one PROFINET LAN
