Chapter 2. Installation

GFK-2571N May 2018 39

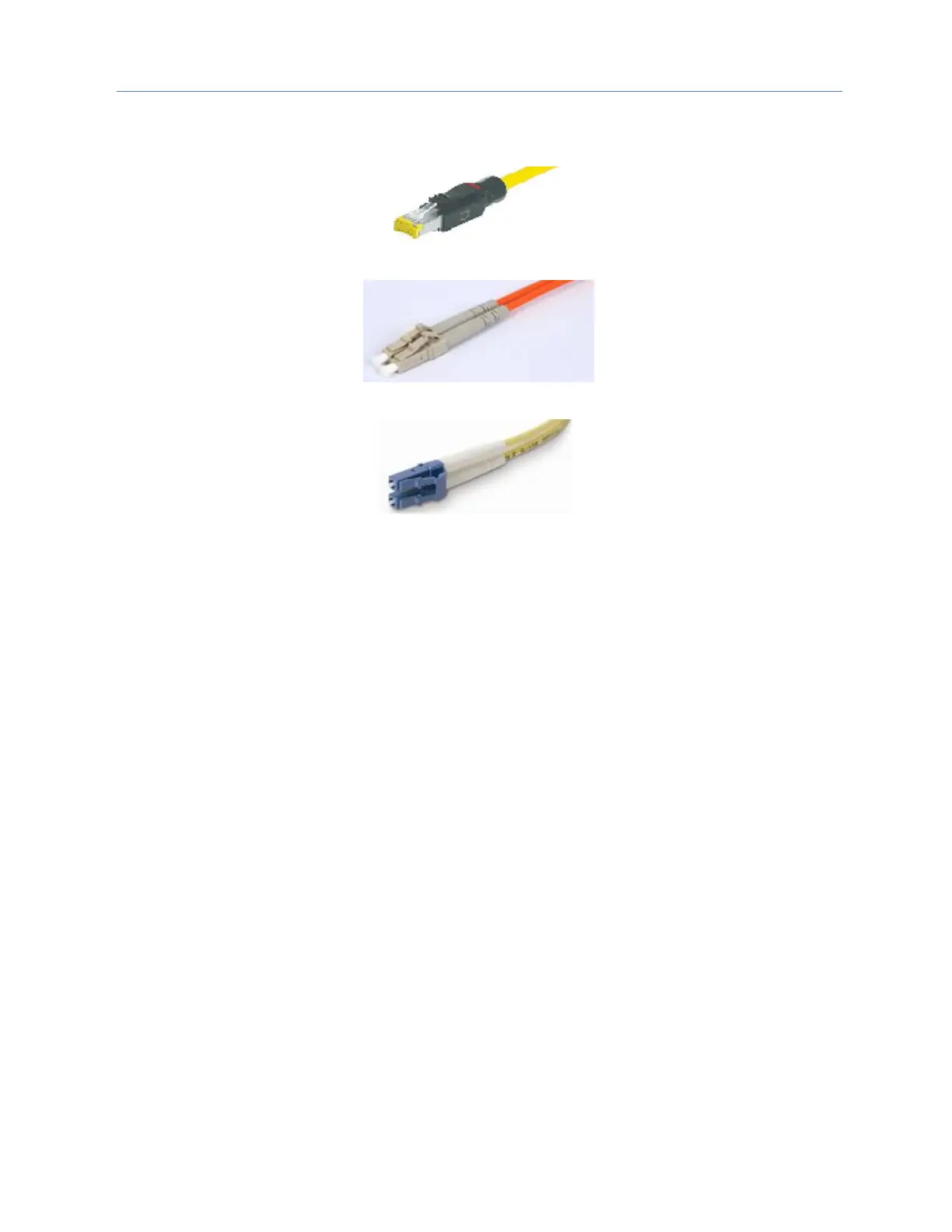

2.7.2.2 Network Cabling and Connector Examples

Figure 25: CAT5e/CAT6 (shielded or unshielded) with RJ 45 Connector

Figure 26: Multi-Mode Fiber with LC connector

Figure 27: Single-Mode Fiber with LC connector
