Chapter 3. Configuration

GFK-2571N May 2018 69

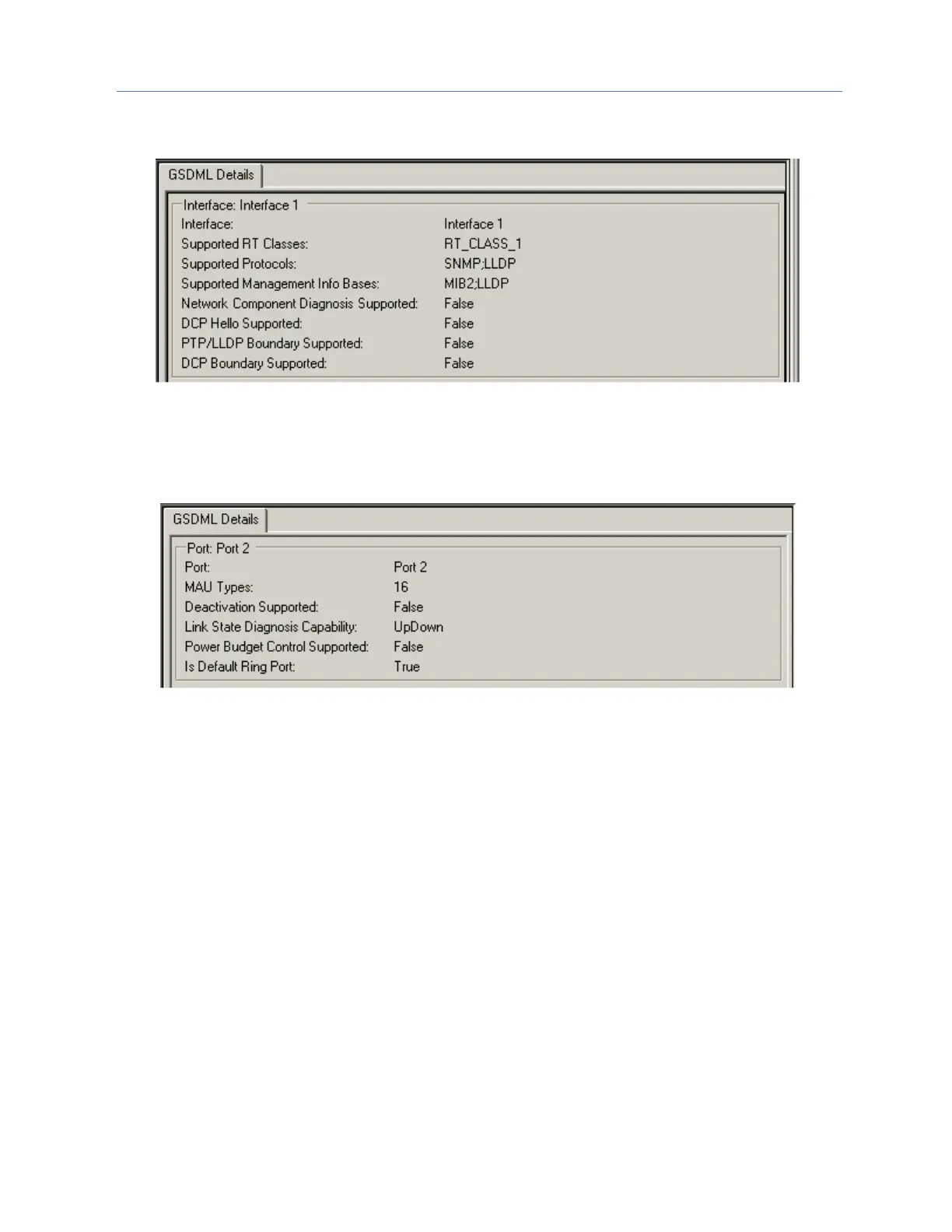

Double-clicking on the PNS module’s Interface 1 icon in the Navigator displays additional GSDML parameters:

Figure 61: PNS Interface Parameter Details

Double-clicking on the PNS module’s Port 1 and Port 2 icons in the Navigator also displays additional GSDML

parameters for the scanner:

Figure 62: PNS Port Parameter Details
