4-8 Section 4-4 - Functional Checks
4-4-1 2D Mode Checks

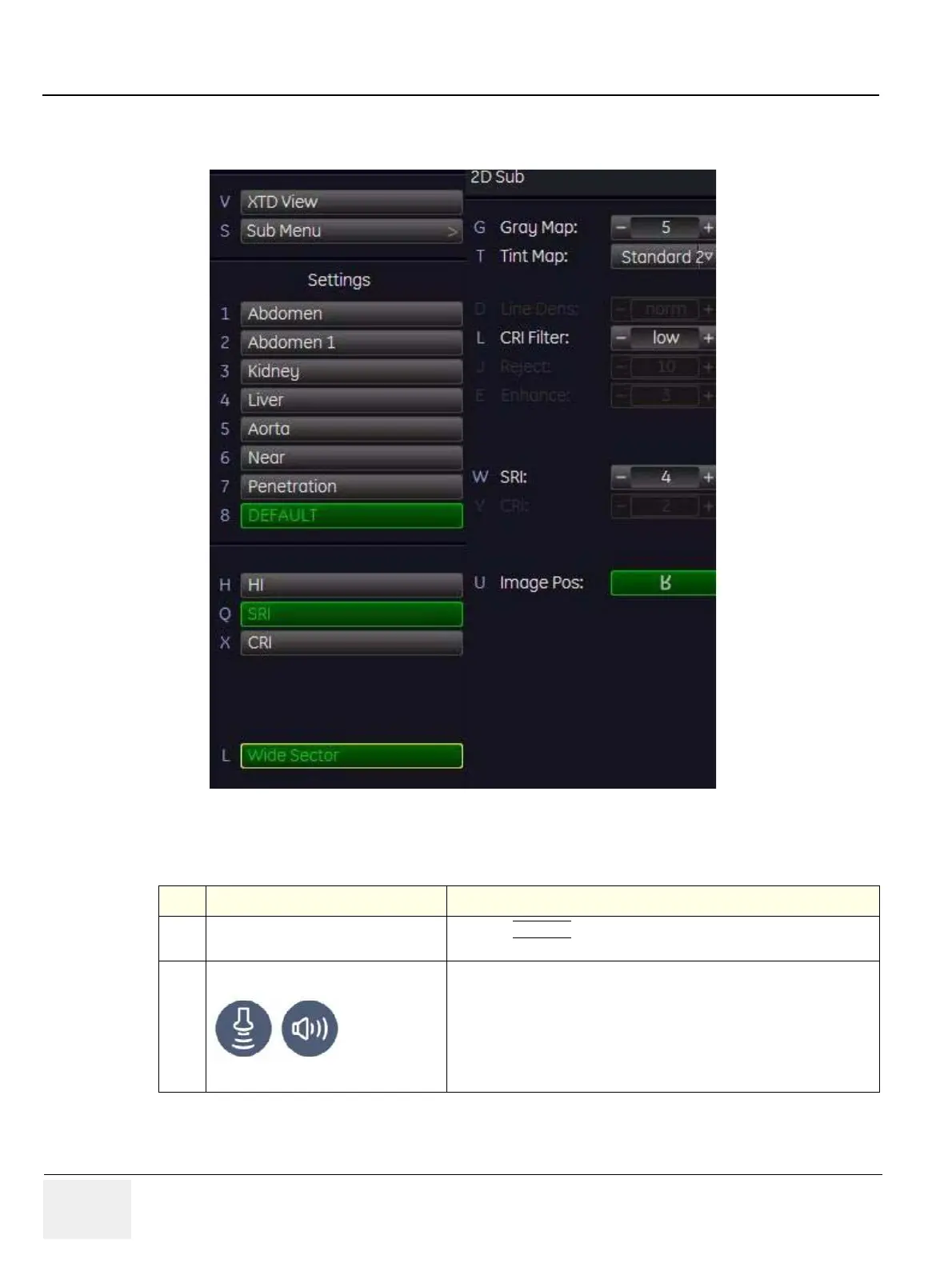

Figure 4-7 2D Main and 2D Sub Menu
Table 4-3 2D Mode Functions
Step Task Expected Results
1
2D Mode Gain
Rotate the 2D MODE
key to adjust the sensitivity (brightness) of the entire
image.
2
Transmit Power &
Acoustic Output of speakers
Transmit Power:
Optimizes image quality and allows user to reduce beam intensity.
push/dial Toggle control
Acoustic Output:
Adjustment of the Audio level of the speakers.
