GE Voluson P8 - Section 8-34 Replacement of the CSI; 8-34-1 Manpower; 8-34-2 Preparations; 8-34-3 Removal Procedure

GE HEALTHCAREDRAFT VOLUSON® P8 / VOLUSON® P6
DIRECTION 5459672-100, R
EVISION 6 DRAFT (JANUARY 17, 2013) PROPRIETARY SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-75
Section 8-34
Replacement of the CSI
8-34-1 Manpower
One person, 30 minutes
8-34-2 Preparations
1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.
8-34-3 Removal Procedure
1.) Unscrew 4 screws to remove the LED Indicator bracket.
2.) Unscrew 4 screws to remove CSI board and Separate the LED connector and FAN connector.

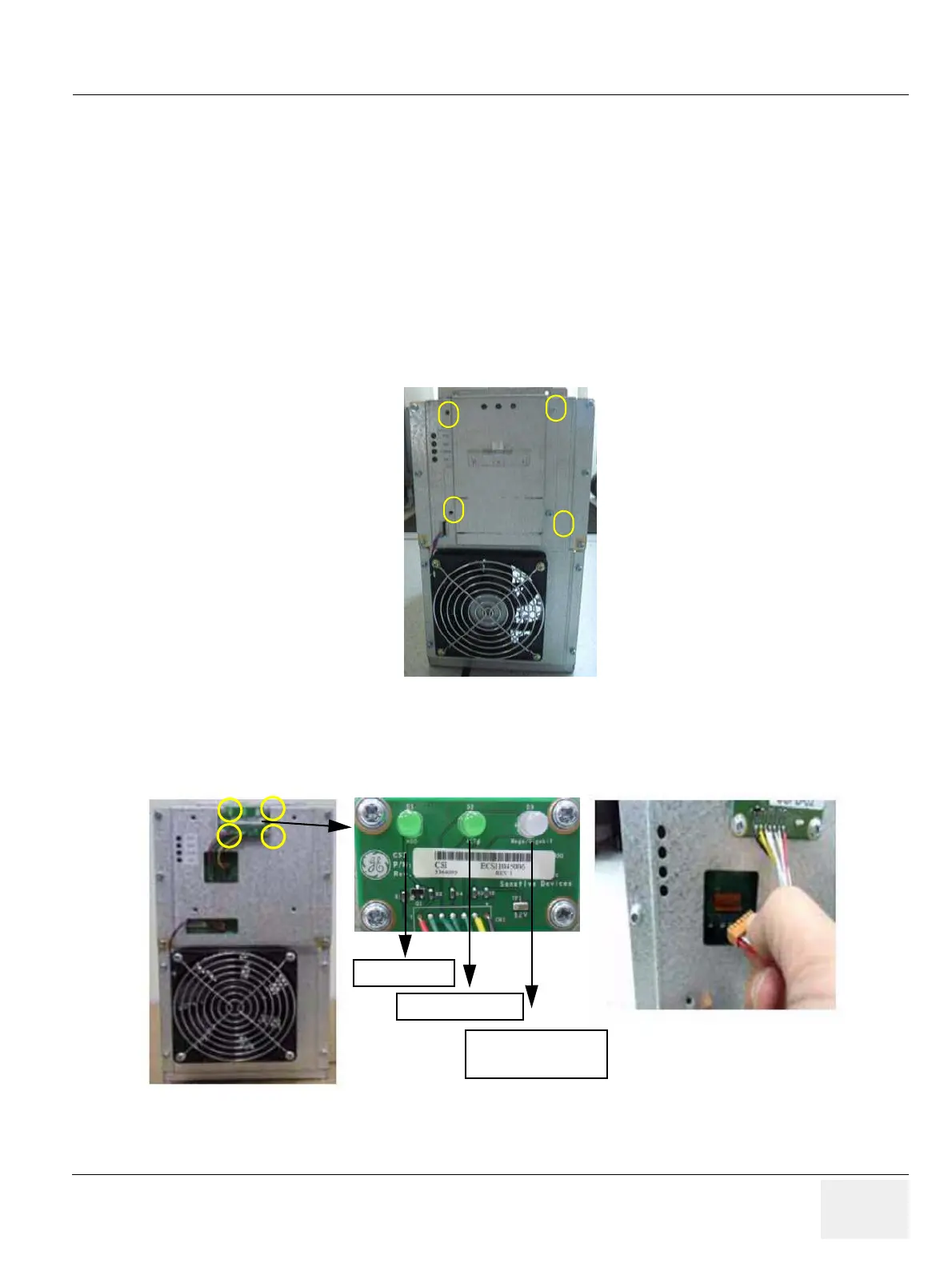

Figure 8-90 Opening the rear bracket
Figure 8-91 Seperating LEC connector/FAN connector
HDD Status
Network Status
Network Speed
Orange: Megabit
