GE Voluson P8 - Section 8-10 Replacement of the MONITOR STAND ARM; 8-10-1 Manpower; 8-10-2 Tools; 8-10-3 8-9-3 Removal Procedure

GE HEALTHCAREDRAFT VOLUSON® P8 / VOLUSON® P6
DIRECTION 5459672-100, R
EVISION 6 DRAFT (JANUARY 17, 2013) PROPRIETARY SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-23
Section 8-10
Replacement of the MONITOR STAND ARM
8-10-1 Manpower
Two persons, 20 minutes
8-10-2 Tools
Philips screwdriver, Nipper, Allen Wrench
8-10-3 8-9-3 Removal Procedure
1.) Disassemble the LCD MONITOR. Refer to the section 8-8 Replacement Procedure of
MONITOR.

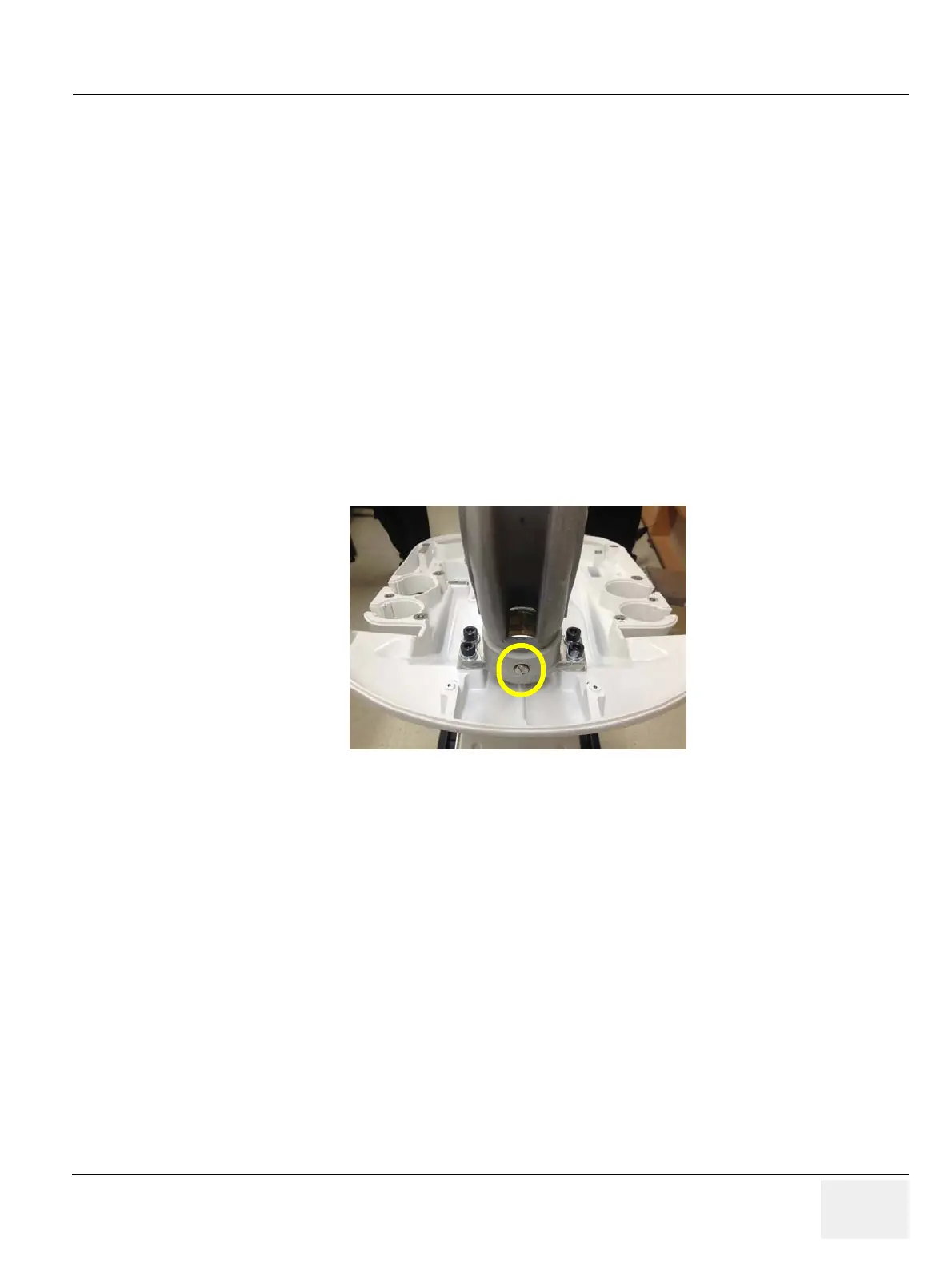

2.) Remove the LCD ARM assembly. Refer to the figure below.
3.)
4.)
8-10-4 Installation Procedure
1.) Install the new parts in the reverse order of removal.
2.) Perform: FRU8-9: Replacement of the MONITOR STAND ARM - Functional Tests.
