GE Voluson P8 - 5-10-1-2 Power Distribution Block Diagram

To Next Page

To Previous Page

GE HEALTHCARERAFT VOLUSON® P8 / VOLUSON® P6

DIRECTION 5459672-100, R

EVISION 6 DRAFT (JANUARY 17, 2013) PROPRIETARY SERVICE MANUAL

5-40 Section 5-10 - Power Distribution

5-10-1-2 Power Distribution Block Diagram

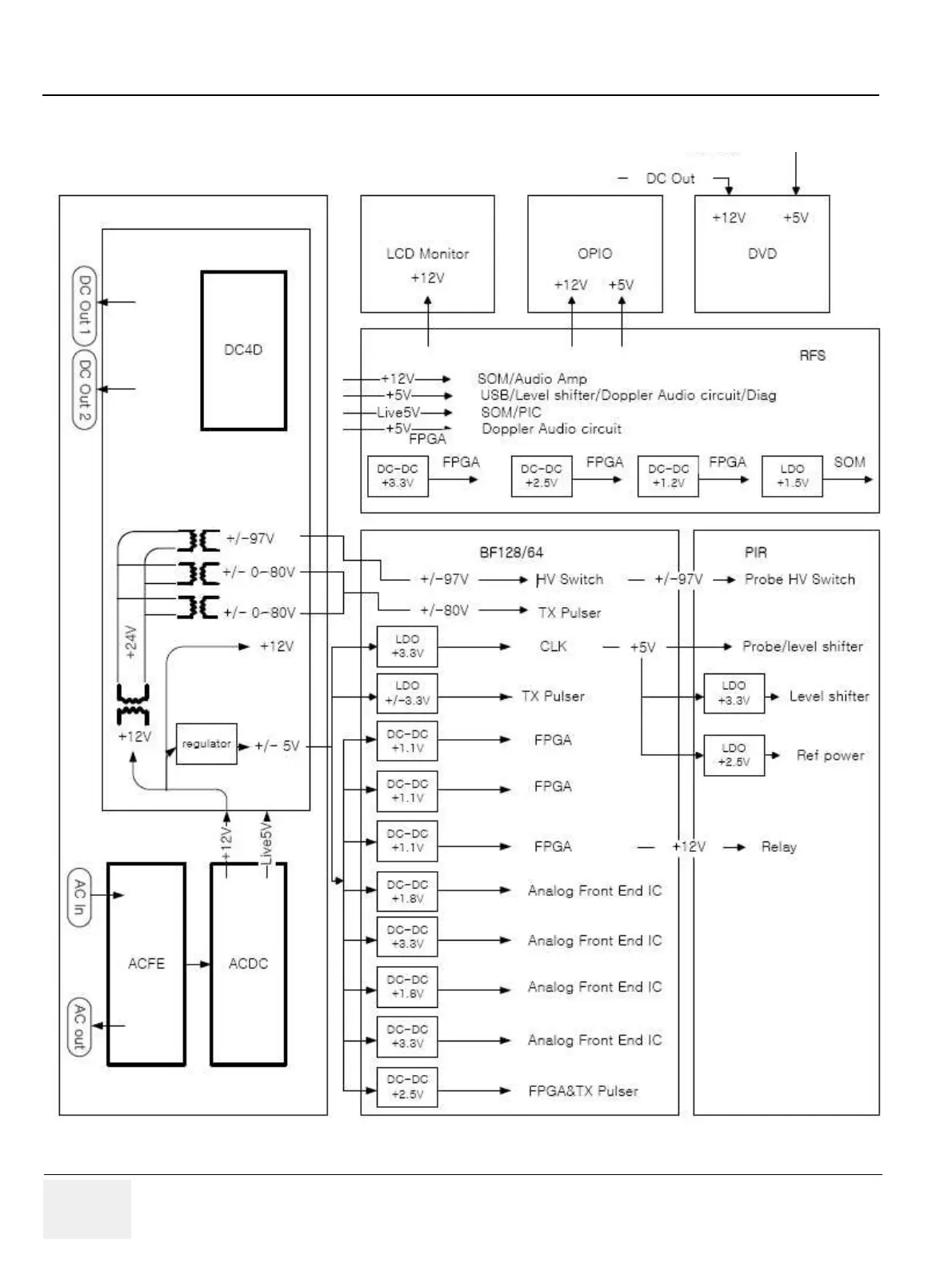

Figure 5-20 CPS Block Diagram
