GE Voluson P8 - 5-3-1 PIR - Probe Interface board

To Next Page

To Previous Page

GE HEALTHCAREDRAFT VOLUSON® P8 / VOLUSON® P6

DIRECTION 5459672-100, R

EVISION 6 DRAFT (JANUARY 17, 2013) PROPRIETARY SERVICE MANUAL

Chapter 5 - Components and Functions (Theory) 5-21

5-3-1 PIR - Probe Interface board

Switches the Probe Connectors (3 RS -Connectors) and recognizes Probes

• 3 RS-Probe Connectors

• Probe Select Relays

• Probe Recognition

For Block diagrams refer to:

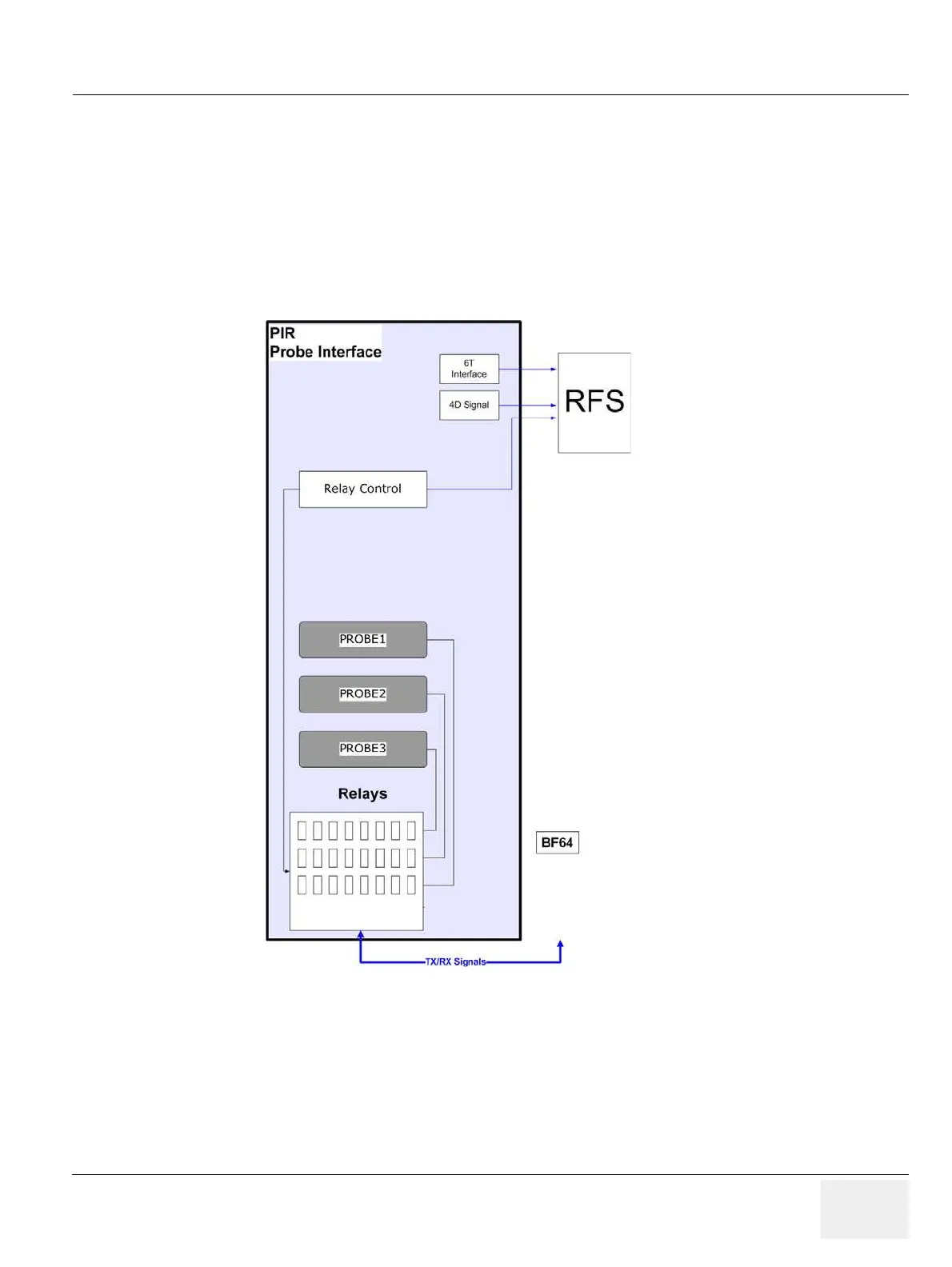

- Figure 5-7: PIR - Blockdiagram

Figure 5-7 PIR - Blockdiagram
