GE Voluson P8 - 8-41-3-2 Color Printer Assembly

GE HEALTHCAREDRAFT VOLUSON® P8 / VOLUSON® P6
DIRECTION 5459672-100, R
EVISION 6 DRAFT (JANUARY 17, 2013) PROPRIETARY SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-95
8-41-3-2 Color Printer Assembly
1.) Assemble 2 EMI gaskets (5448934 - EMI gasket, side, b-w printer bkt-3) on printer base plate.
2.) Assemble 2 EMI gaskets (5448934 - EMI gasket, side, b-w printer bkt-3) on printer base plate.
3.) Assemble 2 EMI gaskets (5457475 - EMI gasket, side, b-w printer bkt-1) on printer base plate.
4.) Assemble printer base pate with B/W printer using 8 screws (2306562-screw FH M3 x 6).

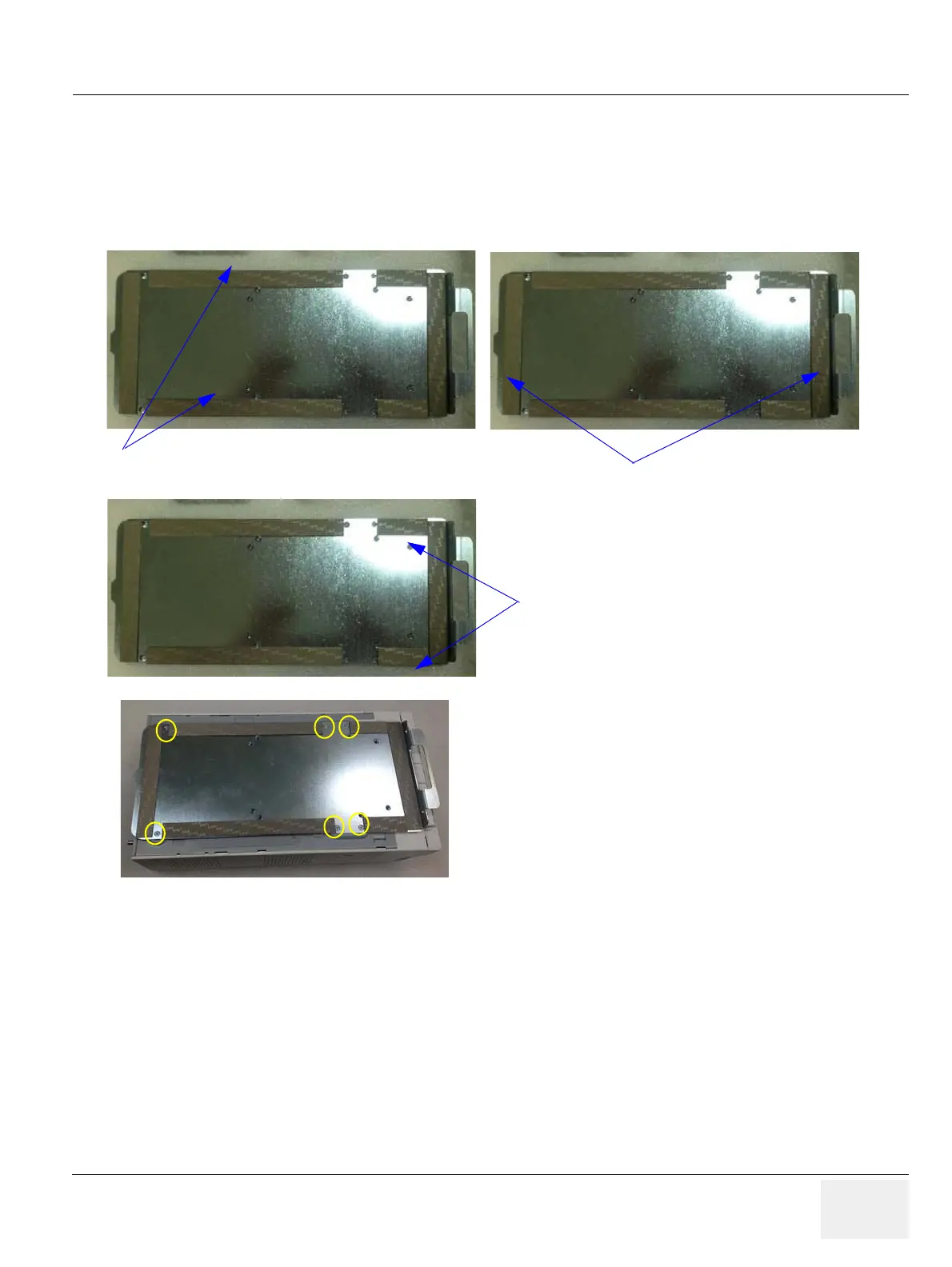

Figure 8-116 Color Printer assembly
EMI Gaskets (5448934)
EMI Gaskets (5447303)
EMI Gaskets (5457475)
