1-12 Section 1-3 - Safety Considerations

1-3-6-2 UL Label

The UL label is located on the rear of the system.

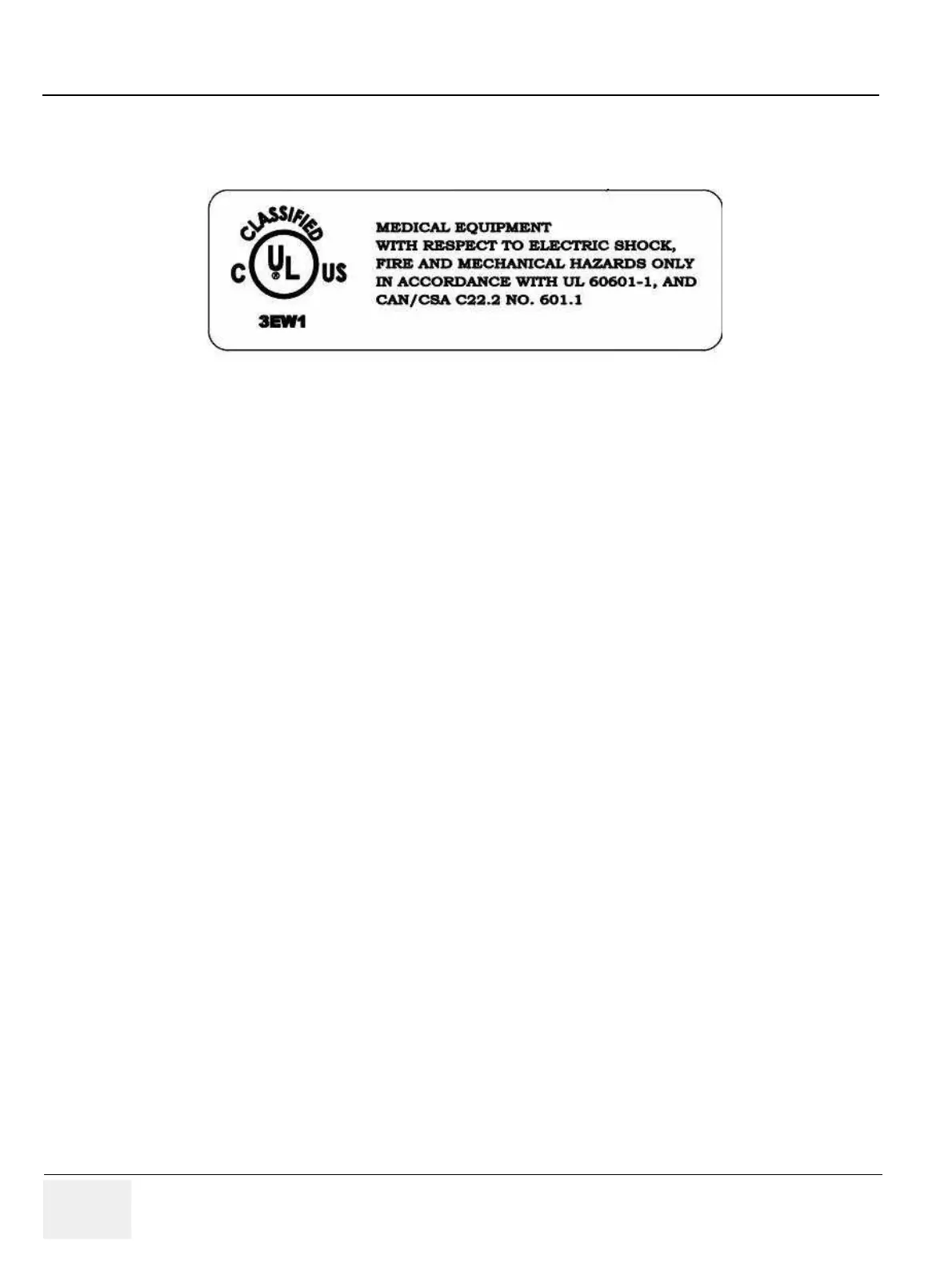

Figure 1-3 UL Label
