GE Voluson P8 - 7-9-6 Automatic Diagnostic Test.

GE HEALTHCAREDRAFT VOLUSON® P8 / VOLUSON® P6
DIRECTION 5459672-100, R
EVISION 6 DRAFT (JANUARY 17, 2013) PROPRIETARY SERVICE MANUAL
Chapter 7 - Diagnostics/Troubleshooting 7-39
7-9-6 Automatic Diagnostic Test.
Automatic diagnostic test can be performed by selecting the desired test item from "Automatic Test
Selection Box"
1.) Select the desired test item from "Selection Combo Box" in Diagnostics Tool window.
2.) Select the desired execution loop count from "Test Loop Count" button.
3.) Execute the diagnostic test by selecting the RUN TEST button.
4.) Then it displays the test result (PASSED or FAILED) at the end of each diagnostic test.
Each test item is categorized by its functionality, and grouped.
Whenever executing the diagnostic test from System Diagnostics Tool, its execution log message will
be displayed in Log Window, and saved also in log file located in D:\Export\diagnosis.txt with execution
time-stamp.
Overall Test like "RFS - Overall Test" means that it executes sub-diagnostic test items one by one
automatically.
Table 7-2 below outlines Voluson® P8 / Voluson® P6 Diagnostics Tool described in the sub-sections.

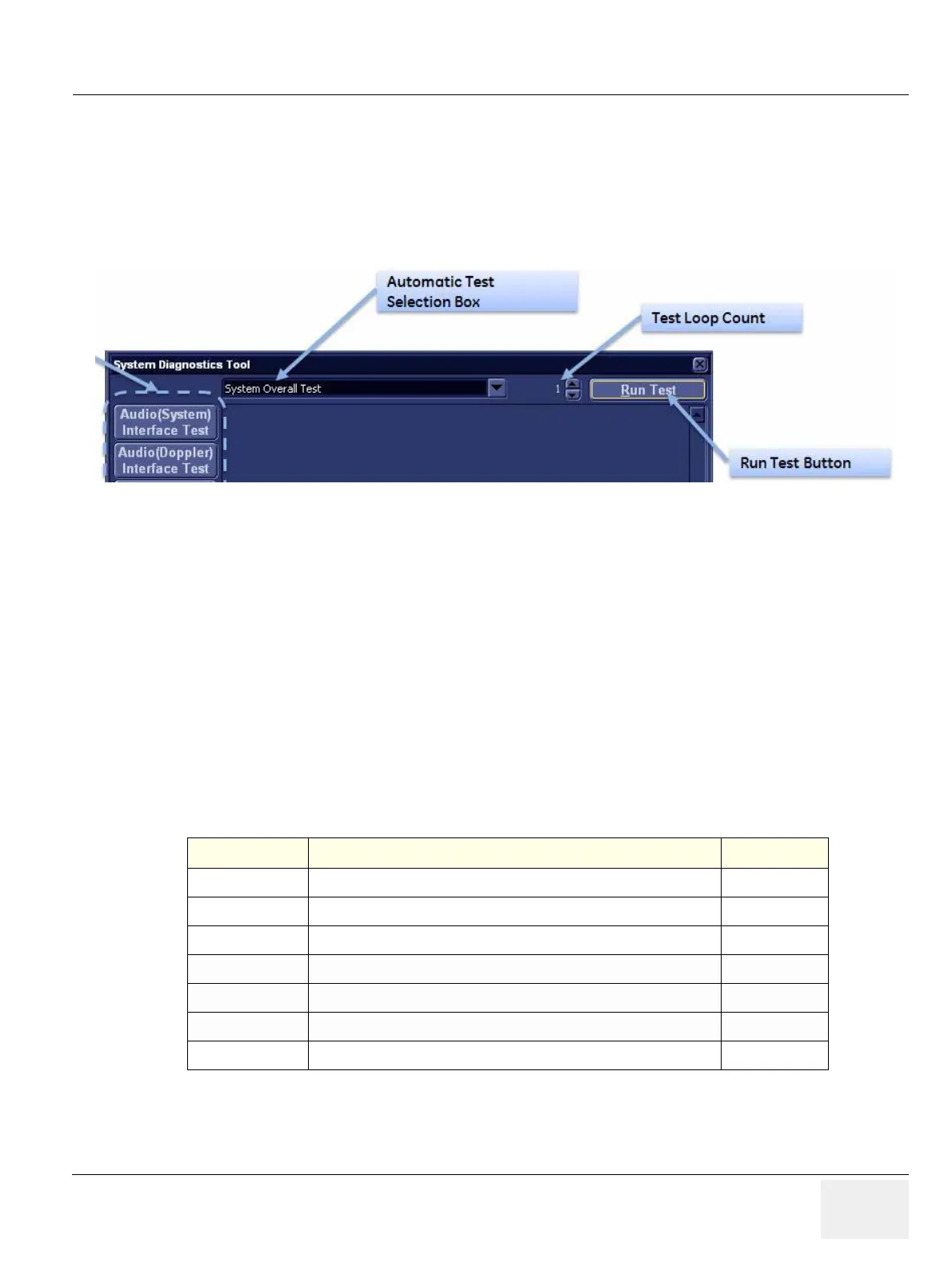

Figure 7-47 Automatic Test Selection Box
Table 7-2 Automatic diagnostic Test
Sub-section Description Page Number
7-9-6-1
System Overall Test
7-40
7-9-6-2
RFS Overall Test
7-40
7-9-6-3
BF (Beamformer) Overall Test
7-42
7-9-6-4
PIR Overall Test
7-43
7-9-6-5
CPS Overall Test
7-43
7-9-6-6
DC4D Overall Test
7-44
7-9-6-7
Channels Overall Test
7-44
