8-24 Section 8-11 - Replacement of OPIO
Section 8-11
Replacement of OPIO
8-11-1 Manpower
One person, 15 minutes
8-11-2 Tools
Philips screwdriver, Nipper, Allen Wrench
8-11-3 Preparations
1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.
8-11-4 Removal Procedure

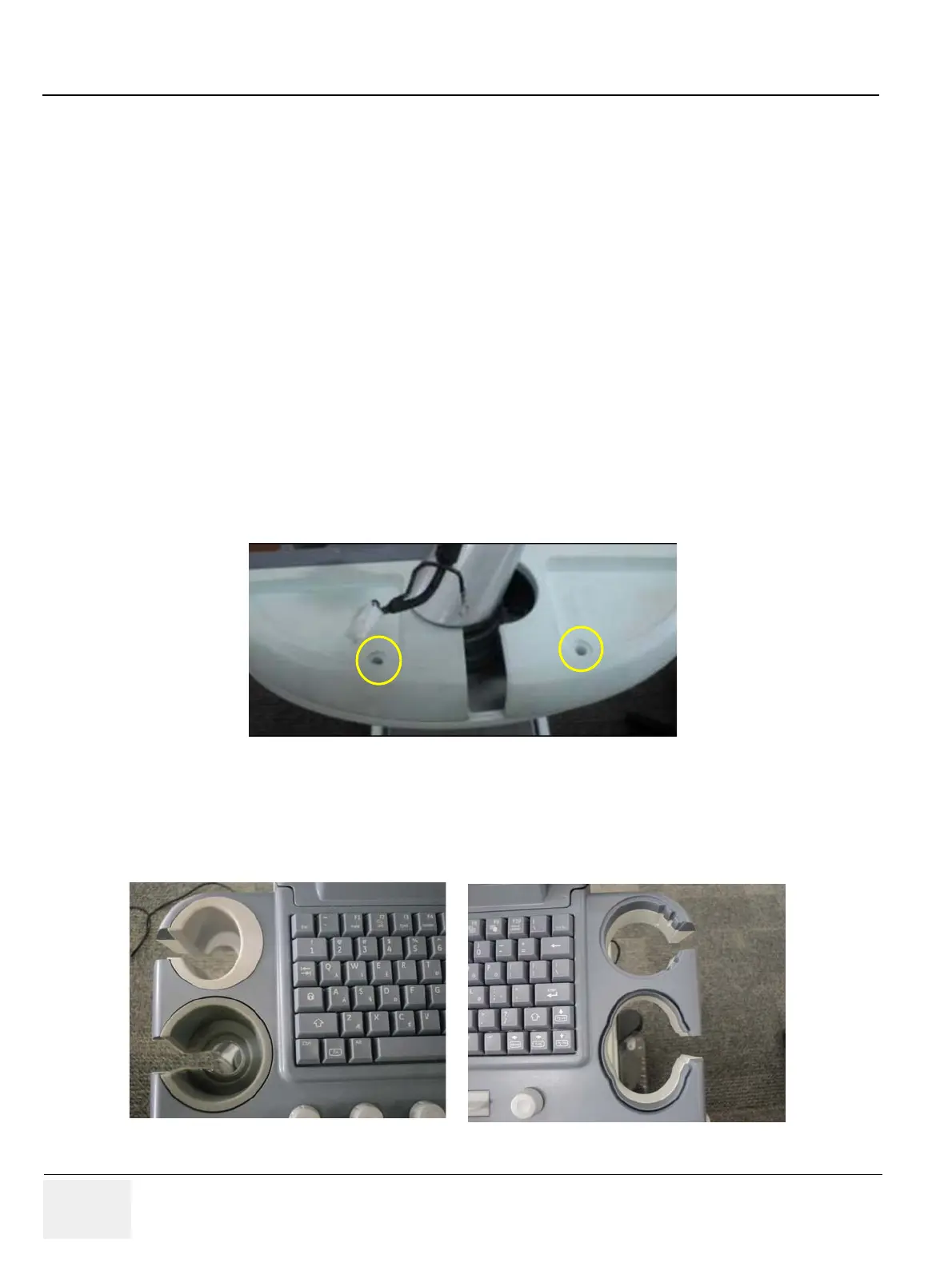

1.) Remove 2 screws from the OPIO COVER. Refer to the figure below.
2.) Remove 4 PROBE HOLDERS from the OPIO.
Figure 8-24 Removing the RUBBER CAPS
Figure 8-25 Removing the 4 PROBE HOLDERS
