Chapter 5 - Components and Functions (Theory) 5-27

- Control DVD drive (SATA), User Interface (USB), DVR (USB)

5-4-3 DVR - Digital Video Recorder (option)

For further details see: Section 5-9-1-1 "DVD Recorder" on page 5-37.

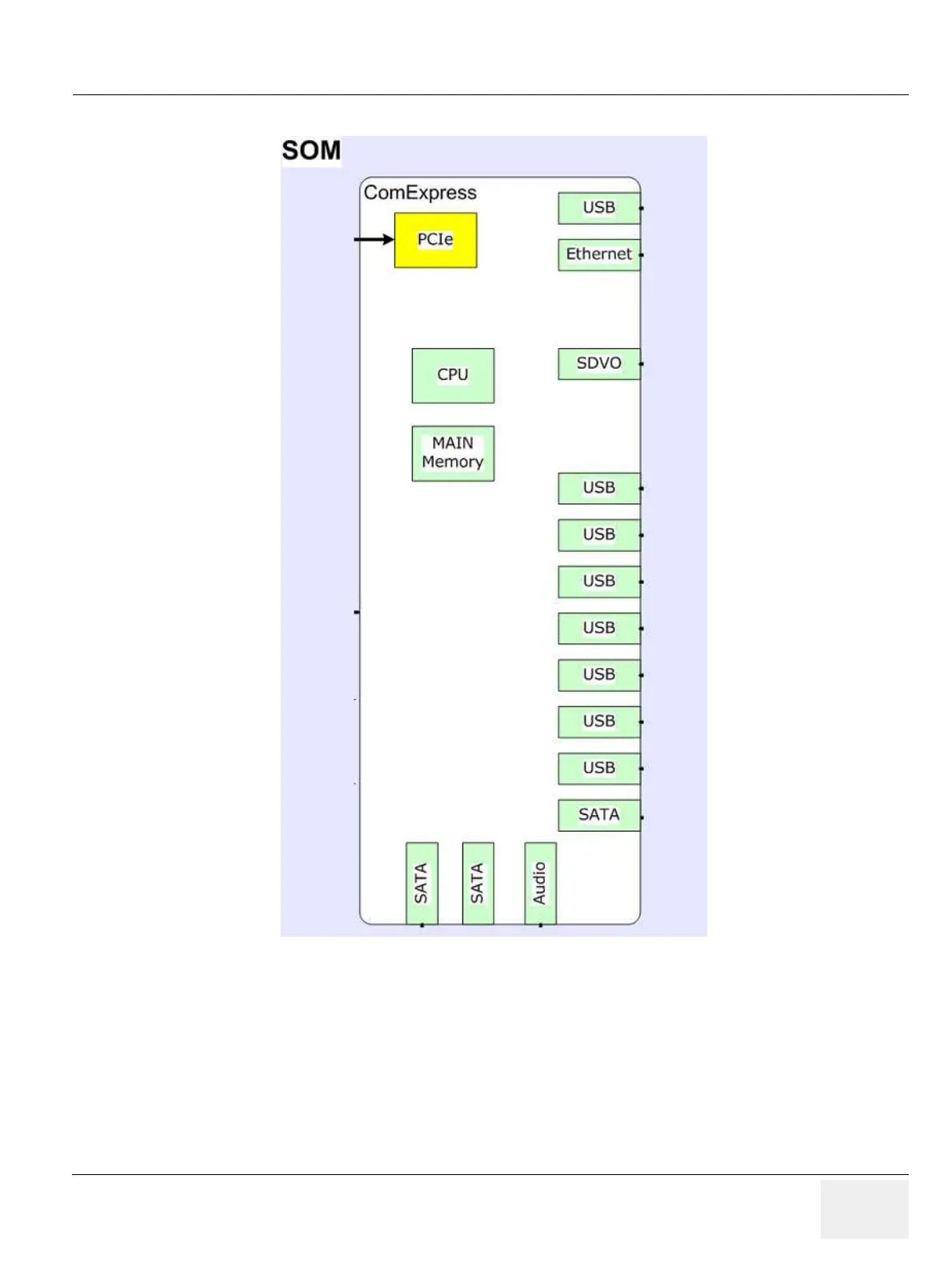

Figure 5-11 SOM (System On Module)
