ActionStep

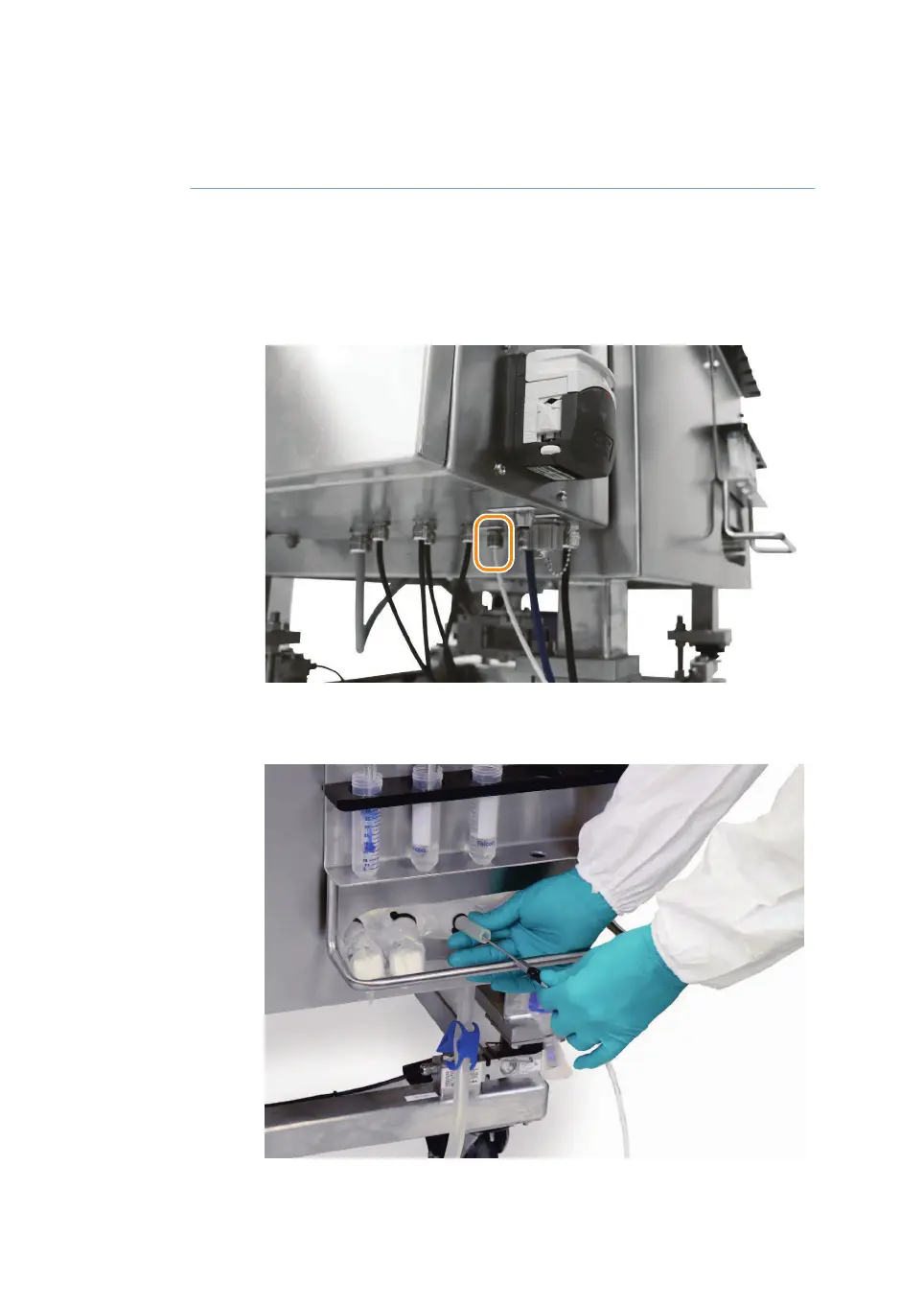

Connect the temperature probe connector to the TT-161 cable that is at-
tached to the underside of the I/O Cabinet.
Note:
The connectors and labels on your instrument may differ from the configura-
tion shown below.
2
Carefully insert the temperature probe into the thermowell.3
180 Xcellerex XDM 50-1000, XDUO 100-1000 mixers Operating Instructions 29251615 AD
6 Preparation
6.4 Prepare and install the probes
6.4.4 Insert probes into the disposable bag
