Commissioning
Basics of commissioning
7160-9001-560
01. December 2020
30 / 74

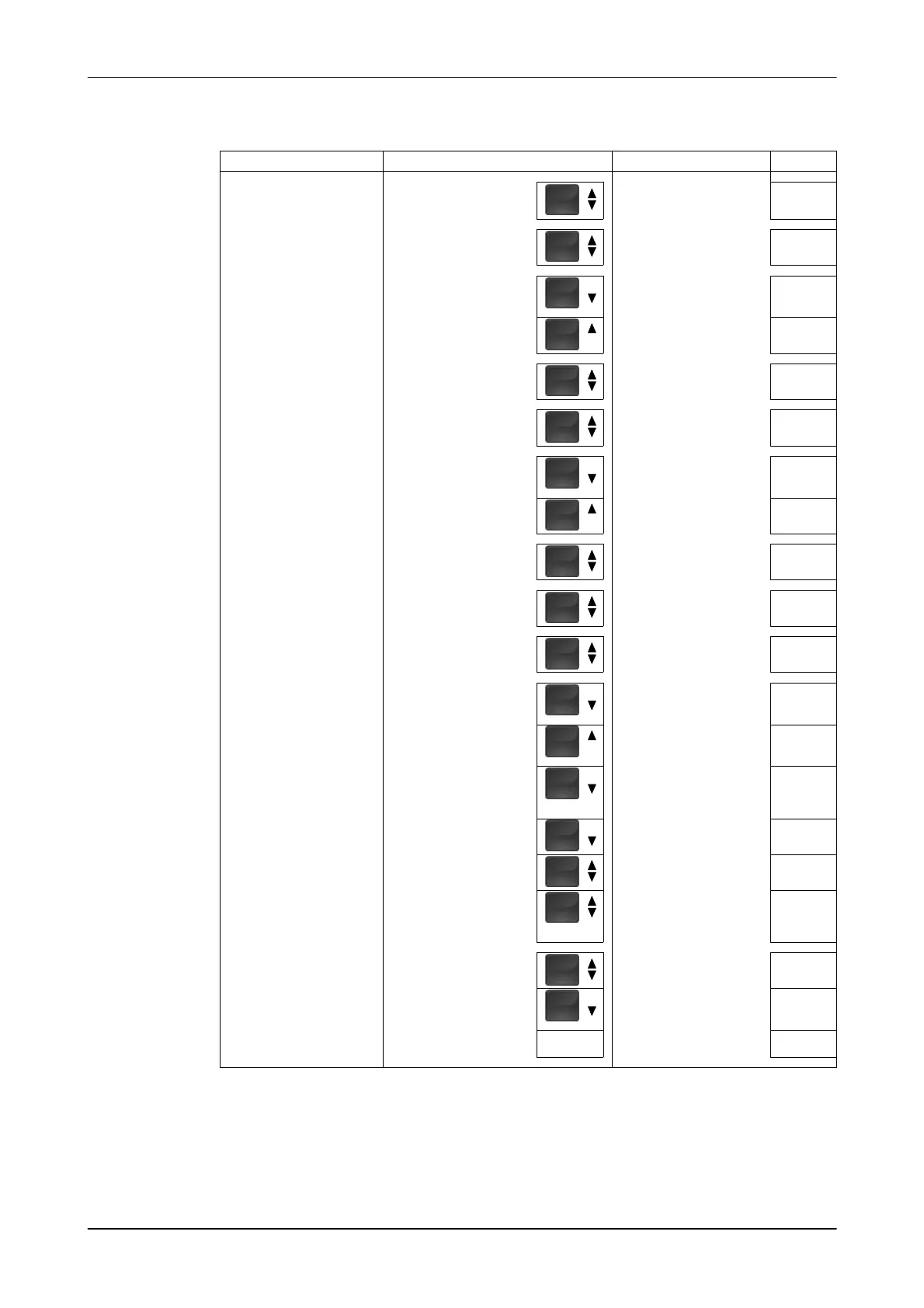

Application example
Change the IP address from 192.168.1.100 to 192.168.1.101.
Action Pressing the keys Response Display
1. Call up menu ● Keystroke
(short)
The display shown
appears
ad
2. Scroll through the
menu (↓)
● Keystroke
(short)
The display shown
appears
IP
3. Switch to a
different menu
level (→)
● Keystroke
(long)
Display flashes
IP
(flashes)
● Release key The display shown
appears
dh
4. Scroll through the
menu (↓)
● Keystroke
(short)
The display shown
appears
di
5. Scroll through the
menu (↓)
● Keystroke
(short)
The display shown
appears
Si
6. Switch to a
different menu
level (→)
● Keystroke
(long)
Display flashes
Si
(flashes)
● Release key The display shown
appears
n1
7. Scroll through the
menu (↓)
● Keystroke
(short)
The display shown
appears
n2
8. Scroll through the
menu (↓)
● Keystroke
(short)
The display shown
appears
n3
9. Scroll through the
menu (↓)
● Keystroke
(short)
The display shown
appears
n4
10 Change the
address range
● Keystroke
(long)
Display flashes
n4
(flashes)
● 1st digit ● Release key 1st digit is displayed
_1
(flashes)
● 2nd digit ● Keystroke
(long)
2nd and 3rd digits are
displayed
The left digit flashes
00
(flashes)
● 3rd digit ● Keystroke
(long)
The right digit flashes
00
● Keystroke
(short)
Change the 3rd digit of
the address range
01
● Keystroke
(long)
Address range saved
The display shown
appears
N4
11
.
Scroll through the
menu (↓)
● Keystroke
(short)
The display shown
appears
Ai
● Save the
address
● Keystroke
(long)
Display flashes
IP address saved
Ai
(flashes)
The control unit boots
b0
