assembly and installation
Electrical Installation
7160-9001-560
01. December 2020
21 / 74

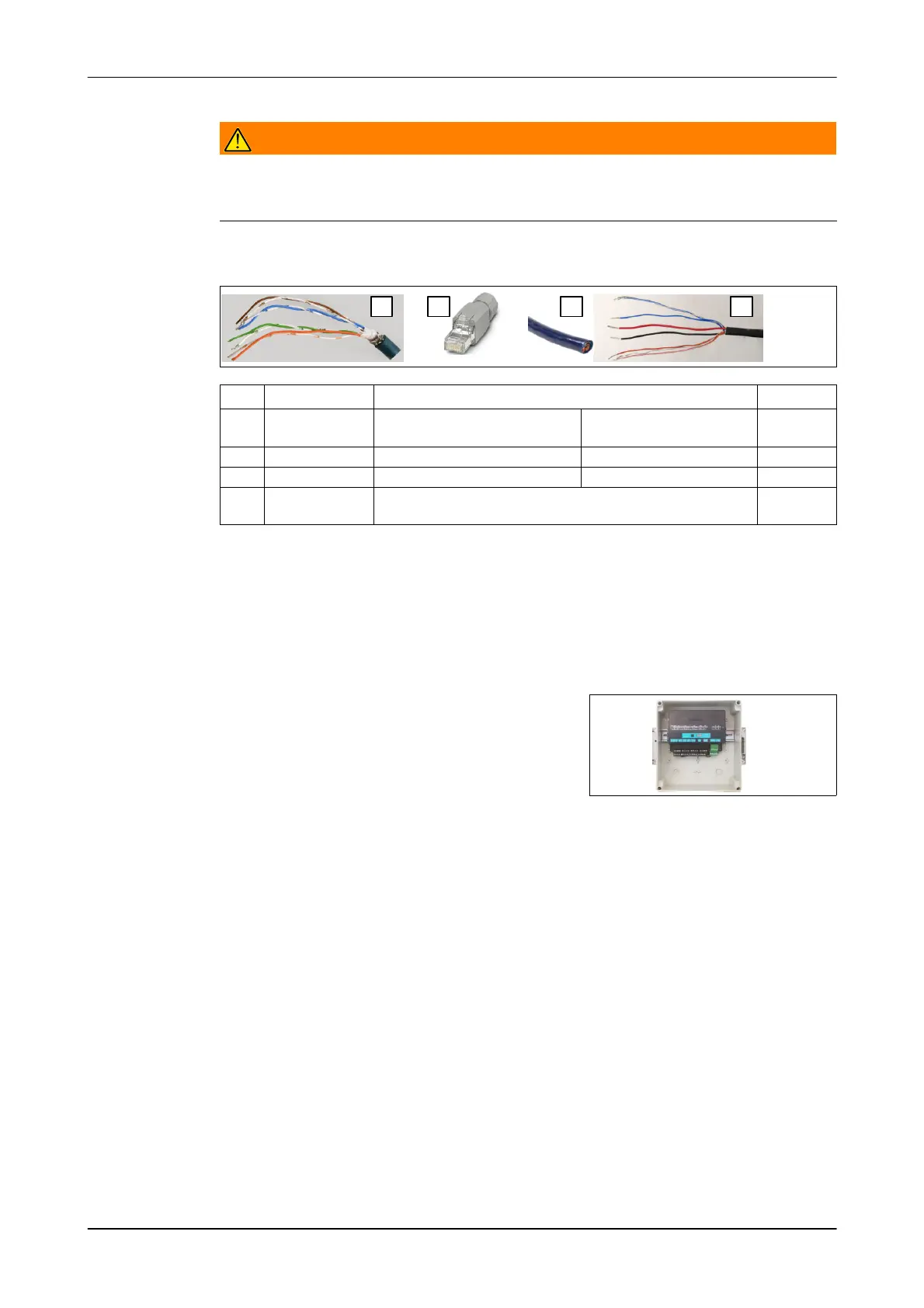

5.7 Electrical Installation
Warning!
Electrical Hazard!
► Do not connect the power supply until the installation work has been
completed!
Installation material
1 3 42
Item Part No. Description Quantity
1 0005-3999-078 Data cable
Ethernet - CAT5
4x2xAWG26/7
sold by the
meter
2 7300-2964-000 Connector, complete Ethernet 8pol AWG26
3 0005-3999-088 Data cable CAN cable
4 7750-0120-357
Data cable
6 Cond PPID CANBUS,(UL cable North America only)
Notes on electrical connection
● Use the specified cable for all cable connections.
● Lines which are not laid properly (e.g. bending radius too small) can cause
scorching and electrical fires.
Lengthen bending radius if too small.
● Feed all cables into the housing individually
from below through screw connections.
- Keep connection cables as short as
possible.
- Make sure that the connecting cables cannot be damaged by animals.
● Network: Minimum upload speed: 1MBit/s
● Maximum cable length between Ethernet devices: 100 m
● Lay network cables at a sufficient distance to all live cables.
