ADP200 Application PID-IMM User Manual Pag. 54 of 80

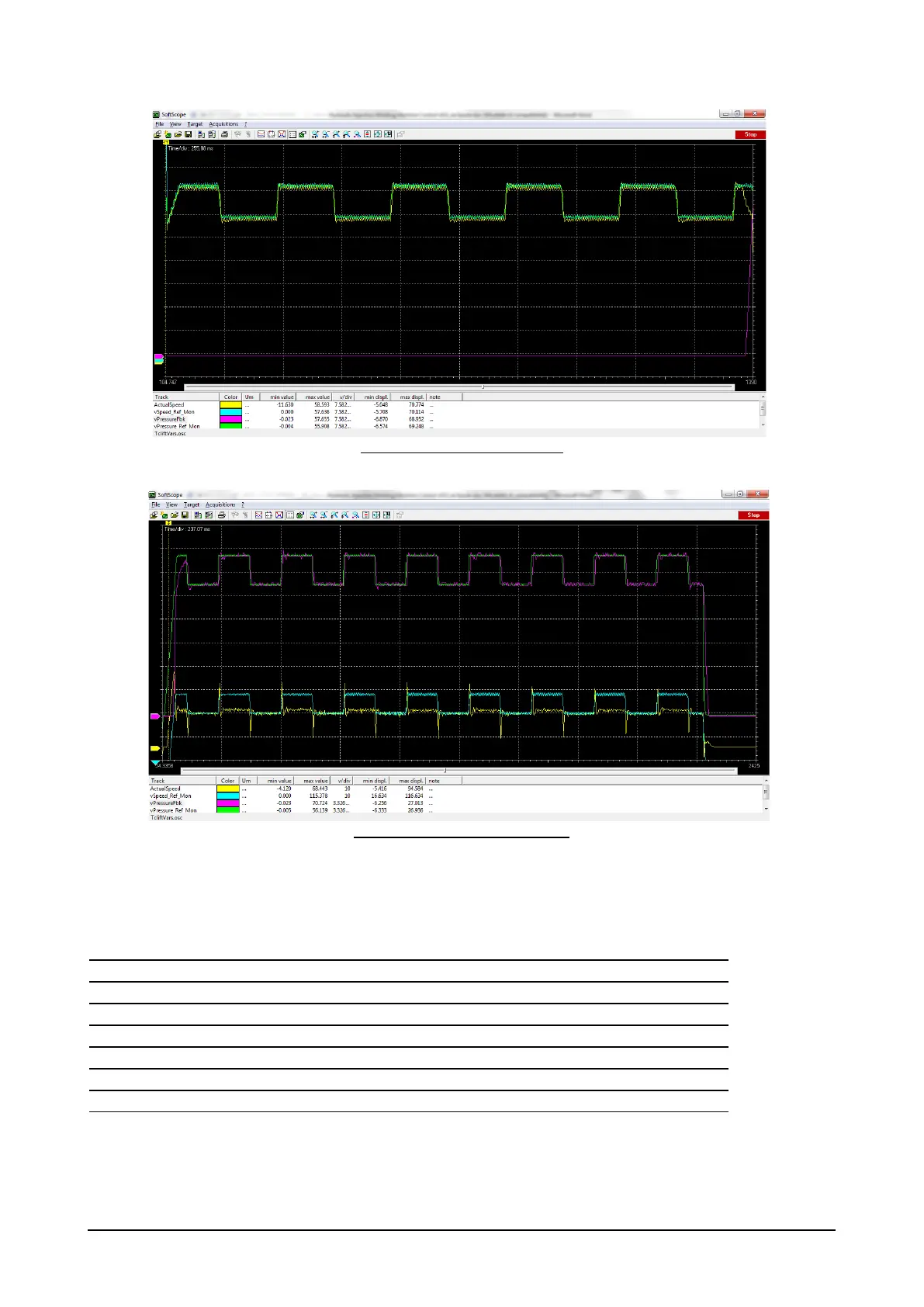

Figure 27: Example of Speed Tuning
Figure 28: Example of Pressure Tuning
5.5.3 List of Parameters GAIN menu
Ipa
Parameter Name
Unit
Type
Default
Min
Max
11086 Kp Pressure Control -
FLOAT
2.5 0.00
100.00
11088
Ki Pressure Control
-
FLOAT
18
0.00
1000.00
11090 Kd for Press Contr -
FLOAT
0.01 0.00
100.00
11092 Derivative filter Hz
FLOAT
100 1.00
500.00
11094 Kp Speed Control -
FLOAT
2.51 0.00
100.00
11096 Ki Speed Control -
FLOAT
64 0.00
1000.00
11098 AntiWindupGain -
FLOAT
1 0.00
1.00
Kp Pressure Control Proportional gain for pressure control loop.
Ki Pressure Control Integral gain for pressure control loop.
