gefran ADV200 WA DC Series User Manual

ADV200 WA • Quick start up guide - Specification and installation 105

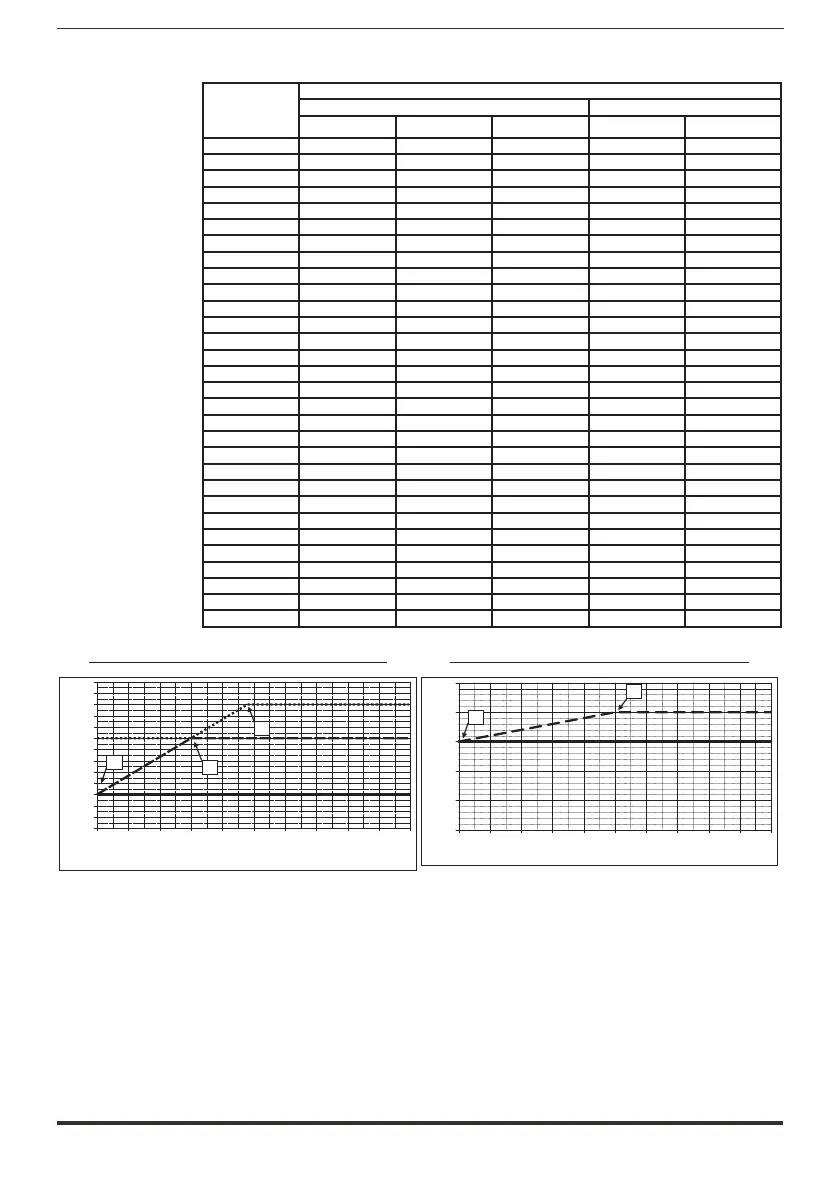

9.6.2 Overload for output frequency
Sizes
For Asynchronous motors
Heavy duty Light duty
K1 SP [%] K2 SP [Hz] K3 SP [Hz] K1 SL [%] K2 SL [Hz]
1015 100 3 4.8 100 3
1022 100 3 4.8 75 3
1030 100 3 4.8 75 3
1040 100 3 4.8 80 3
1055 100 3 4.8 100 3
2075 100 3 4.8 100 3
2110 100 3 4.8 75 3
2150 100 3 4.8 75 5
3185 100 5 8 75 7
3220 100 5 8 85 5
3300 100 3 4.8 80 5
4370 100 3 4.8 80 3
4450 100 3 4.8 80 3
4550 100 3 4.8 80 3
5750 100 3 4.8 85 5
5900 100 5 8 85 5
51100 100 5 8 85 5
61320 100 3 4.8 100 3
61600 100 3 4.8 100 3
72000 100 3 4.8 80 3
72500 100 3 4.8 100 3
73150 100 3 4.8 75 5
73550 100 3 4.8 100 3
74000 90 5 7.5 90 5
500 kW 100 3 4.8 100 3
630 kW 100 3 4.8 75 5
710 kW 100 3 4.8 100 3
800 kW 90 5 7.5 90 5
1000 kW 100 3 4.8 100 3
1200 kW 90 5 7.5 90 5
Figure 9.7.2.1: HD Overload (For Asynchronous motors) Figure 9.7.2.2: LD Overload (For Asynchronous motors)
70
80
90
100
110
120
130
140
150
160
170
180
190
200
0 1 2 3 4 5 6 7 8 9 10
f [Hz]
I out [%]
k1
k2
k3
70
80
90
100
110
120
0 1 2 3 4 5 6 7 8 9 10
f [Hz]
I out [%]
k1
k2
_ _ Islow, .... Ifast; __ In _ _ Islow, __ In
