10.5 Installation of optional cards
SLOT 1
SLOT 2
SLOT 3
EXP-SFTy-ADV

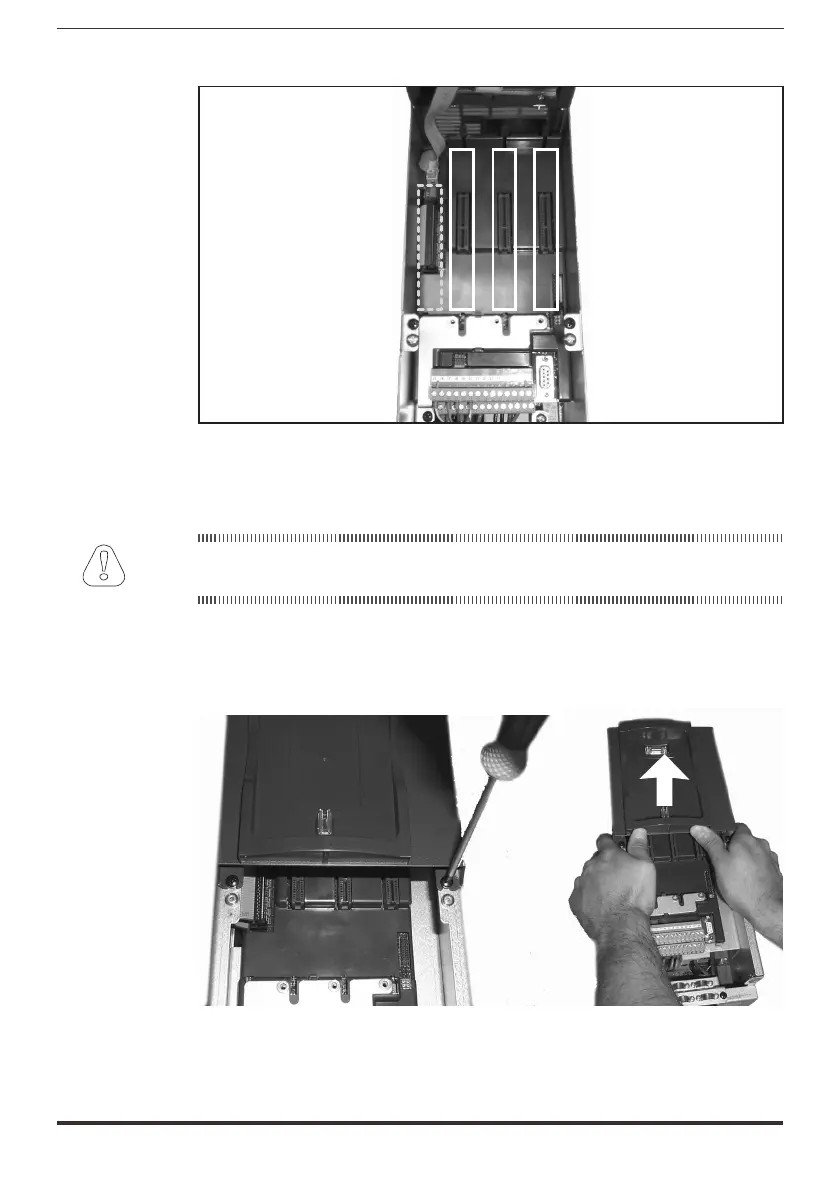

Up to three optional cards can be inserted in the three slots under the top cover:
• Slot 1-2: dedicated to IO cards (EXP-IO-...-ADV)
• Slot 3:
dedicated to eld Bus cards (EXP-PDP-ADV, EXP-CAN-ADV, etc.).
If an optional card is inserted in an incorrect Slot, the drive will send an error message.
The EXP-SFTy-ADV safety card can be installed and configured only in factory.
10.5.1 Procedure
1. Remove the bottom cover as indicated in paragraph 5.2.1.
B
B
C
