130 ADV200 WA • Quick start up guide - Specification and installation

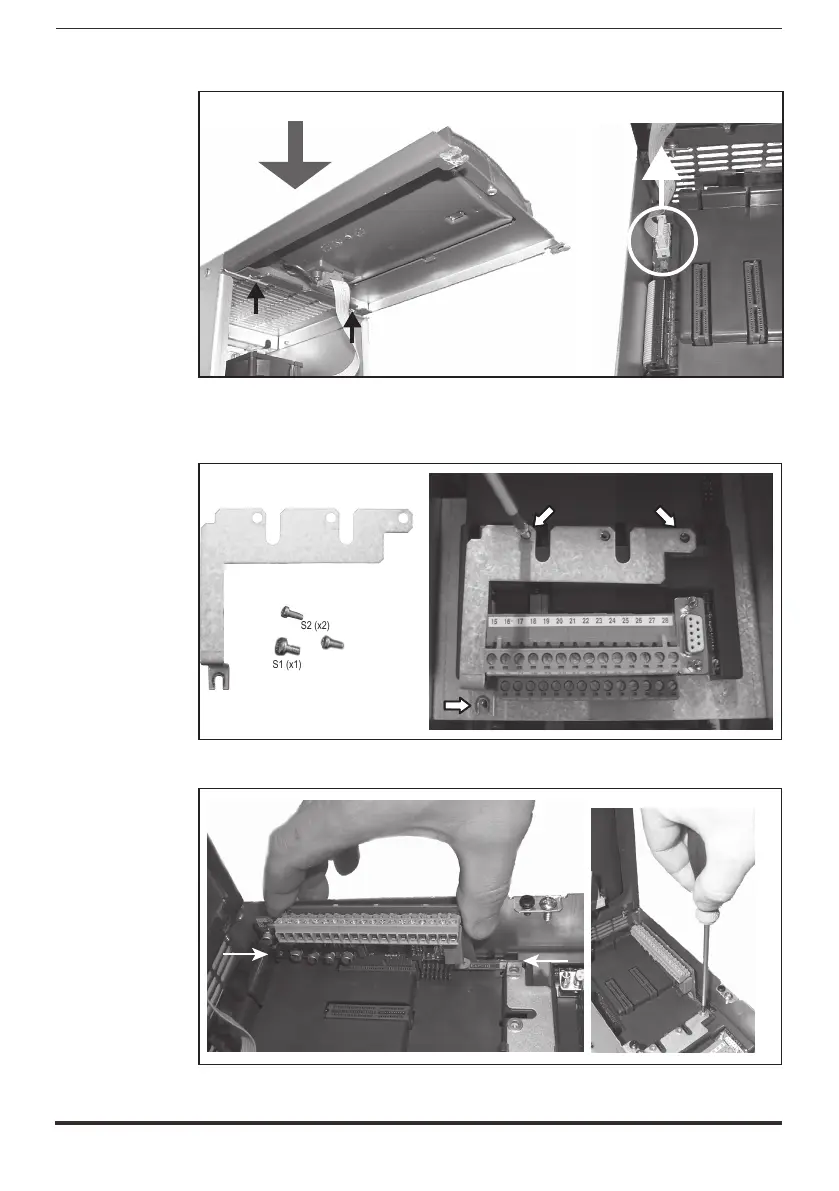

2. To remove the top cover, loosen screws B by about 2 turns and slide out cover
C as shown in the gure.
3. To prevent damage to the connection of the keypad, the top cover can be
positioned as indicated in the gure.
Alternatively, remove the connector of the keypad and rest the cover in a safe place.
S1 (x1)
S2 (x2)
S2 (x2)
S1 (x1)
(S)
4. Position and fasten the metallic shield (S), provided with the optional card, with
the screws S1 and S2 (x1) as shown in the gure.
SLOT 1
D
D
E
F
