40 ADV200 WA • Quick start up guide - Specification and installation

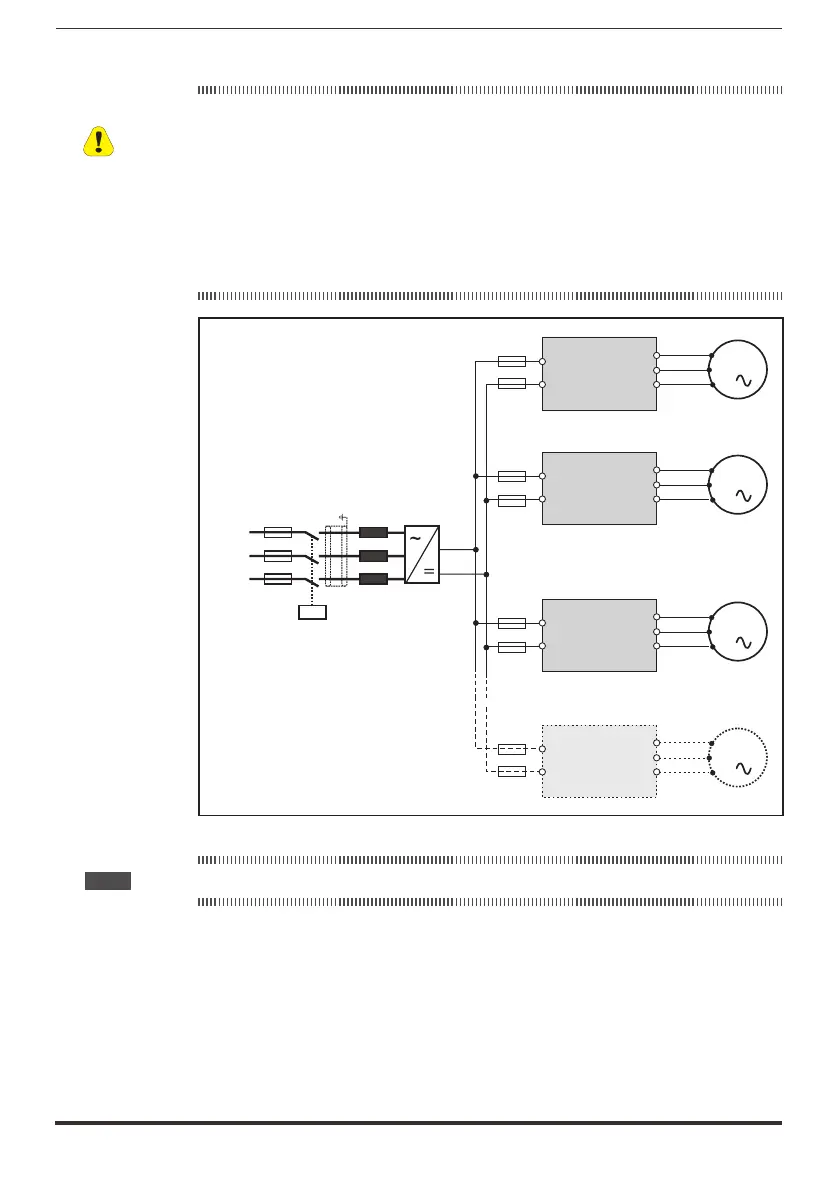

5.1.11 Parallel DC connection
In the case of DC power supply, insertion of an AC mains inductance on the power
supply input of the power supply unit is compulsory (for the type of inductance,
consult the manual of the power supply unit).
To avoid to damnage the integrated EMI lter, regenerative converters may not
supply the DC power supply to ADV200 WA-1015 ...ADV200 WA-61600 drives.
Regenerative converters may supply the DC power supply to the ADV200
WA (≥ 72000) and ADV200 WA-...-DC series.
M1
3
M2
3
U
V
W
C
D
ADV200 (1)
U
V
W
C
D
ADV200 (2)
M..
3
U
V
W
C
D
ADV200 (..)
K1M
L1
L2
L3
F1 (*)
( 400 V / 460 50/60 Hz)
AC
3ph - V
AC
,
L1 (*)
F12
F22
F..2
M3
3
U
V
W
C
D
ADV200 (3)
F32
AFE200, SM32 or
DC Power supply
(*) Refer to SM32 or DC Power supply manual.
Note! For size 7 only, adaptation for internal mounting of “F12, F22, F32, F.2” fuses (DC side) on request
Caution
