Product description MagicControl 4.0 (CM40)
Connections and interfaces

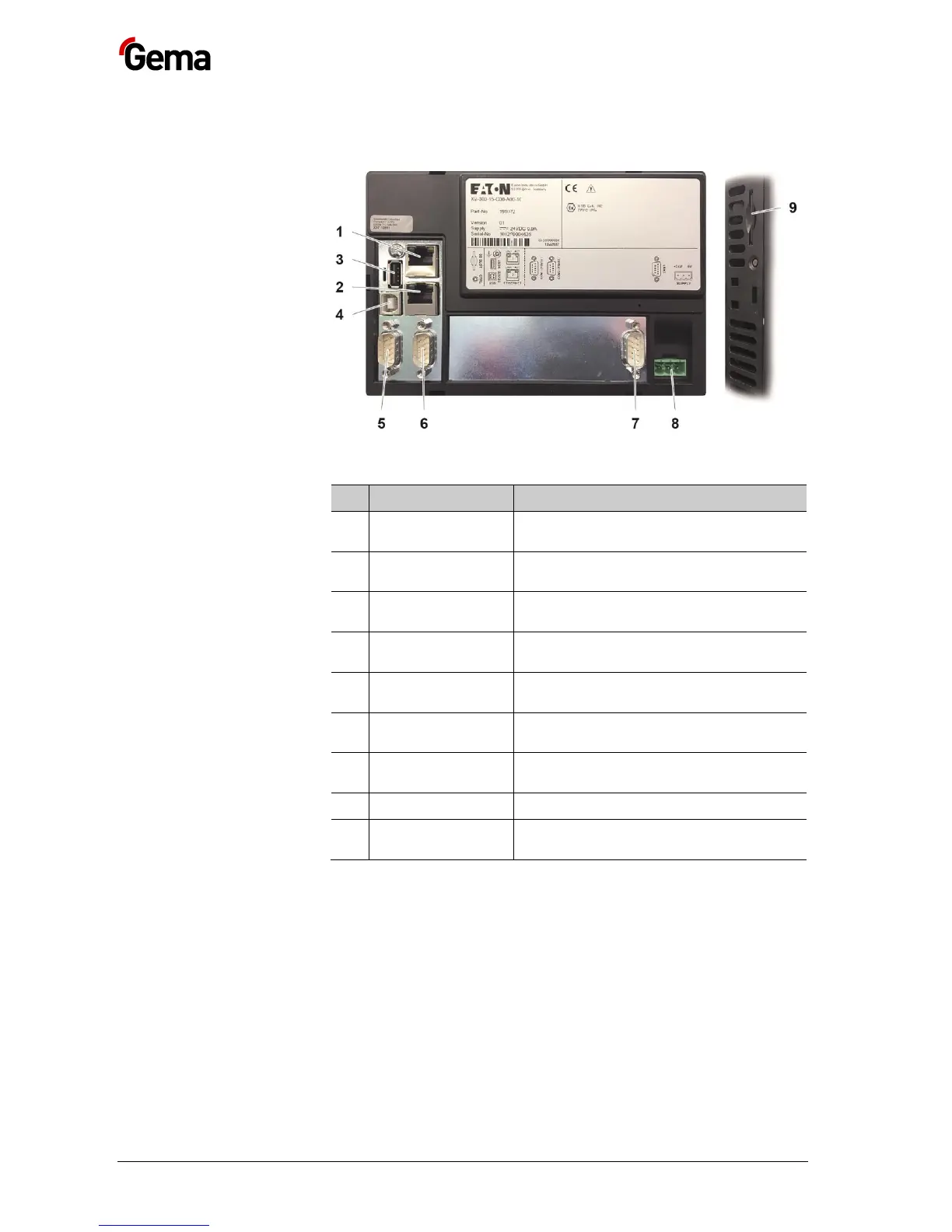

Fig.
5
: Connections
Connection
Description
1
Ethernet 1
RJ-45 socket, 8-pin, 2 LEDs (CAT5e/6),
LAN1, 10/100 Mbps
2
Ethernet 2
RJ-45 socket, 8-pin, 2 LEDs (CAT5e/6),
LAN1, 10/100 Mbps
3
USB host
USB 2.0, not galvanically isolated, plug
type A, full power (500 mA)
4
USB device
USB 2.0, not galvanically isolated, plug
type B
5
COM1
RS-232, not galvanically isolated, SUB-D
connector 9-pin
6
COM2
RS-485, not galvanically isolated, SUB-D
connector 9-pin
7
CAN
CAN1, not galvanically isolated, SUB-D
connector 9-pin
8
Power supply
MSTB plug connector, 3-pin
9
SD card slot
SDSC or SDHC according to SDA
specification 2.0
