Gema MagicControl 4.0 Operating Instructions

Rev. 00 08/17
MagicControl 4.0 (CM40) Product description

13
Reasonably foreseeable misuse
– Operation without the proper training
– Use in connection with unauthorized coating devices or components
Powder circuit
The control monitors and controls the powder circuit in coating plants. The
powder circuit depends on the plant layout and configuration.
An overview of the effective powder circuit is shown in the enclosed wiring
diagram.

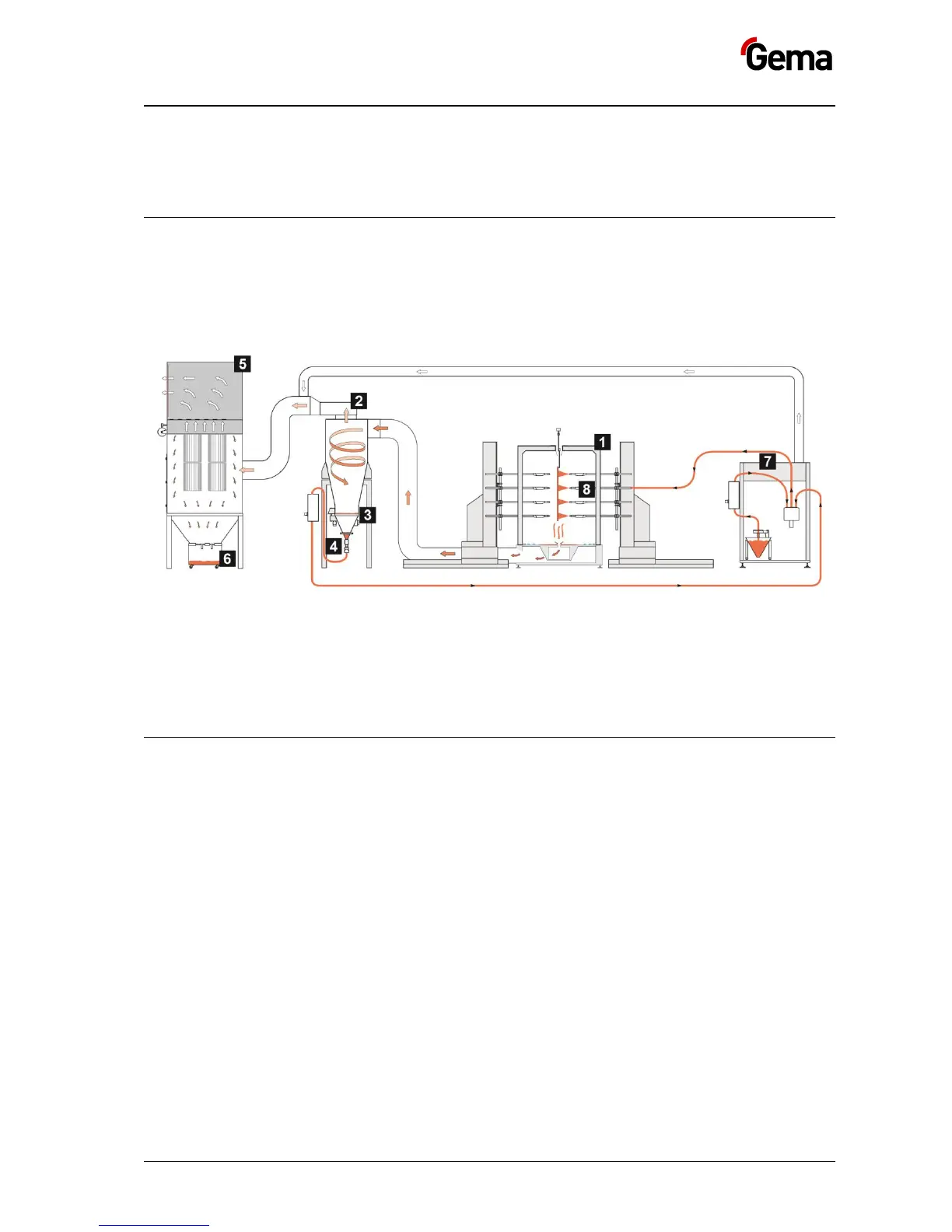

Fig.
2
: Example of a powder coating plant
1 Booth
2 Cyclone separator
3 Sieve
4 Dense phase conveyor
5 After Filter
6 Refuse container
7 OptiCenter
8 Automatic guns
Typical characteristics
– Powder coating in 2 operating modes
– Cleaning in cleaning mode
– User administration and language management
– Recipe management / application data management
– Configuration and parameter data management
– Alarm handling
– Diagnostic functions
– Operating data acquisition
– Control and regulation of height, length and depth detection
– Storage of operating data (e.g.: running time of guns, axes, fans) on
the SD cards
– Data exchange with higher-level plant controls (option)
– PC-based central control module for booths, gun controls, axes and
powder supply

Gema MagicControl 4.0 Specifications

General

Brand	Gema
Model	MagicControl 4.0
Category	Control Unit
Language	English
