Gema MagicControl 4.0 Operating Instructions

Rev. 00 08/17
70

Maintenance / Repairs MagicControl 4.0 (CM40)
1
C1=100 %
200 g
C1=100 %
200 g
2
C1=100 %
250 g
C1=80%
200 g
3
C1=100 %
280 g
C1=71%
200 g
etc.

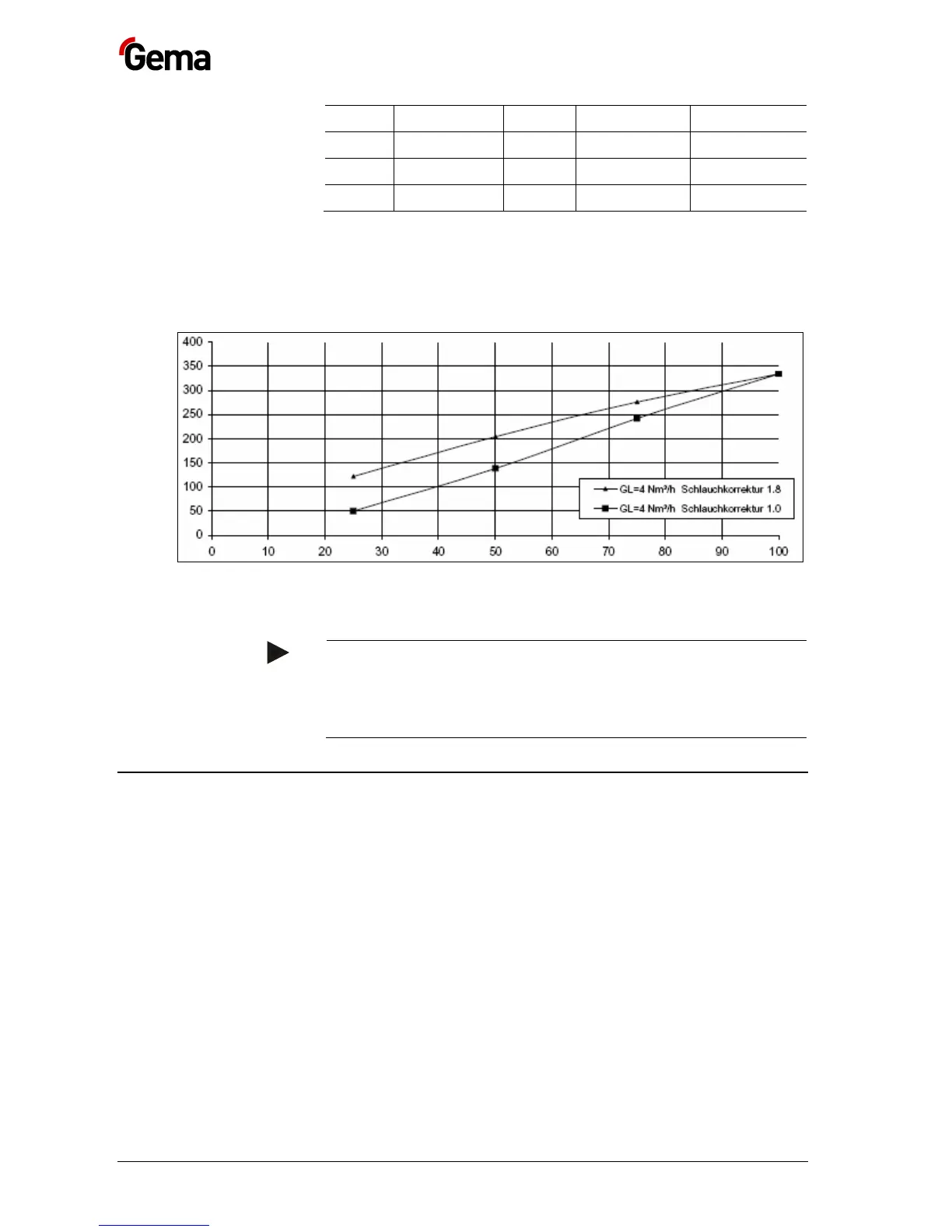

Correction factor – diagram
Impact of the powder hose correction
(powder hose 11 mm x 12 m)
Powder output [g/min]
Powder setting [%]
Fig.
69
: Correction factor – diagram
The hose length correction factor is chosen in such a way, that
no powder is visible, if the powder portion is 0%, by increasing
the value, the powder becomes visible then.
– This behavior depends on the hose length and the hose
diameter.
Repair work
In the event of malfunctions or faults, the product must be checked and
repaired by an authorized Gema service workshop. The repairs must only
be performed by an authorized specialist.
Improper tampering can result in serious danger for user and equipment.
