Maintenance / Repairs MagicControl 4.0 (CM40)

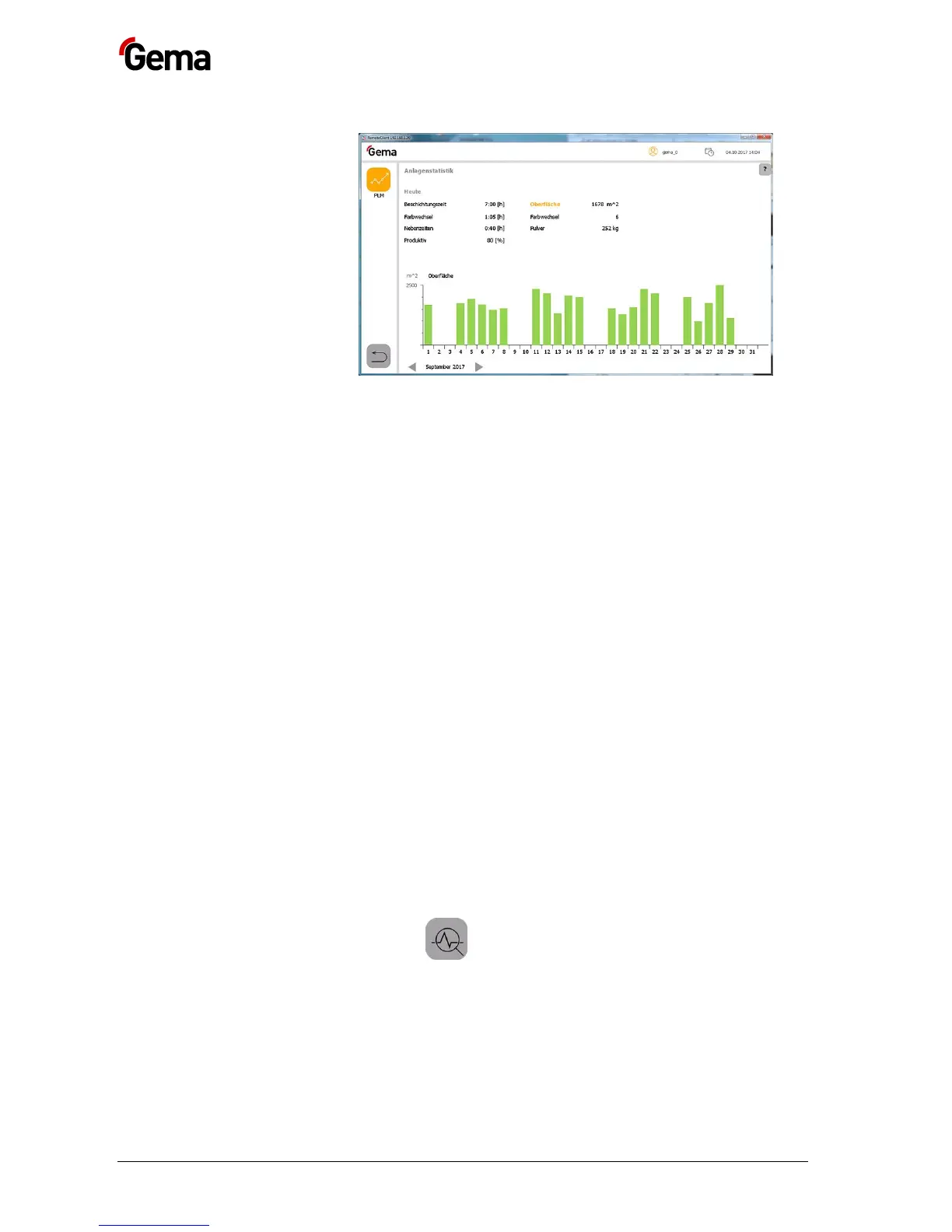

The following page is displayed:
Fig.
62
:
Overall equipment
effectiveness
Display of operating times and coating
results of the plant
Powder coating
Total productive coating time based on
spray and axis movement times
Color change
Total time in color change mode
Auxiliary process
time
Total time takes into account conveyor
stop, object gaps, waiting states,
maintenance times
Overall equipment
effectiveness
The overall equipment effectiveness is
defined by the duty cycle and coating time,
expressed as a percentage. Overall
equipment effectiveness = coating time x
100 / duty cycle
Coating area
Calculated area [m²] based on the area
output and triggering times of the guns.
Powder consumption
Trend towards powder consumption [kg]
based on output volume and average
transfer efficiency
Color change
Number of color changes
System diagnosis
Display of wearing parts status and maintenance time
1. Press the key
The following page is displayed:
