MagicControl 4.0 (CM40) Product description

23
User
Admin
Gema
Service
user 1
user 2
user 3
User level
0
1
2
3
4
If no user is logged on to the panel,
operation is locked
–
–
–
–
–
Operating data management (LM)
With its integrated statistics, trend tools and monitoring of wearing parts,
the plant control offers the user the possibility to analyze important
production information and thereby support future system optimizations.
Machine utilization statistics give the user insight into usage and
performance of the plant, powder consumption and the total area of the
coated parts.
The software-based timer in the control unit gives information about how
long the control unit has been in operation, or how long it has been
operated with this control unit.
With the system diagnostics, the user has an overview of the remaining
service duration of components and can better plan for maintenance
intervals and spare parts.
Individual operating times can be read in the corresponding screens.
Daily correction
The control offers the possibility to correct the powder output for all guns
per station in percent.
The output values can be corrected without modifying the programmed
values. The daily correction has the same effect on all guns and can be
changed in the range of 50%...150%. This means that 50%..150% of the
programmed powder quantity is conveyed without influencing the total air
volume.

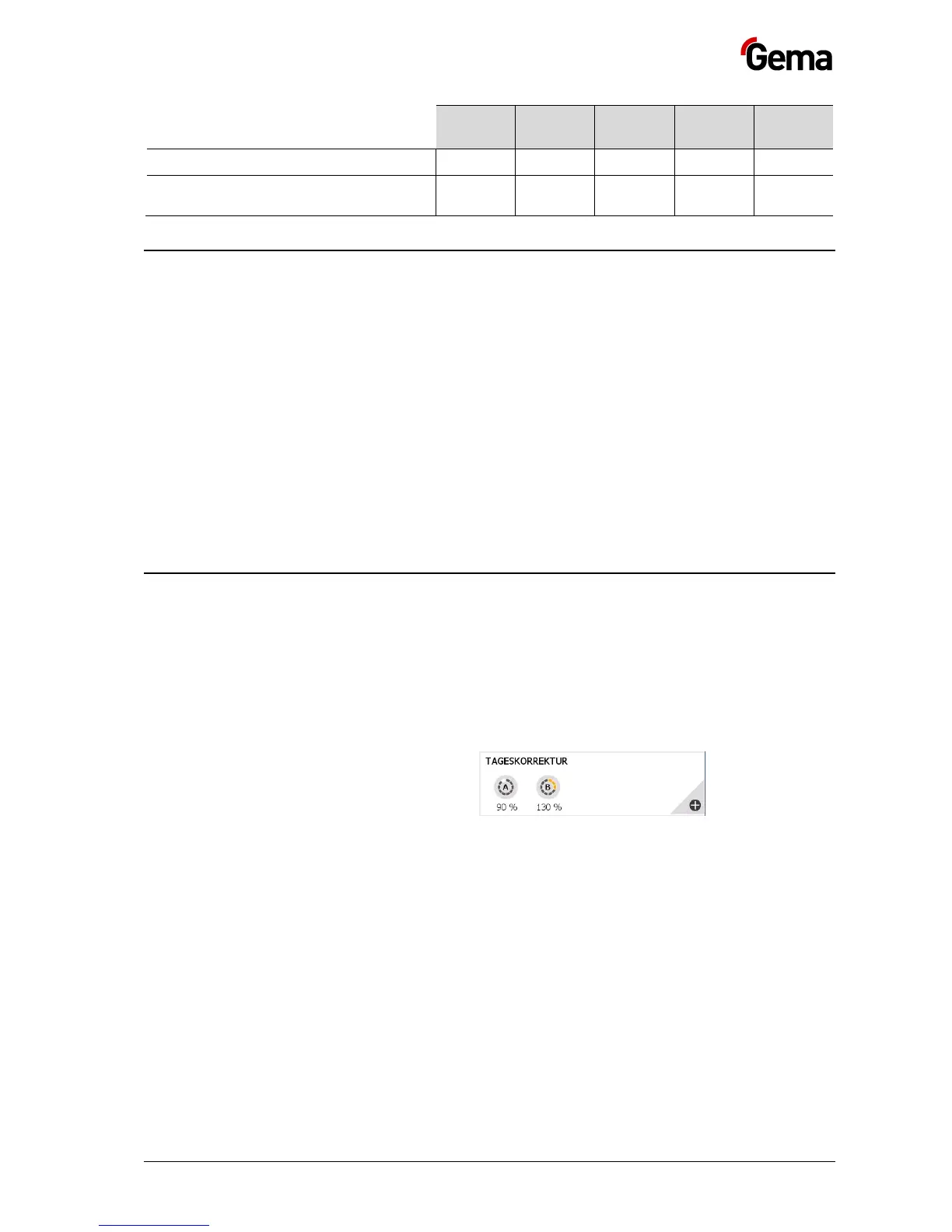

Fig.
7
:
The day correction is used:
– In injector plants as compensation for wearing parts.
– In plants with always equal parts as correction factor of the powder
mixture.
– For different colors as a correction of the application, without
adjusting the basic program.
– To compensate for differences in ambient conditions
(summer/winter).
