V 02/18
OptiStar CG08(-C) Product description • 15
Connections
Compressed air hoses / cables

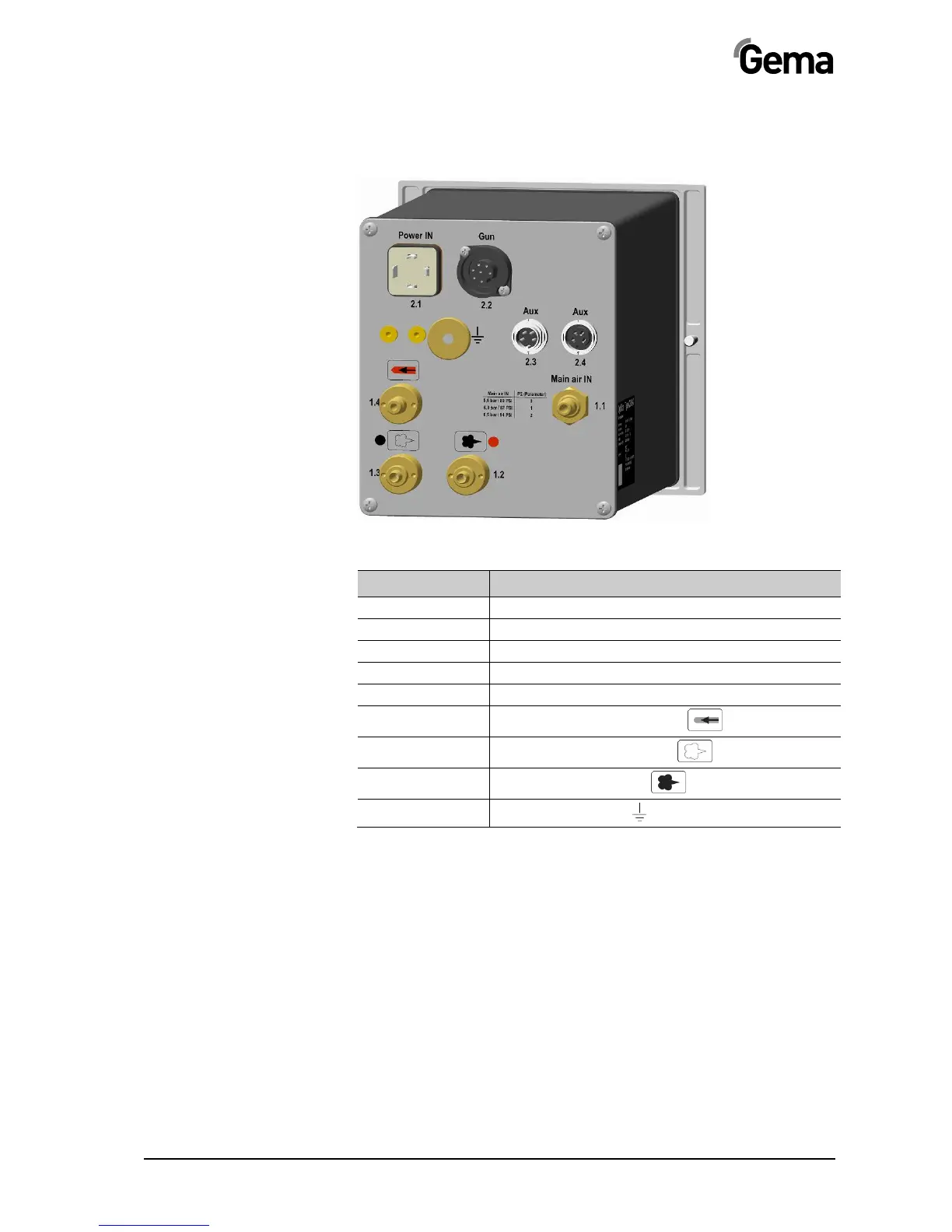

OptiStar CG08-C – Connections - Compressed air hoses / cables
Connection Description
1.1 Main air IN
Compressed air connection
2.1 Power IN
Mains cable connection
2.2 Gun
Gun cable connection
2.3 Aux
CAN bus connection (IN)
2.4 Aux
CAN bus connection (OUT)
1.4
Electrode rinsing air connection
1.3
Supplementary air connection
1.2
Conveying air connection
Grounding connection
