36 • Initial start-up OptiStar CG08(-C)

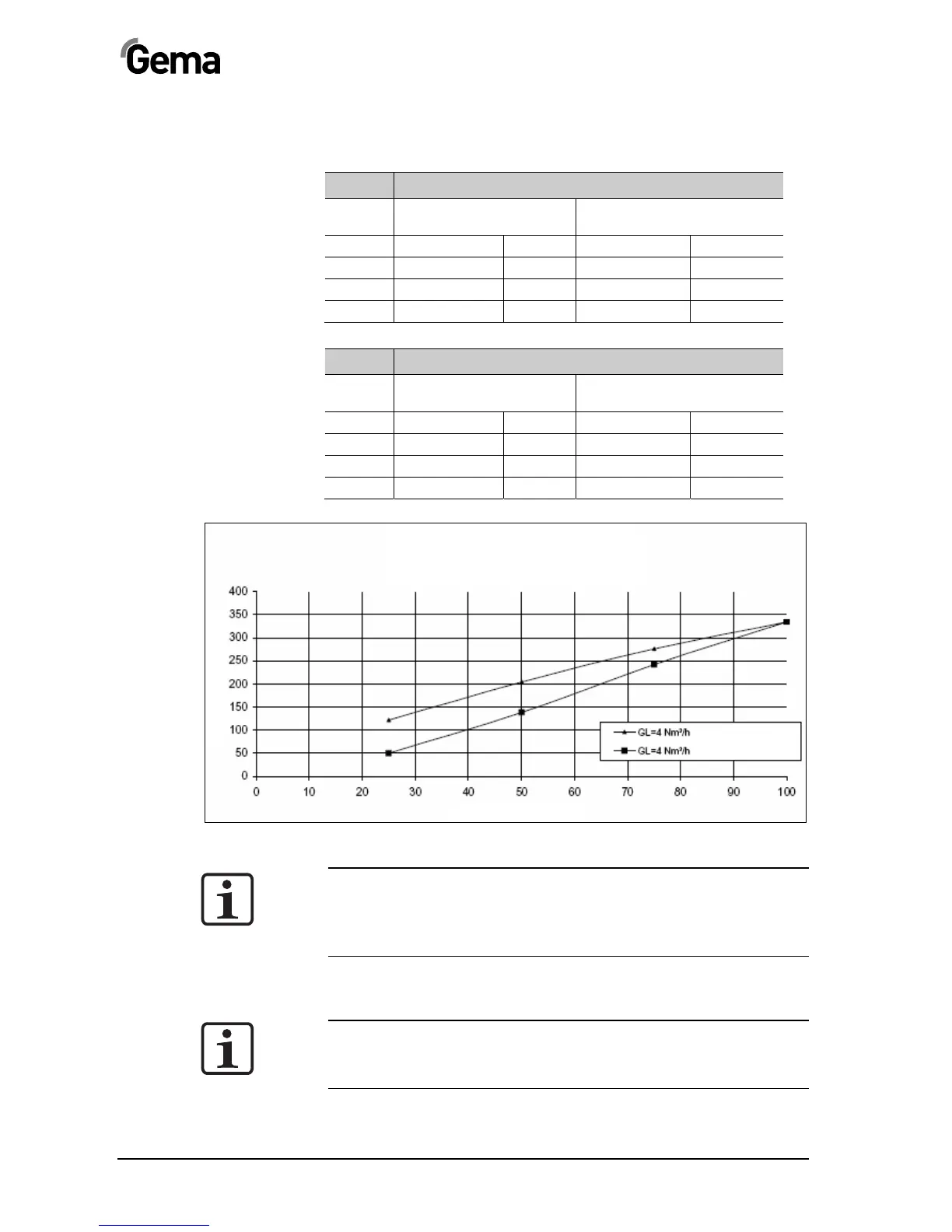

Example table for powder output/powder hose
correction
Gun Powder output correction C0
No.
before
correction
after
correction
1 C0=1.8 Nm³/h 20 gr.
C0=1.7 Nm³/h
12 gr.
2 C0=1.8 Nm³/h 10 gr.
C0=1.8 Nm³/h
13 gr.
3 C0=1.8 Nm³/h 0 gr.
C0=2.6 Nm³/h
12 gr.
etc.
Gun Powder hose correction C1
No.
before
correction
after
correction
1 C1=100% 200 gr.
C1=100%
200 gr.
2 C1=100% 250 gr.
C1=80%
200 gr.
3 C1=100% 280 gr.
C1=71%
200 gr.
etc.
Correction factor - diagram
Correction factor - diagram
NOTE:
The hose length correction factor is chosen in such a way, that no
powder is visible if the powder portion is 0%, by increasing the
value, the powder becomes visible then. This performance depends
on the hose length and the hose diameter!
Daily correction value C2
NOTE:
The daily correction value C2 can be used to allow higher or lower
powder volumes!
Influence of
powder hose correction
(powder hose 11 mm x 12 m)
Hose correction 1.8
Hose correction 1.0
Powder setting [%]
Powder output (g/min)
