34 • Initial start-up OptiStar CG08(-C)

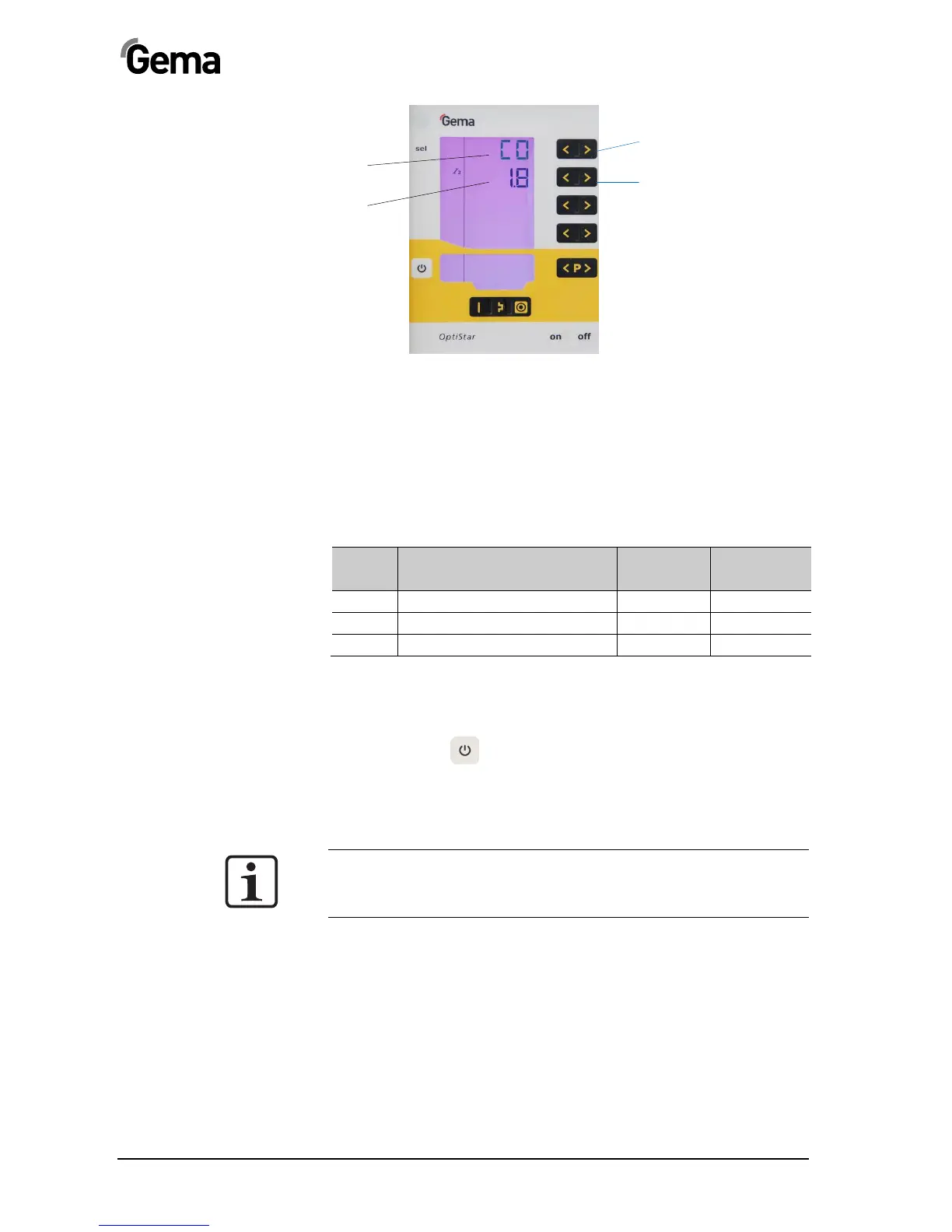

3. The correction factor number is shown in the display A1 with
a C placed in front
4. Set the corresponding correction value with the T3 or T4 key.
The value of the adjusted correction factor appears on
corresponding display A2
5. Browse to the next or previous correction factor with the T1
or T2 key
6. Select correction values according to the following table
Corr.-
value
Description Range
2)
Default
value
C0
Powder output (dm³/h) 50-30 1.8
1)
C1
Powder hose correction value (%) 40-100 100
C2
Daily correction value (%) 50-150 100
1) Any value correction is set to its default value if the default value changes when the
P00 device type is changed.
2) A correction value is set to its default value if it is outside of the value range after the
P00 device type has been changed.
7. Press key
Display returns to the first level display.
Powder output/powder hose correction
NOTE:
The settings in the following example are carried out for each gun
individually!
Powder output corrections are made at the first start-up, after a service
work, after the solution of application problems, or by using different hose
diameters!
It is recommended to create a table with input fields (see "Example table
for powder output/powder hose correction"), so that, if a possible system
reset takes place, an access to these data can take place.
Procedure (powder output correction)
1. Set the total air to 4.0 (Nm³/h) on the A2 display. Set the
powder output to 00 (%) on the A1 display
A2
A
1
T3 / T4
T1 / T2
