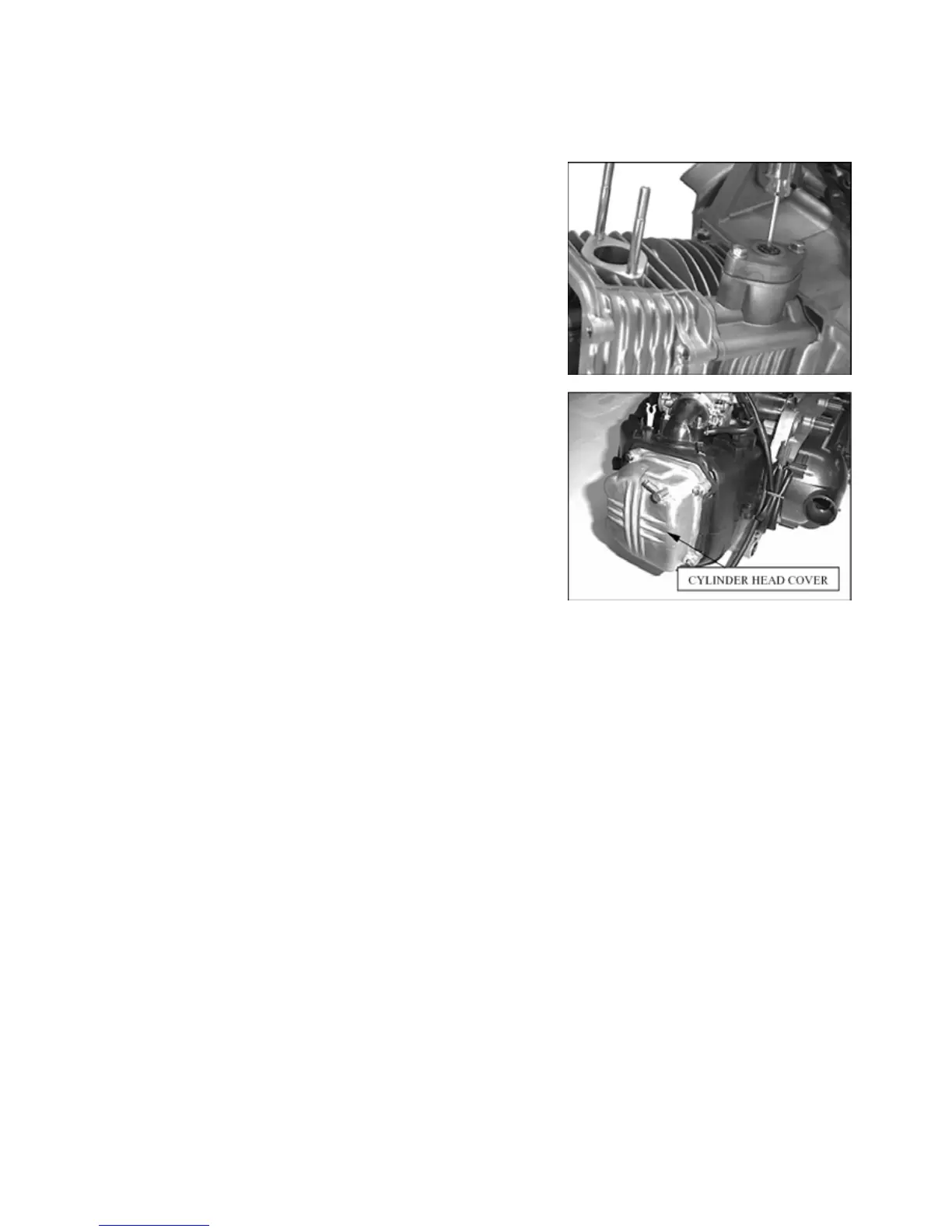

Relax the cam chain-adjusting bolt with

counterclockwise direction and install the o-ring

and screw.

Install the cylinder head cover.
