Generic XOR 125 User Manual

39

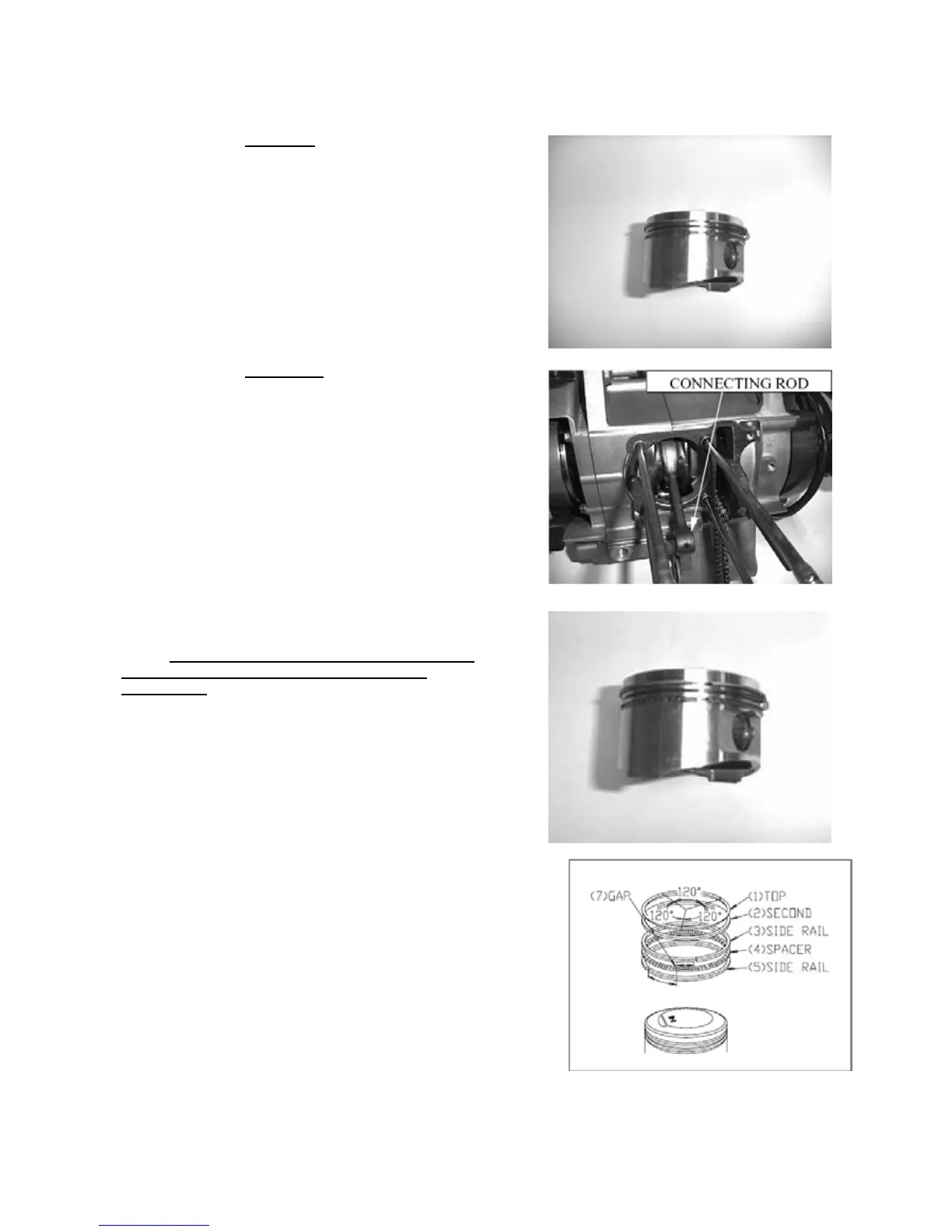

Calculate the piston-to-piston pin clearance.
SERVICE LIMIT: 0.02 mm
Measure the connecting rod small end I.D.
SERVICE LIMIT: 15.06 mm
PISTON INSTALLTION
PISTON RING INSTALLATION
Clean the piston ring grooves thoroughly and install
the piston rings with the marks facing up.
NOTE: Don’t interchange the top and second rings.
Avoid piston and piston ring damage during
installation.
Space the piston ring end gaps 120 degrees apart.
