Genesis KBE2 User Manual

TABLE 3 – MODEL NUMBER IDENTIFICATION
Drive Depth is
4.65
118
2.40
61
2.83
72
3 x ∅
5.20
132
4.56
116
RESET
STOP
RUN
FUN
DSP
ENT
DATA
0.18
4.6

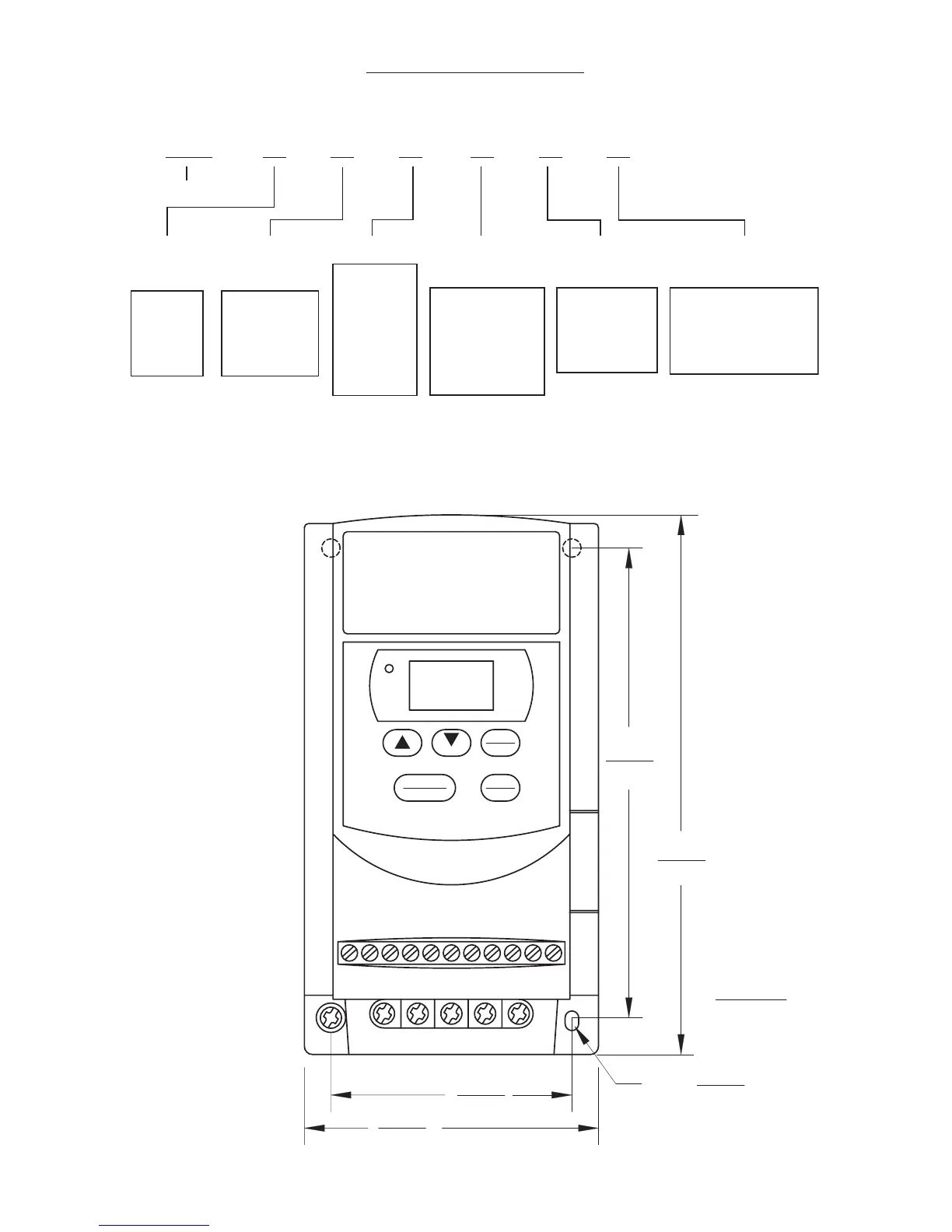

FIGURE 1A – MECHANICAL SPECIFICATIONS (Inches/mm)
for Models KBE2-1125-P, 1150-P, 1101-P, 2125-P, 2150-P, 2101-P (Pkg. A)
KBE2
Series
– 2 1 01 – P F S
Input
Voltage
1: 115V
2: 230V
4: 460V
Input
Phase
1: 1φ
2: 1φ & 3φ
3: 3φ
Enclosure
Type
P: Panel
Mount IP-20
4: NEMA-4 / IP-65
Indoor
RFI (EMI)
Filter Option
F: With Filter
Blank: Without
Filter
Switch
Option*
S: With On/Off &
Forward/Reverse Switch
Blank: Without Switch
Horsepower
25: 0.25 HP
50: 0.5 HP
01: 1 HP
02: 2 HP
03: 3 HP
*Available for
NEMA-4 / IP-65 Models Only.
