F08 – (Preset Speed #1)
Factory Setting: “10.0” (10.0 Hz) – F08 is used to set the frequency of Preset
Speed #1 and is factory set to “10.0”, which will run the motor at 10.0 Hz if
Terminal “6” is selected, as described in Section V-B-5, on page 22.
Programmable Range: 1 - 200 Hz
F09 – Jog Fr
equency
Factory Setting: “06.0” (6.0 Hz) – F09 is used to set the jog frequency. F09 is
factory set to “06.0” which will run the motor at 6.0 Hz. To program the drive for
Jog operation, Multifunction Input Terminals “6” or “7” must be used. See F19 on
page 45 and F20 on page 46.
Programmable Range: 1 - 200 Hz

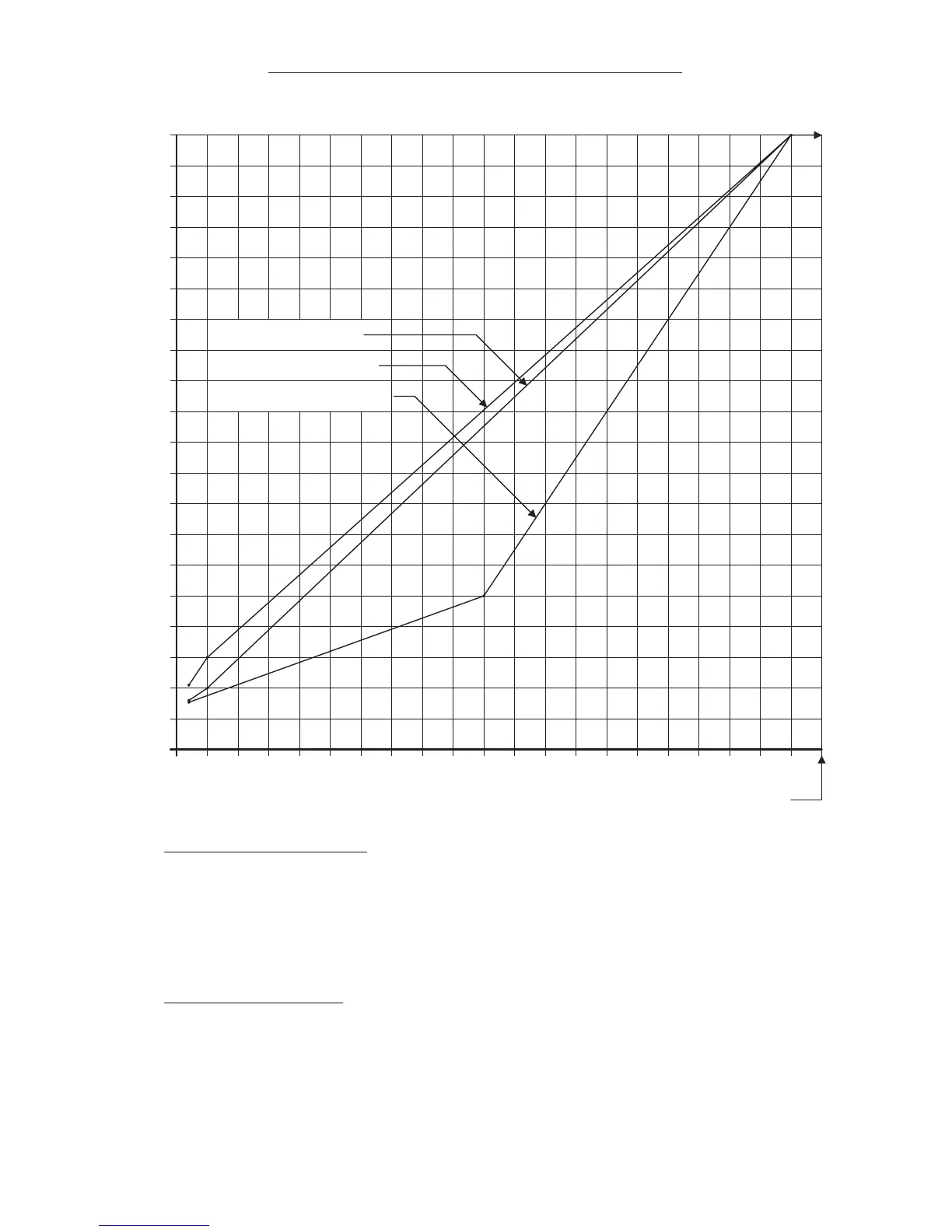

Constant Torque Application
Variable Torque (HVAC) Application
High Starting Torque Application
10
0
0
10
20
30
Motor Voltage (%)
40
50
60
70
80
90
100
20
Motor Frequency (%)
30 40
Output Frequency Upper Limit (F06)
50 60 70 80 90 100
To Next Page
