II. MOUNTING INSTRUCTIONS
It is recommended that the drive be mounted vertically on a flat surface with ade-
quate ventilation. Leave enough room below the drive to allow for AC line, motor
connections, and any other wiring. Care should be taken to avoid extreme haz-
ardous locations where physical damage can occur. When mounting the drive in an
enclosure, the enclosure must be large enough to allow for proper heat dissipation
so that the ambient temperature does not exceed 50 ºC. See Figures 1A, 1B, 1C,
and 1D, on pages 12 - 15.
Note: NEMA-4 / IP-65 models are for indoor use only. They are not for use in
explosion proof applications.
CAUTION! To avoid overheating, do not mount the optional brake resistor under
the drive.

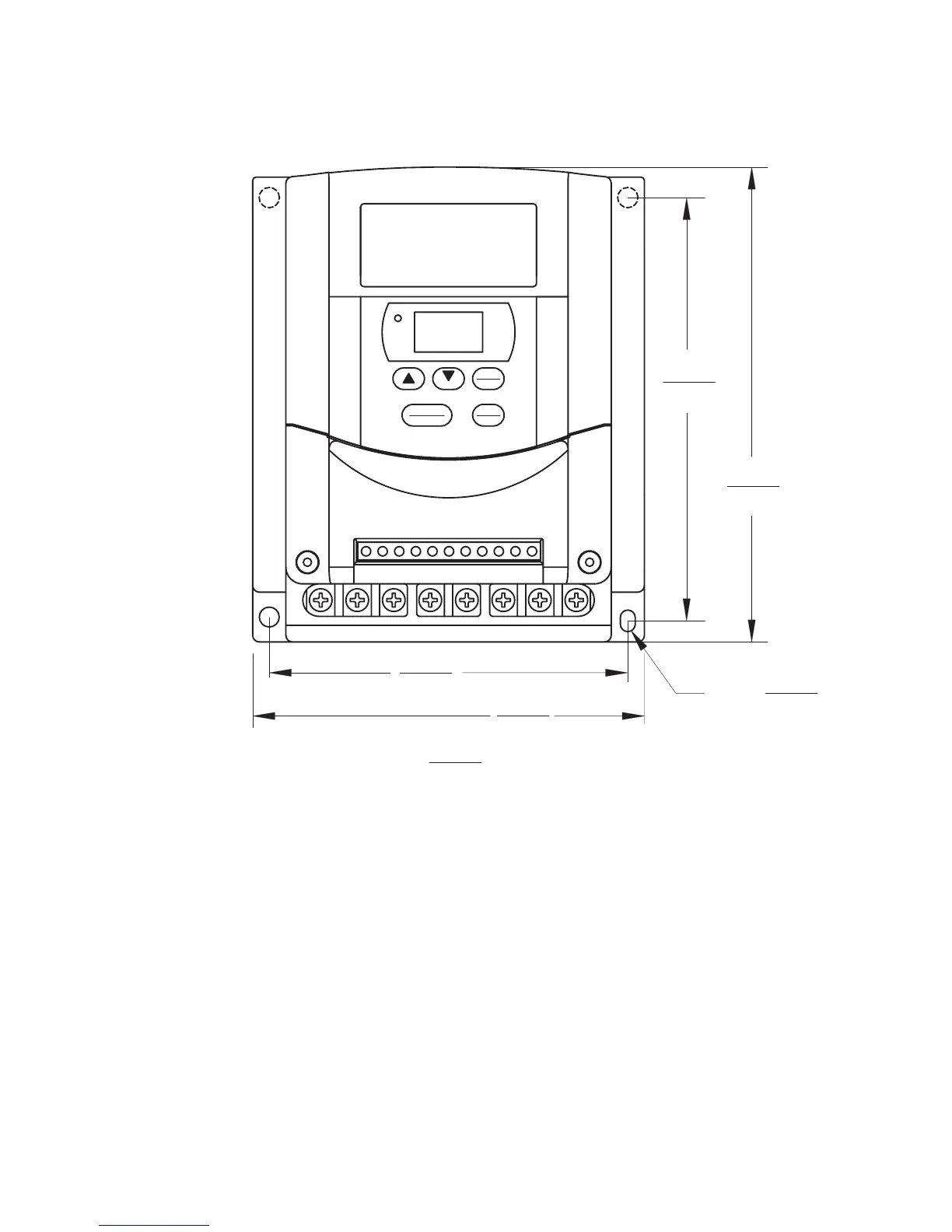

FIGURE 1B – MECHANICAL SPECIFICATIONS (Inches/mm)
for Models KBE2-2202-P, 2203-P, 4301-P, 4302-P, 4303-P (Pkg. B)
