52
Drive
Model No.*
Motor
HP, (kW)
Braking
Torque
(%)
Brake Resistor
Part No. Ω W
Dimensions (W x H x L)
Inches mm
KBE2-2202 2, (1.5) 120 14180 100 150 1.57 x 0.79 x 8.46 40 x 20 x 215
KBE2-2203 3, (2.2) 115 14190 70 200 2.36 x 1.18 x 6.49 60 x 30 x 165
KBE2-4301 1, (0.75) 125 14230 750 60 1.57 x 0.79 x 4.53 40 x 20 x 115
KBE2-4302 2, (1.5) 120 14240 400 150 1.57 x 0.79 x 8.46 40 x 20 x 215
KBE2-4303 3, (2.2) 130 14250 250 200 2.36 x 1.18 x 6.49 60 x 30 x 165
TABLE 20 – BRAKE RESISTOR SELECTION CHART
C. Remote Speed Potentiometer Kit (Part No. 9831) – Provides remote mount-
ing of the speed potentiometer to control motor speed. Kit includes a linear 5kΩ
- 5 Watt wire wound potentiometer, mounting hardware, and panel insulator.
D. Brake Resistor – Provides rapid stopping with high inertial loads. See Table
20. This option is only available for Models KBE2-2202, 2203, 4301, 4302,
and 4303.
RFI Filter Mounted on Metal Frame
*Cable shield should be grounded on drive side only.
Earth
Input
Internal
Connection
AC Line
PE
L1
L2
L3
Drive Mounted on RFI Filter
RFI Filter
Drive
Motor Mounted on Metal Frame
L1'
L2'
L3'
L1
P
L3
L2
T1
R
Cable Shield*
Motor
T3
T2

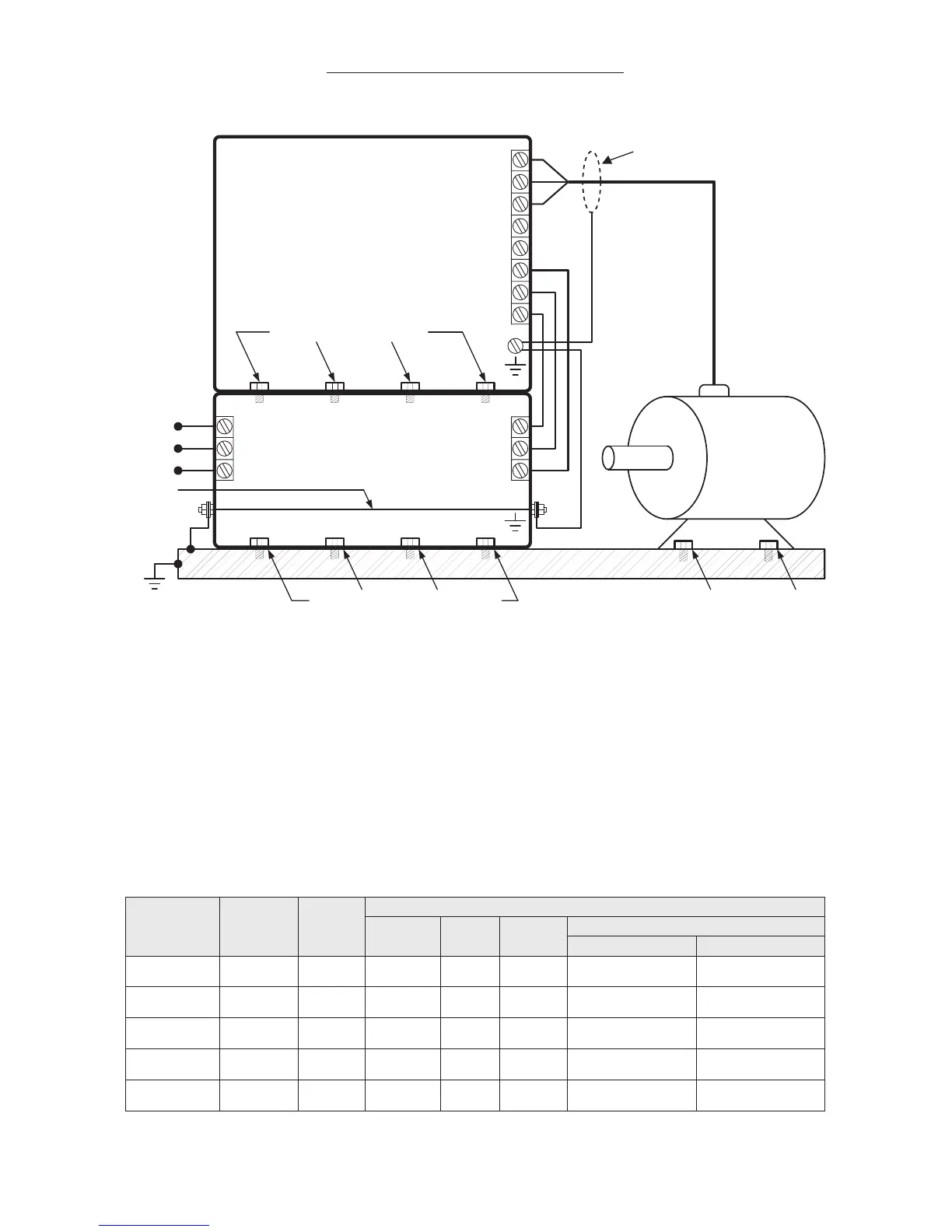

FIGURE 19 – RECOMMENDED RFI FILTER CONNECTION
Sec. X – Optional Accessories (Cont.)
* Includes all “-P” and “-4” suffix models.
