Genesis KBE2 User Manual

43
F13 – Volts/Hz Curve Modification (Torque Boost)
Factory Setting: “00.0” (0.0 %) – F13 is used to increase the percent of torque
boost that will be applied to the motor by modifying the Volts/Hz patterns set by
F05, as shown in Figure 17. F13 is factory set to “00.0”, for 0.0% torque boost.
Programmable Range: 0 - 10.0%
0
10
20
30
Motor Voltage (%)
40
50
60
70
80
90
100
Constant Torque Application
Constant Torque Application with 10% Torque Boost
0 - 10% Torque Boost
Motor Frequency (%)
1003020 40
Output Frequency Upper Limit (F06)
50 60 70 80 90 100

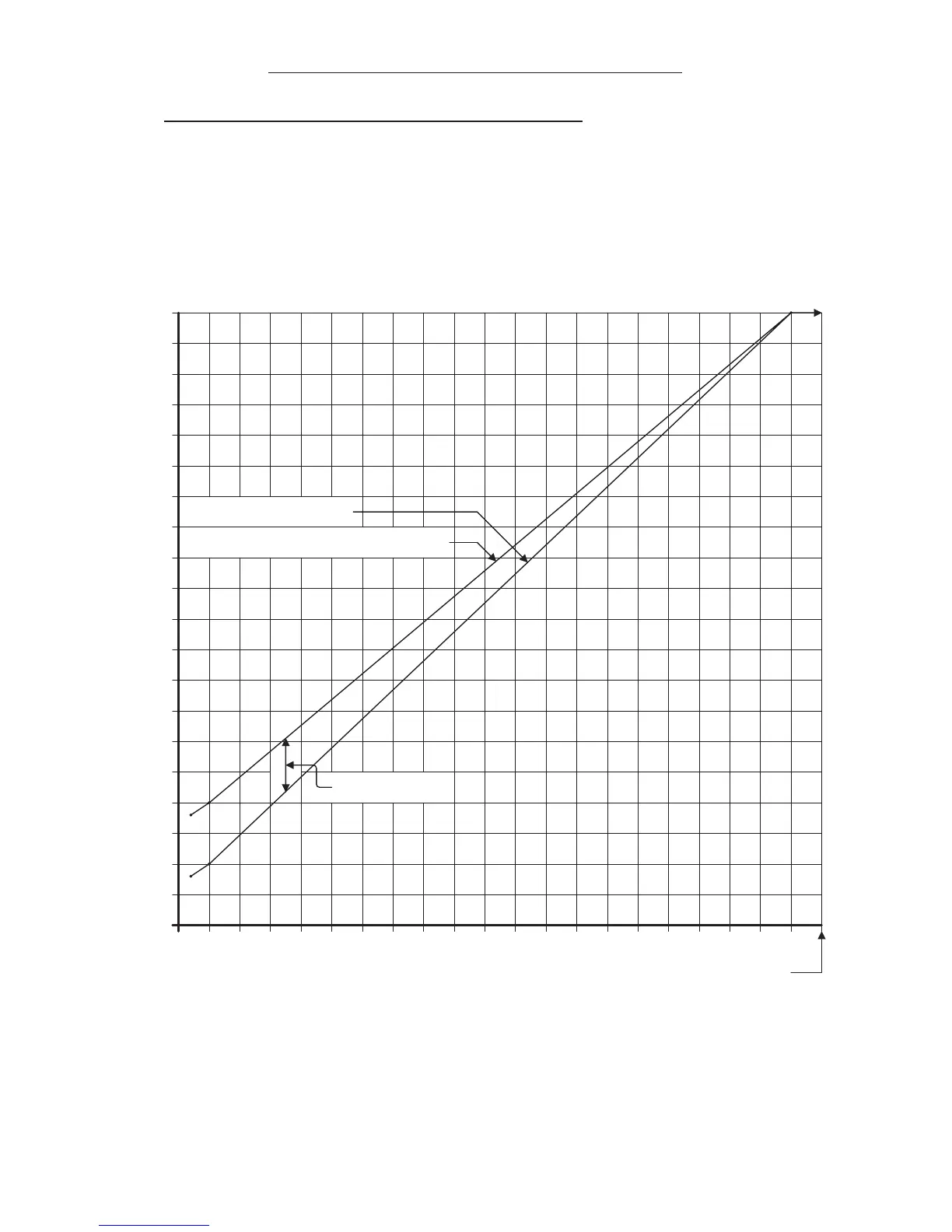

FIGURE 17 – VOLTS/Hz CURVE MODIFICATION (Torque Boost)
