4 x ∅

8.50

216

7.83

199

0.17

4.2

6.69

170

Drive Depth is

5.55

141

4.84

123

DATA

ENT

DSP

FUN

RESET

RUN

STOP

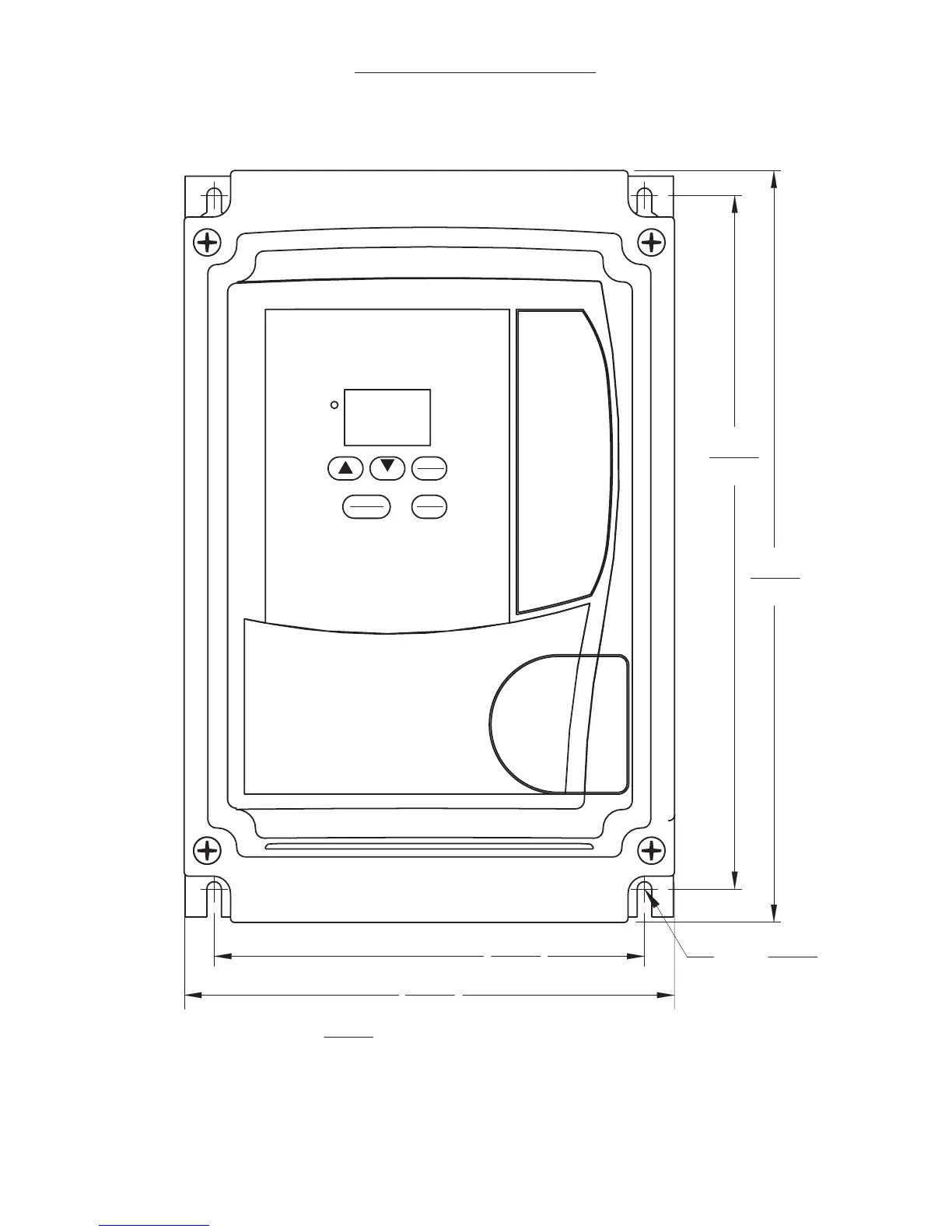

FIGURE 1C – MECHANICAL SPECIFICATIONS (Inches/mm)

for Models KBE2-1125-4, 1150-4, 1101-4, 2101-4 (Pkg. C)

Sec. II – Mounting Inst. (Cont.)

Table of Contents2
Simplified Instructions5
II. Safety Warning6
Safety Warning6
Introduction6
Electrical Ratings9
General Performance Specifications11
Model Number Identification12
- II. Mounting Instructions13
- KBE2-1125-4, 1150-4, 1101-4, 2101-4 (Pkg. C)14
- KBE2-2202-4, 2203-4, 4301-4, 4302-4, 4303-4 (Pkg. C1)15
Mounting Instructions13
III. Reconditioning the Bus Capacitors16
Terminal Block TM1 Wiring Instructions (Power Connections)16
Terminal Blocks TM1 and TM3 Wiring Information17
With 1Φ AC Line Input18
Terminal Block TM2 Wiring Instructions (Signal Connections)19
Terminal Block TM2 Wiring Information19
- External Start/Stop-Forward/Reverse Connection20
- External Frequency Control20
External Start/Stop-Forward/Reverse Open Collector Connections20
External Start/Stop Control Using Function F0320
SW1 Set for Remote Speed Potentiometer or Voltage Following Signal Input . 21 6B. SW1 Set for Current Following Signal Input21
Remote Speed Potentiometer Connection21
Signal Input, F11, and SW1 Setting21
Voltage Following Connection22
Current Following Connection22
Programmable Functions for F19 and F2022
Multifunction Input Terminal Connections23
Multifunction Input Terminal Open Collector Connections23
- Multifunction Output Relay Connection24
- Analog Output Voltage Connection24
Selecting Preset Output Frequency with Multifunction Input Terminals 6 and 723
Multifunction Output Relay and Analog Output Voltage Connections24
VI. Ac Line Fusing24
Recommended Fuse or Circuit Breaker Rating24
Hi-Pot Setup25
Recommended High Voltage Dielectric Withstand Testing (Hi-Pot)26
VIII. Drive Operation26
- Digital Keypad Description26
Digital Keypad Layout27
- Digital Keypad Operation28
Flow Chart to Change Set Frequency (Drive in Stop Mode)29
Flow Chart to Program F01 [Acceleration Time]29
- Programming30
Reprogramming the Drive for 50 Hz Motor Operation30
Function F23, F24, F28 Code Settings32
- All Faults Except AC Power Loss33
- All Faults Including AC Power Loss34
- Programmable Functions (Summary List)36
Programmable Functions (Detailed)39
Volts/Hz Pattern41
Volts/Hz Curve Modification (Torque Boost)43
Controlled Deceleration-To-Stop with DC Injection Braking44
Multifunction Output Relay Operating Modes47
Optional Accessories51
Brake Resistor Selection Chart52
Recommended RFI Filter Connection52
DLM Connections53
AC Load Reactor Selection Chart54
XI. Limited Warranty56
