2. Press the RUN/STOP key to run the drive at the new Set Frequency.
Note: Figure 14
is a flow chart
which illustrates
the sequence to
change and
program the Set
Frequency from
5.00 Hz to 32.1
Hz using the
keypad.
b. To change the
Run Frequency
(drive in Run
Mode): Press
the ▲ or ▼ key
until the desired
frequency is dis-
played.
2. F01 (Acceleration
Time) – Used to set
the acceleration time
of the drive. The
acceleration time
can be changed
while the drive is in
the Stop Mode or
Run Mode. See
Figure 15.
Example: Figure
15 illustrates the
sequence to
program F01 for a
10.0 second accel-
eration time.
a. Press the
DSP/FUN key to
display function
number.
b. Press the ▲ key until “F01” is displayed.
RUN
STOP
Set Frequency
Press to Run the Drive
at the New
is Displayed
Set Frequency
Set Frequency
Flashes
Power On Press to Change
Set Frequency is Displayed
New Set Frequency
DSP
FUN
ENT
DATA
DATA
ENT
FUN
DSP
Acceleration TimePress to Enter Momentarily Displayed
Press to Display
Set Frequency
the New Setting
Flashes
Set Frequency
which Confirms
New Setting
is Displayed
Function Number
Acceleration Time
Setting is Displayed
Function Number
Press 1 Time
to Change
Acceleration Time
Press to Set
Setting is Displayed
New Acceleration Time
is Displayed
Function Number
Acceleration Time
Acceleration Time
Setting
Press to Display
Flashes
Set Frequency
Power On
to Function Number
Change Display
Press to
is Displayed
Function Number

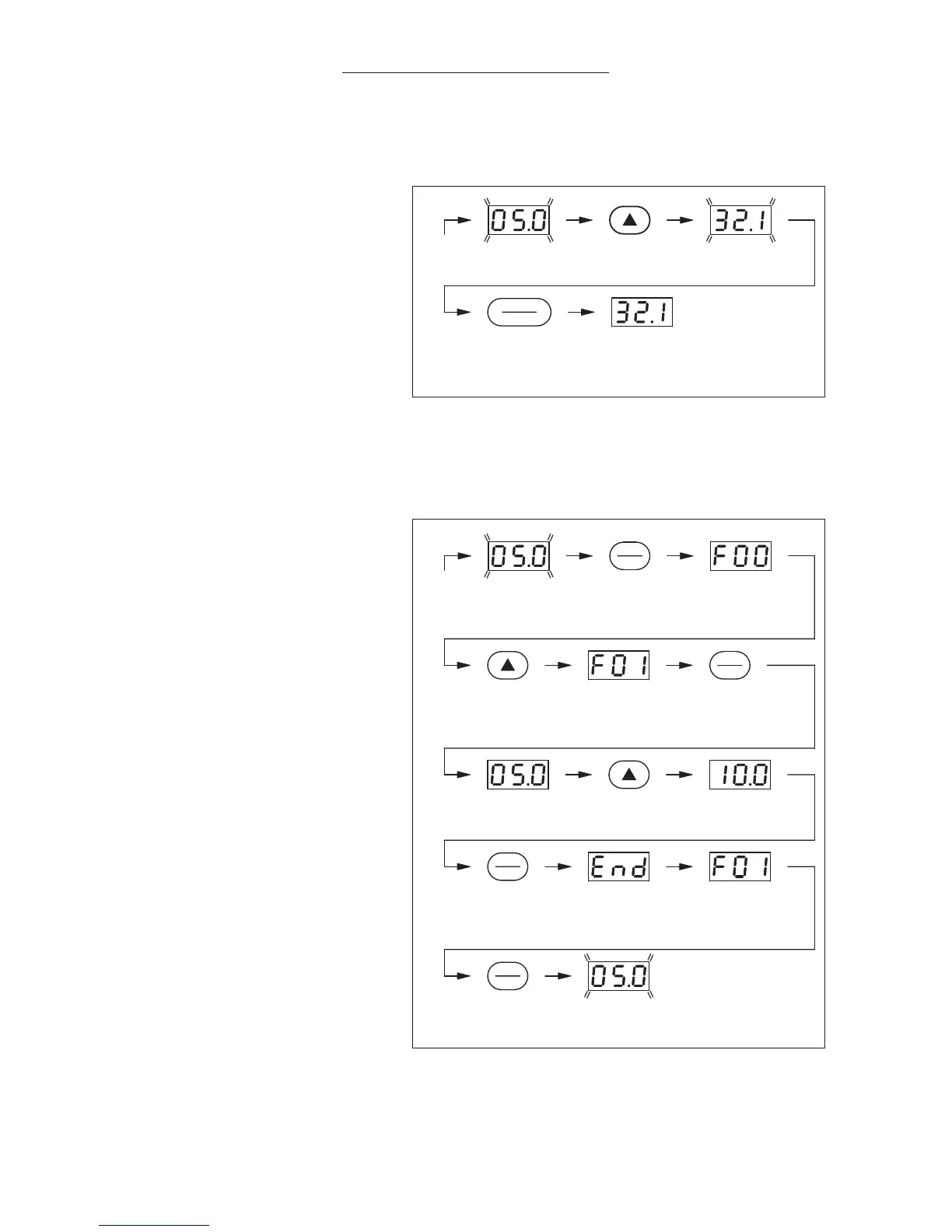

FIGURE 14 – FLOW CHART TO CHANGE
SET FREQUENCY (DRIVE IN STOP MODE)
FIGURE 15 – FLOW CHART TO PROGRAM F01
(ACCELERATION TIME)
Note: In Run Mode, use the Up and Down keys to set the desired
frequency.
29
