July 2019 Service and Repair Manual

Repair Procedures

Part No. 1286829GT S-40 XC • S-45 XC • S-40 TraX • S-45 TraX 31

9 Evenly tighten the nuts, beginning with the

lower center nut, working out and then up.

10 Install the new ribbon cables, connecting the

ground box overlay to the DISCON and

reinstall the DISCON door, using the Torx

head screws removed in step 4. Be sure to

fully lock the tabs after the ribbon calbes have

been fully inserted.

11 Reconnect the wire harness going to the

DISCON, then close and fasten the ground

box lid.

12 Reconnect the negative terminal to the start

battery and auxiliary batteries, if equipped.

1-9

How to Replace the Ground Box

Control Overlay

1 Push in the red Emergency Stop button to the

off position at both the ground and platform

controls.

2 Disconnect the negative terminal from the

start battery and auxiliary battery, if equipped.

3 Open the ground box lid and remove the

switch contacts from the function enable and

E-Stop buttons and key switch. Do not

disconnect the wires. Insert a small

screwdriver into the loop at the base of the

contacts and engage the release mechanism.

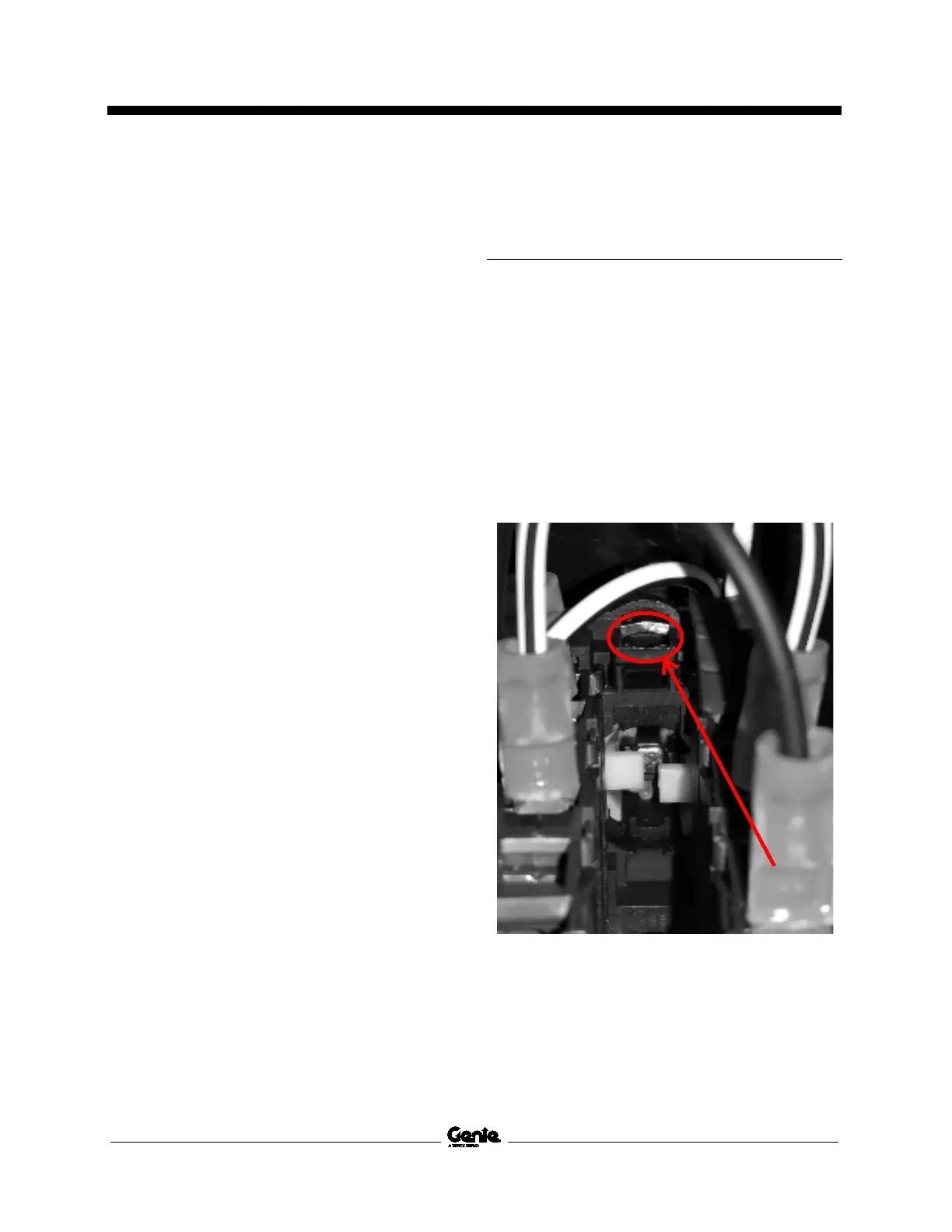

Refer to Illustration 1.

Illustration 1

4 Unscrew the nut holding the buttons and key

switch and remove the key switch and buttons.

Note the orientation of the key switch so it can be

reassembled in the same position.
