July 2019 Service and Repair Manual
Manifolds
Part No. 1286829GT S-40 XC • S-45 XC • S-40 TraX • S-45 TraX 73
7-9

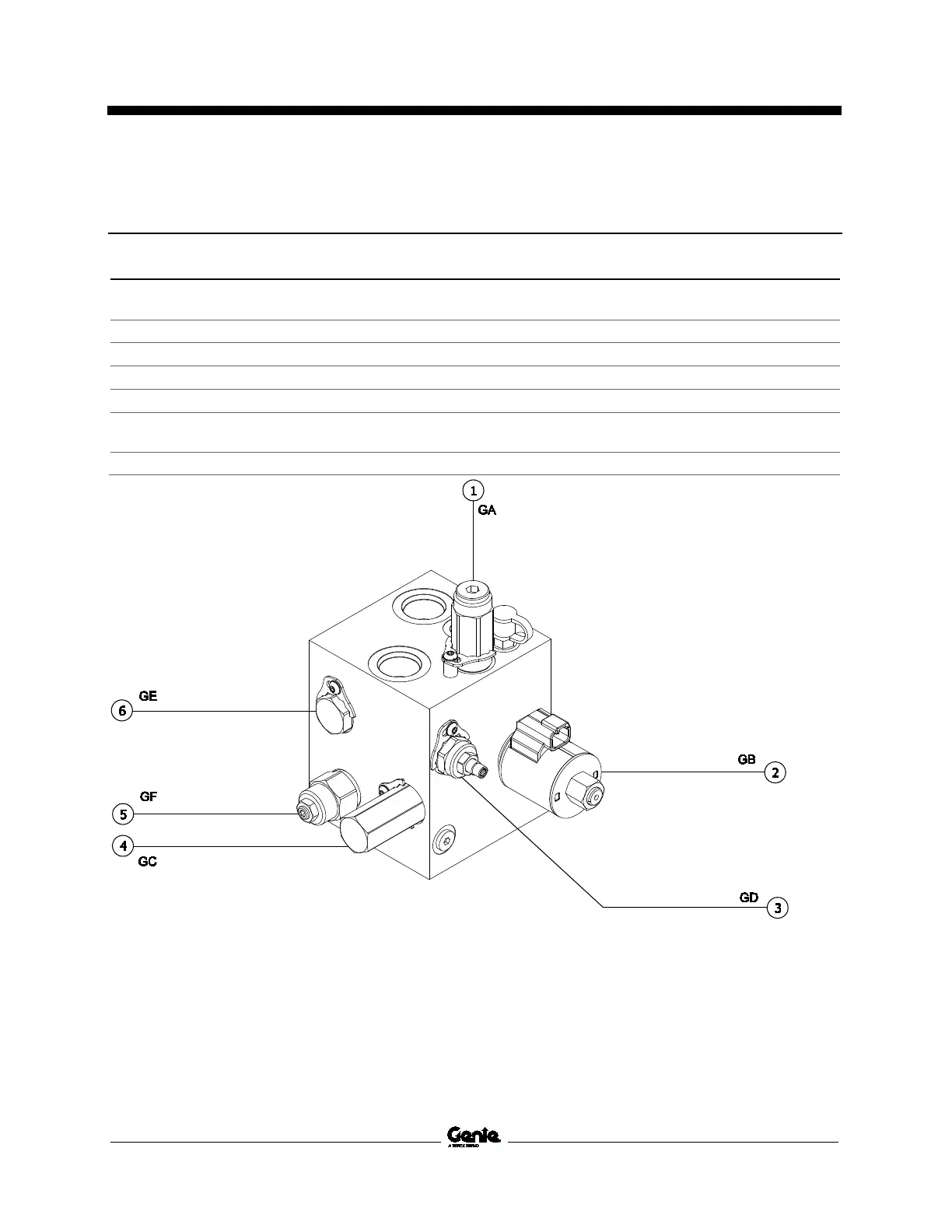

Generator Manifold
The generator manifold is mounted on the turntable tray by the fuel tank.
Index
No.
Description
Schematic
Item
Function
Torque
1
Relief valve
GA
Generator relief valve
50 ft-
lbs / 67 Nm
2
Solenoid Valve
GB
Charge pressure circuit
60-65 ft lbs / 81-
88 Nm
3
Needle valve
GD
Charge pressure circuit
50 ft-
lbs / 67 Nm
4
Differential sensing valve
GC
Pilot valve to diverter valve
50 ft-lbs / 67 Nm
5
Counterbalance valve
CF
Adds backpressure to generator
circuit
6
Check valve
GE
Prevents oil to generator
24-26 ft-lbs / 32.5-
35.3 Nm
