12
GV-BX120D / 130D Series / 140DW / 220D Series / 320D Series /
520D-0

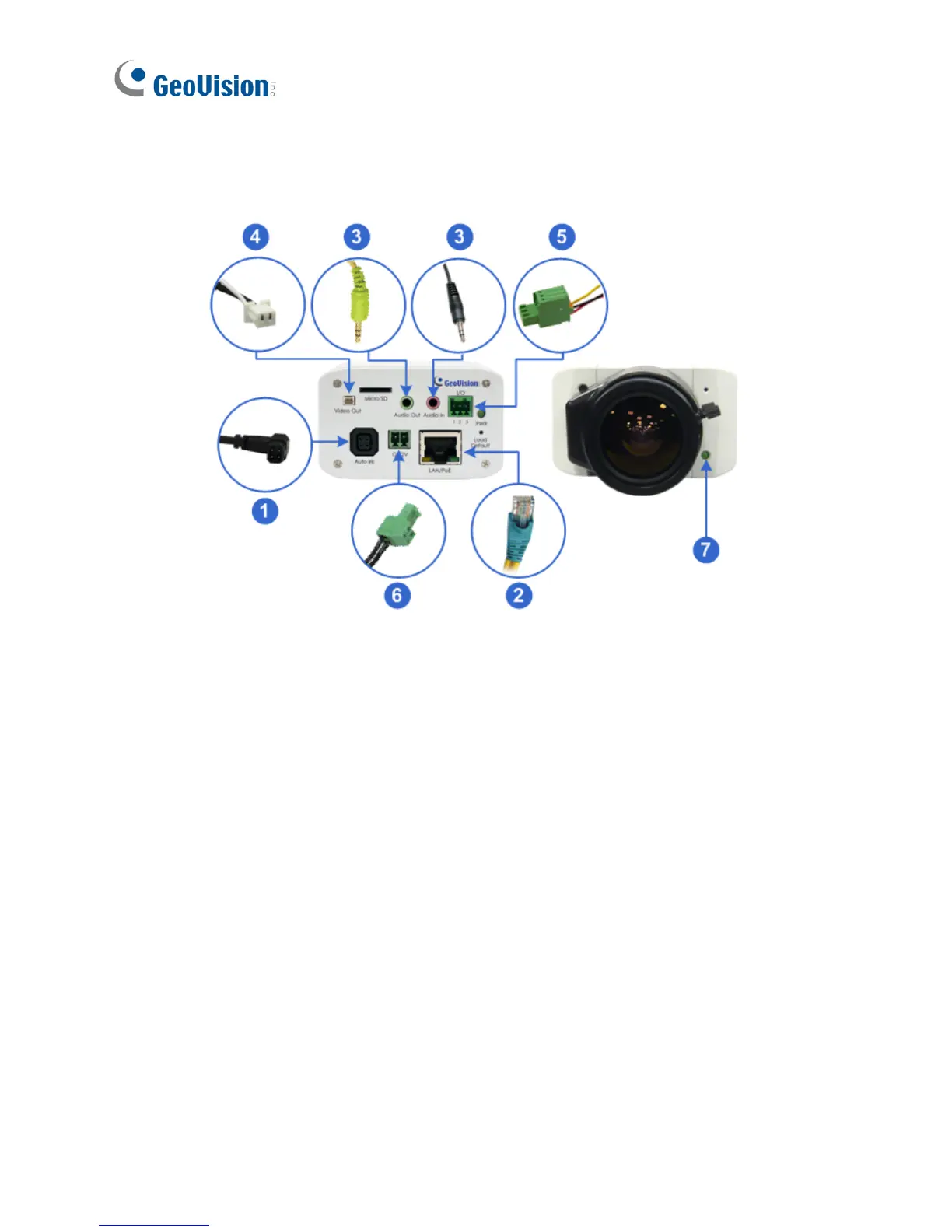

1. If you are using the auto iris model, plug the iris control cable to the
Auto Iris Connector on the camera.
2. Use a standard network cable to connect the camera to your network.
3. Optionally connect a speaker and an external microphone.
4. Optionally connect a monitor using a Video Out wire. Enable this
function by selecting the signal format at the
TV Out field on the Web
interface. See
TV Out setting, in the Video Settings section,
Administrator Mode Chapter, GV-IPCam H.264 User’s Manual on the
software CD.
5. Optionally connect to input / output devices or an infrared illuminator.
For details, see
Infrared Illuminator and I/O Terminal Block, Box
Camera
Chapter, GV-IPCam H.264 User’s Manual on the software
CD.
