GeoVision GV-FD120D Quick Start Guide

72

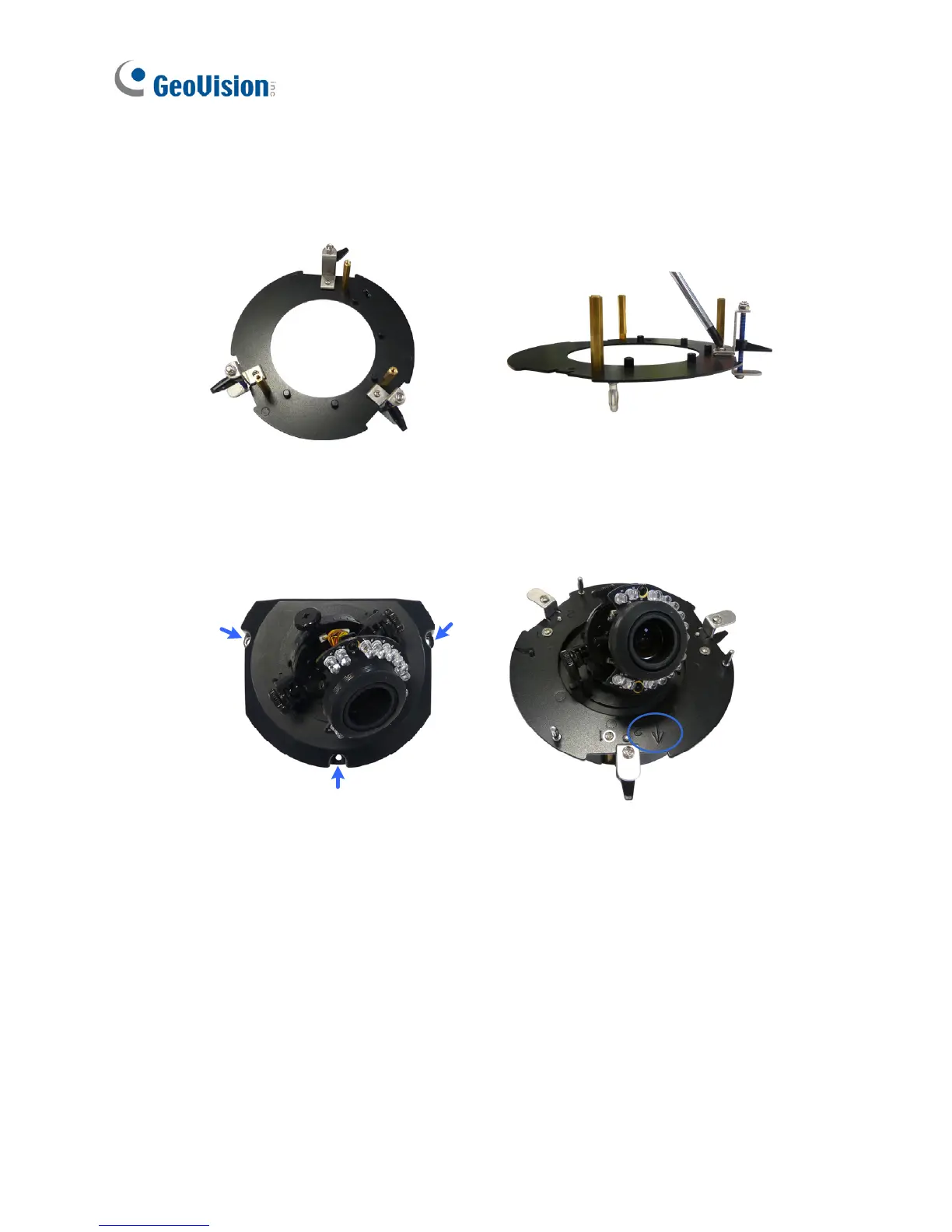

5. Place the 3 mounting brackets at the indent next to the copper pillars
(labeled as 2 on the mounting plate) and secure them using the 3
bracket screws.
6. Place the mounting plate on the camera body with the copper pillars
inserted in the locations indicated below. The arrow on the mounting
plate should be pointing toward the front of the camera.
7. From the bottom of the camera, secure the copper pillars using the 3
copper pillar screws.
8. Place the camera into the ceiling opening.

GeoVision GV-FD120D Specifications

General

Brand	GeoVision
Model	GV-FD120D
Category	Security Camera
Language	English
