Bullet Camera (Part II)

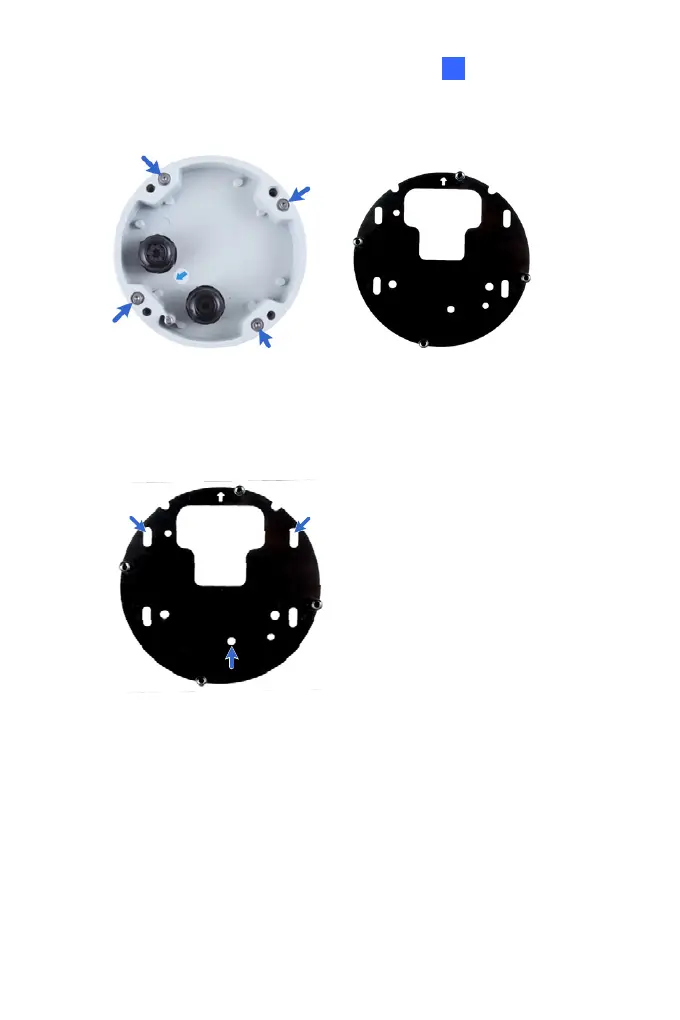

4. Loosen the indicated scre

ws and remove the back plate.

Back Plate

5. Align and secure the black plate to the wall/ceiling with the supplied

self-tapping screws.
