Identifying Hardware Components
CAUTION: When not accessing a connector or device, make sure to close
the cover completely for water-, dust-, and fire-proof integrity of your
device. (Engage the locking mechanism if existing.)

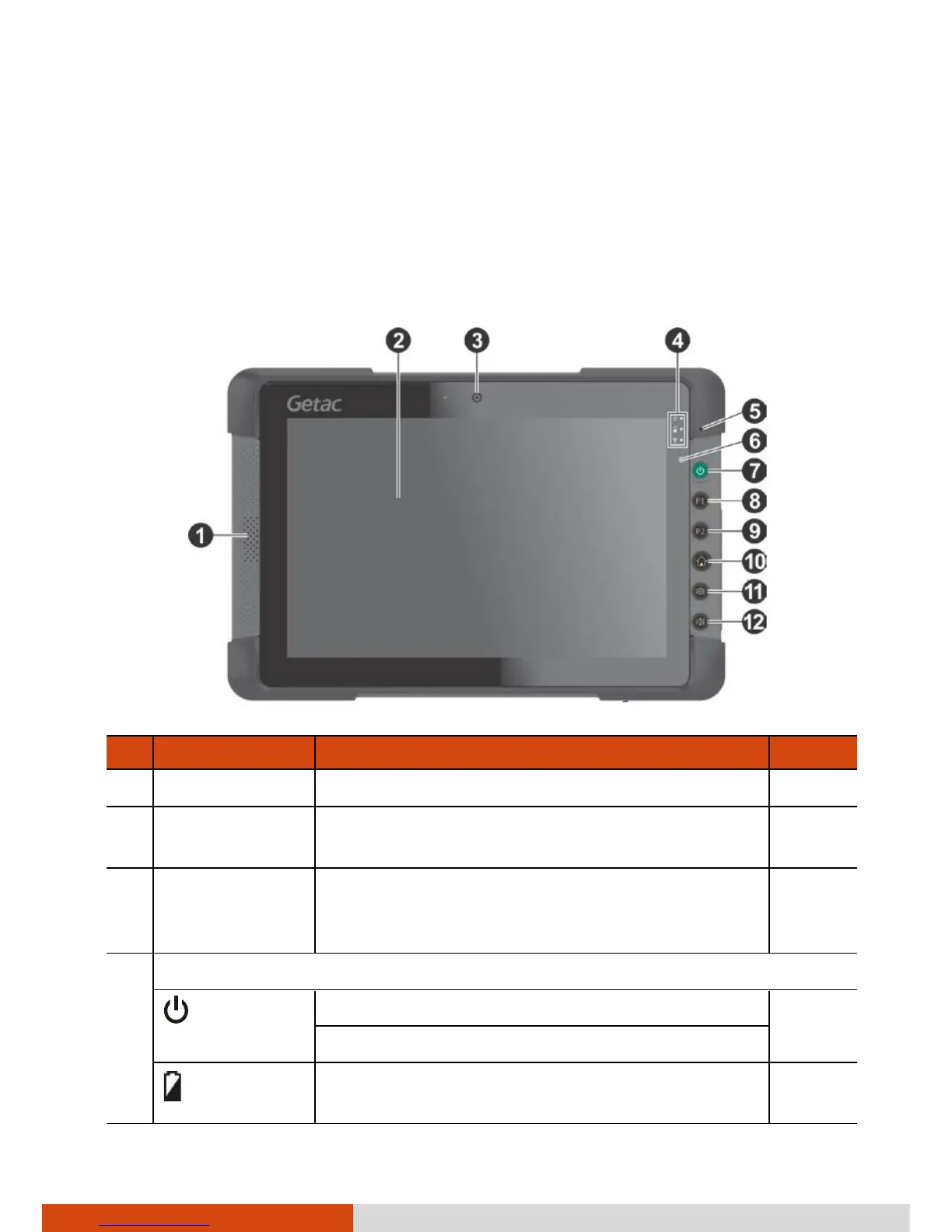

Front Components
Ref Component Description See Also
Speaker Sends out sound and voice from your device.
Touchscreen
Displays and receives information for the
device.
P. 13
Camera Lens
Allows you to use the camera function. When
the camera lens is in use, the indicator beside
it lights up.
P. 25
Indicators
Power
Lights blue when the power is on.
Blinks blue when the system is in Sleep mode.
Battery
Lights green when the battery is fully
charged.
P. 38
