Gigabyte GA-Z87N-WIFI User Manual

- 25 -
Hardware Installation
• ARAID0orRAID1congurationrequiresatleasttwoharddrives.Ifmorethantwoharddrives
aretobeused,thetotalnumberofharddrivesmustbeanevennumber.
• ARAID5congurationrequiresatleastthreeharddrives.(Thetotalnumberofharddrivesdoes
nothavetobeanevennumber.)
• ARAID10congurationrequiresfourharddrives.

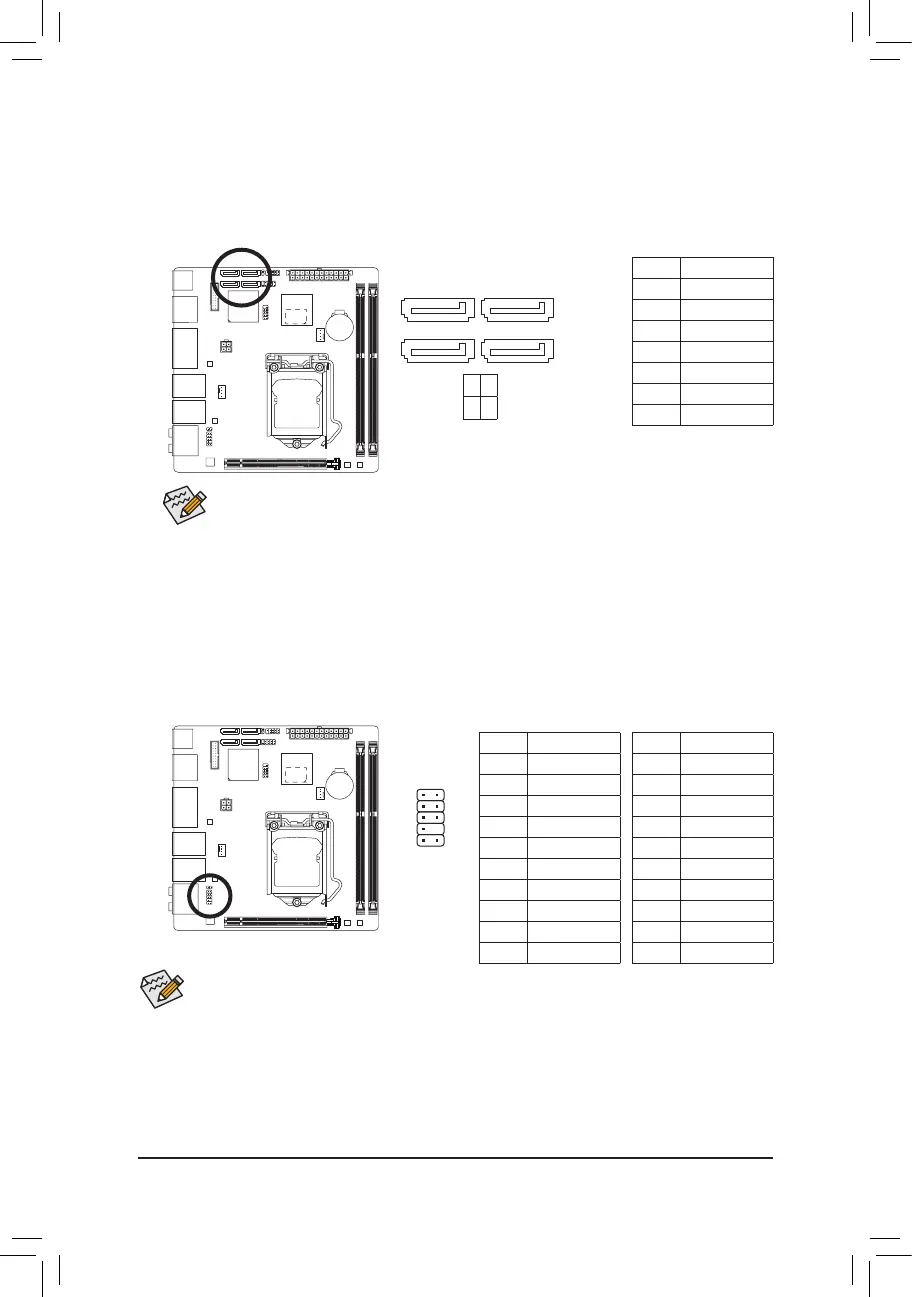

6) SATA3 0/1/2/3 (SATA 6Gb/s Connectors)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA
1.5Gb/s standard. Each SATA connector supports a single SATA device. The Intel
®
Z87j/H87k Chipset
supportsRAID0,RAID1,RAID5,andRAID10.RefertoChapter3,"ConguringSATAHardDrive(s),"
forinstructionsonconguringaRAIDarray.
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
7) F_AUDIO (Front Panel Audio Header)
 ThefrontpanelaudioheadersupportsIntelHighDenitionaudio(HD)andAC'97audio.Youmayconnect
your chassis front panel audio module to this header. Make sure the wire assignments of the module con-
nector match the pin assignments of the motherboard header. Incorrect connection between the module
connector and the motherboard header will make the device unable to work or even damage it.
For HD Front Panel Audio: For AC'97 Front Panel Audio:
• The front panel audio header supports HD audio by default. If your chassis provides an AC'97 front
panelaudiomodule,refertotheinstructionsonhowtoactivateAC'97functionalityviatheaudio
softwareinChapter6,"Conguring2/4/5.1/7.1-ChannelAudio."
• Audio signals will be present on both of the front and back panel audio connections simultaneously. If
youwanttomutethebackpanelaudio(onlysupportedwhenusinganHDfrontpanelaudiomodule),
refertoChapter6,"Conguring2/4/5.1/7.1-ChannelAudio."
• Some chassis provide a front panel audio module that has separated connectors on each wire instead
of a single plug. For information about connecting the front panel audio module that has different
wireassignments,pleasecontactthechassismanufacturer.
Pin No. Denition
1 MIC2_L
2 GND
3 MIC2_R
4 -ACZ_DET
5 LINE2_R
6 GND
7 FAUDIO_JD
8 No Pin
9 LINE2_L
10 GND
Pin No. Denition
1 MIC
2 GND
3 MIC Power
4 NC
5 LineOut(R)
6 NC
7 NC
8 No Pin
9 LineOut(L)
10 NC
1 2
j Only for GA-Z87N-WIFI.
k Only for GA-H87N-WIFI.
9 10
DEBUG PORT
G.QBOFM
DEBUG PORT
G.QBOFM
1
1
7
7
SATA3
0 3
1 2
DEBUG PORT
G.QBOFM
DEBUG PORT
G.QBOFM
