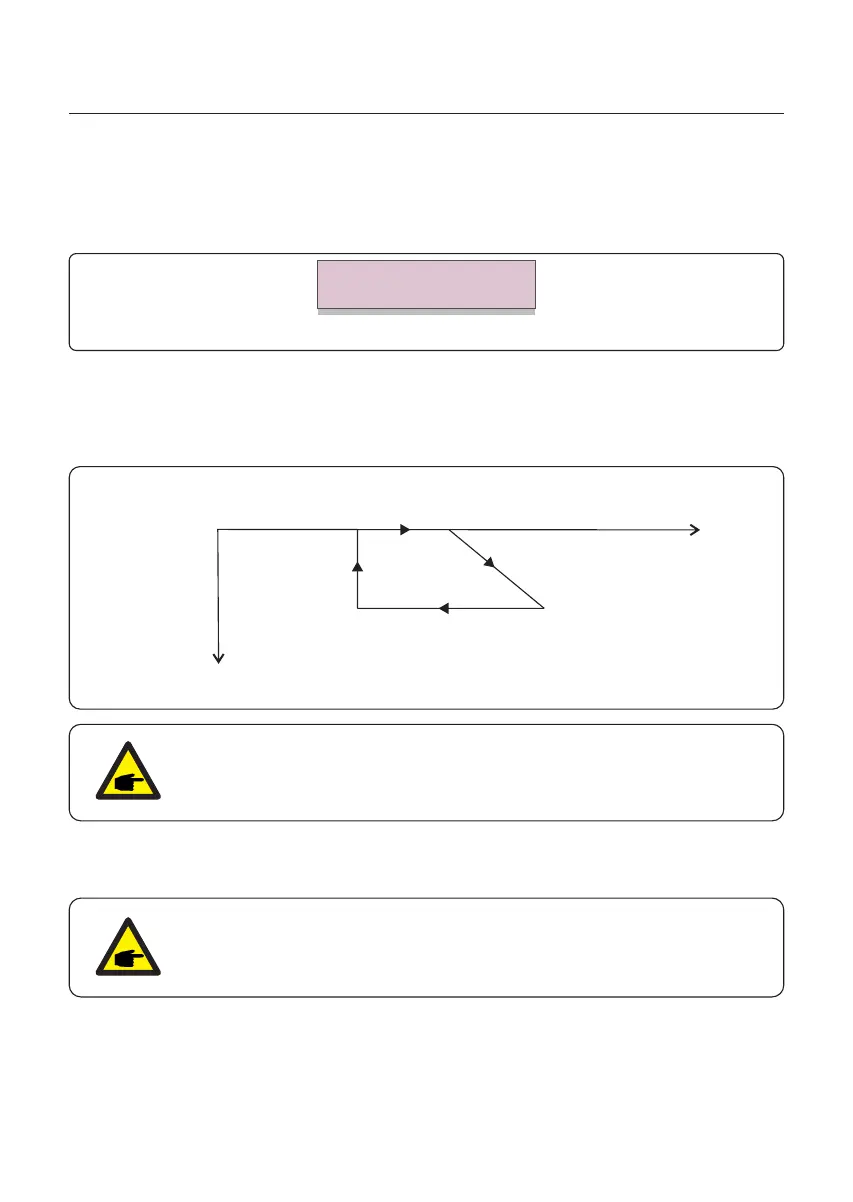

This setting is used to control real power based on the frequency excursion
This setting is applicable when Rule21 Standards are selected.
Start Freq: 60.50Hz
WGradient: 040%
Figure 7.41 Freq-Watt (1)
Start Freq: This is the frequency that active power reduction starts.
WGradient: This is the active power reduction rate in terms of the frequency.
Stop Freq: This is the frequency that stops the correction cycle.
Hysteresis: This indicates whether hysteresis is enabled.
f stop
f start
Reduced
Power
f
Wgradient
Hysteresis
Figure 7.42Freq-Watt (2)
This function is for maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
→
Mode 08 :
7.5.8.4 10mins Voltage Set
This function is disabled and not used for the US.
This function is for maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
